Cable Tray Forming Machine


Cable Tray  Making Machine is a kind of equipment for making cable tray by various material. This Cable Tray Roller Making Machine may produce the cable tray, the different sizes through the replace punching moulds to complete.Forming machine is combined and adjustable.Compared with automatic-change siezs cable tray roll forming machine, this machine is more cost-dffective.One set of combined rollers complete all cable tray products, the change size through adjust distance of rollers to complete.

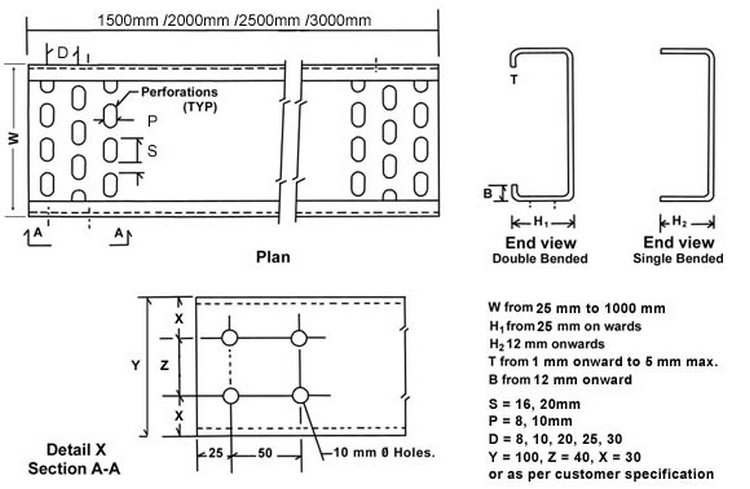

take a random drawing for your reference

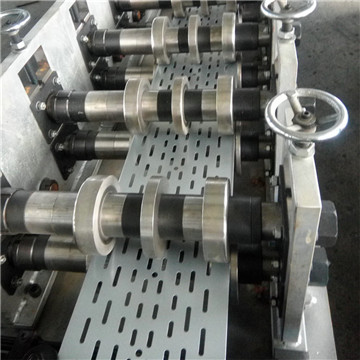

cable tray making machine

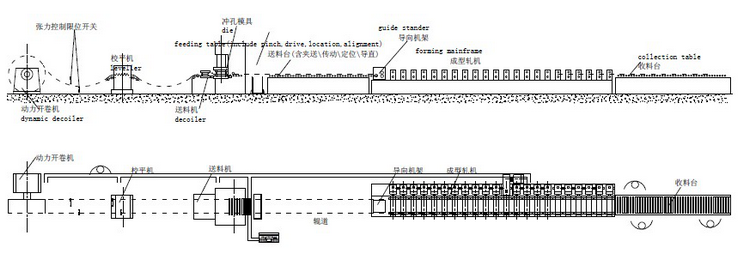

working flow of cable tray making machine

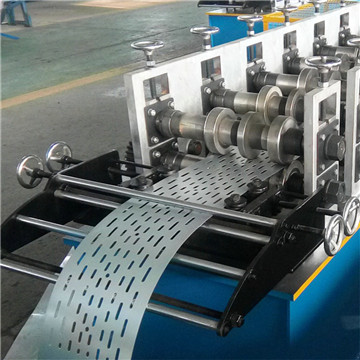

cable tray making machine

technical parameters of cable tray making machine

Raw material Galvanized
Thickness 0.3-0.8mm
Inner Diameter:450-550mm Expand by manual
Outer Diameter: max 1500mm
Max Coil width:300mm
Capacity: 1.5T
Main Forming
Forming steps 10 rollers
Shaft diameter 40mm
Design type Memorial arch
roller material GCr12MoV steel
shaft material 45# steel
Work speed 0-25m/min
Transport By gear
Power of main machine 3kw
Type of cutting Hydraulic
Cutting tolerance ±1mm
Cutter Gcr12
Cutter quantity 1 set
Working pressure 20MPA
Punching machine Holes punching machine 1. Mould material: Gcr12
2. Power supper: Hydraulic Station
Hydraulic oil 46#
Hydraulic power 3kw
Cutting length As required
No distorting or wasting. High level safety factor.
Control Device
control By PLC
PLC language English  (or as required)
Brand Generally Delta, or as your requirement

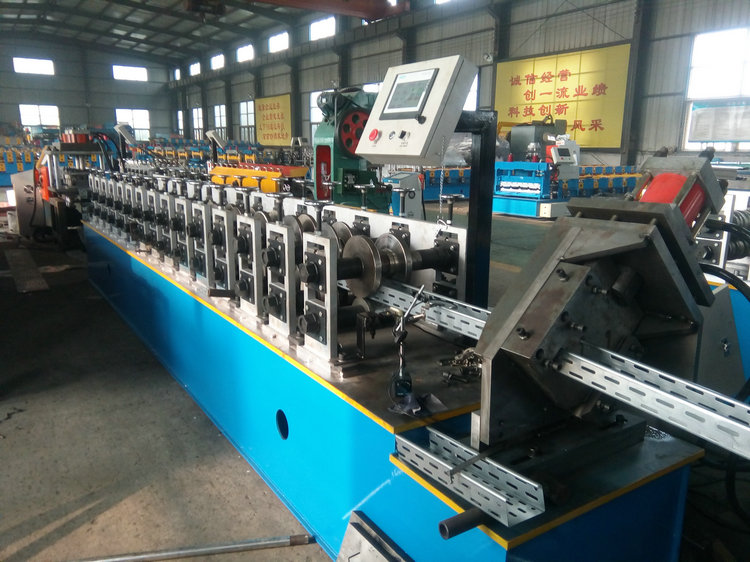

cable tray making machine
