Double layer metal steel roof sheet roll forming machine


The double layer roll forming machine can produce two profile sizes:
Trapezoidal profile& corrugated profile
Trapezoidal profile& glazed tile profile
Corrugated profile& glazed tile profile

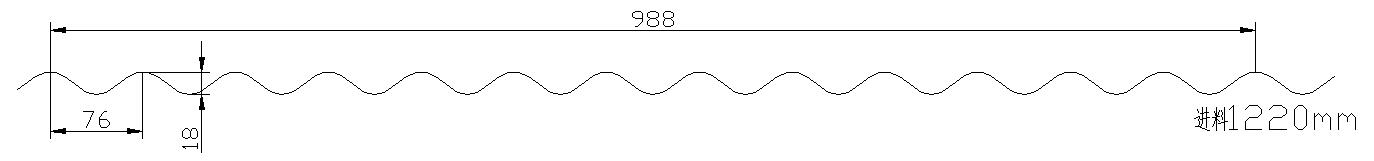

Corrugated profile:
Double layer metal steel roof sheet roll forming machine

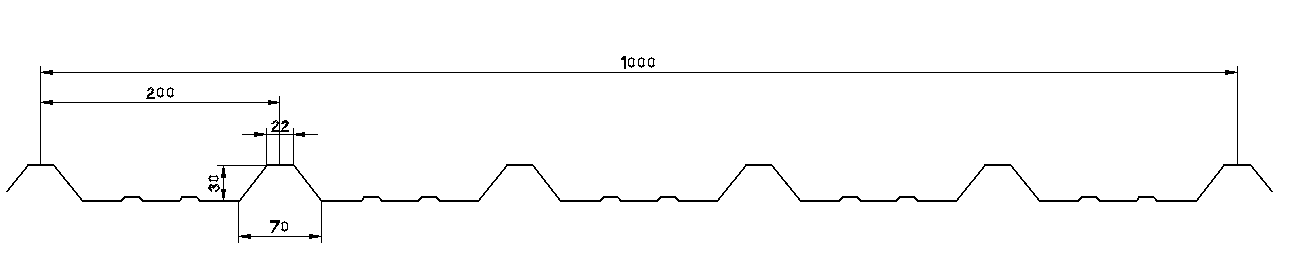

Trapezoidal profile:
Double layer metal steel roof sheet roll forming machine

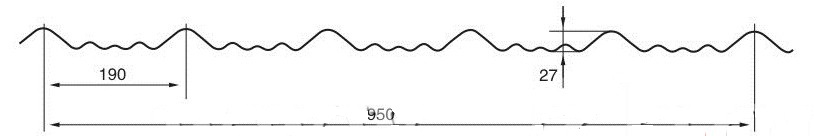

Glazed tile profile:
Double layer metal steel roof sheet roll forming machine

Remark:
We can follow your requests to make the machine, the profile drawings we displayed here are the model type.
Other profile sizes are also available for us.

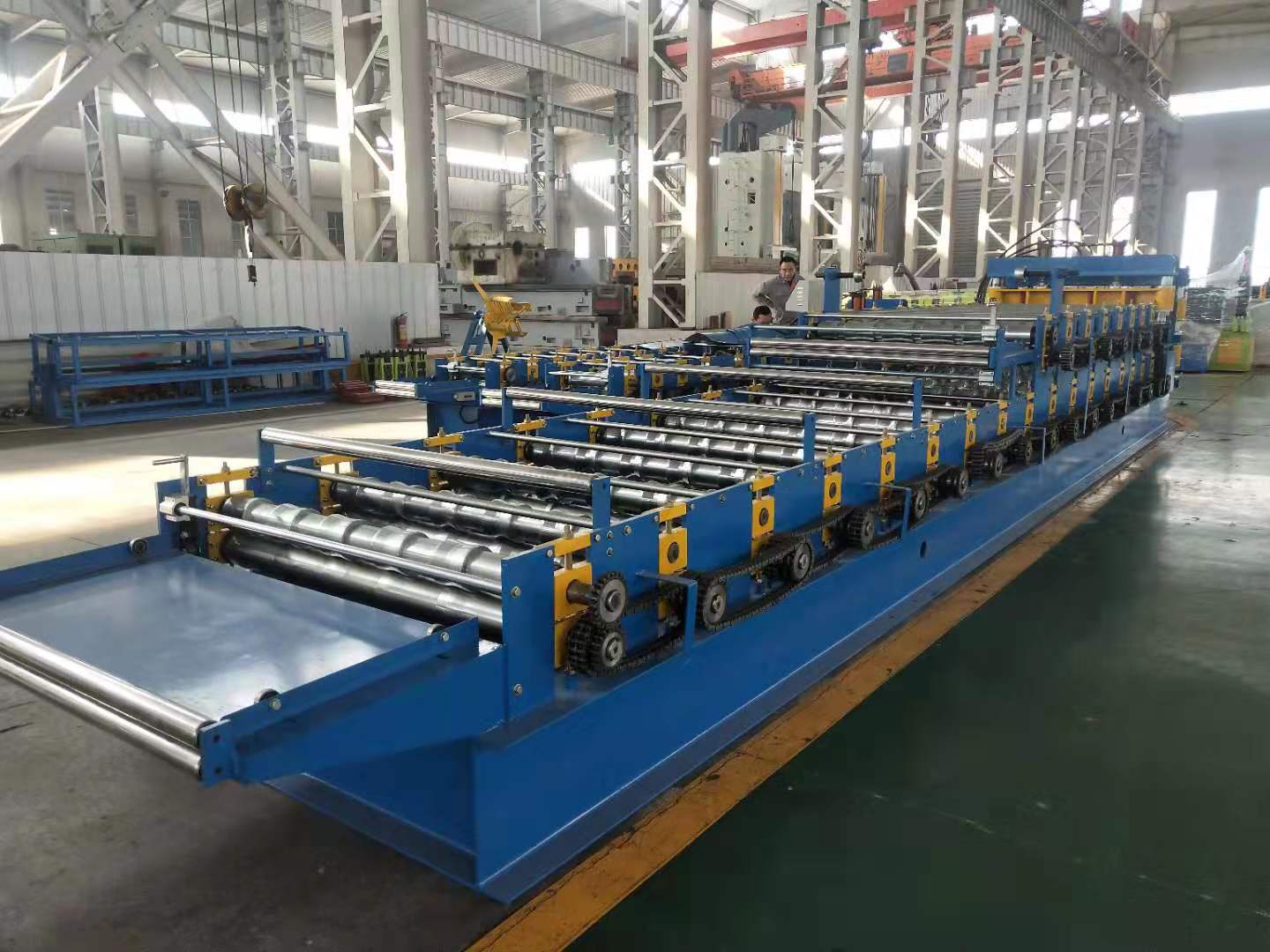

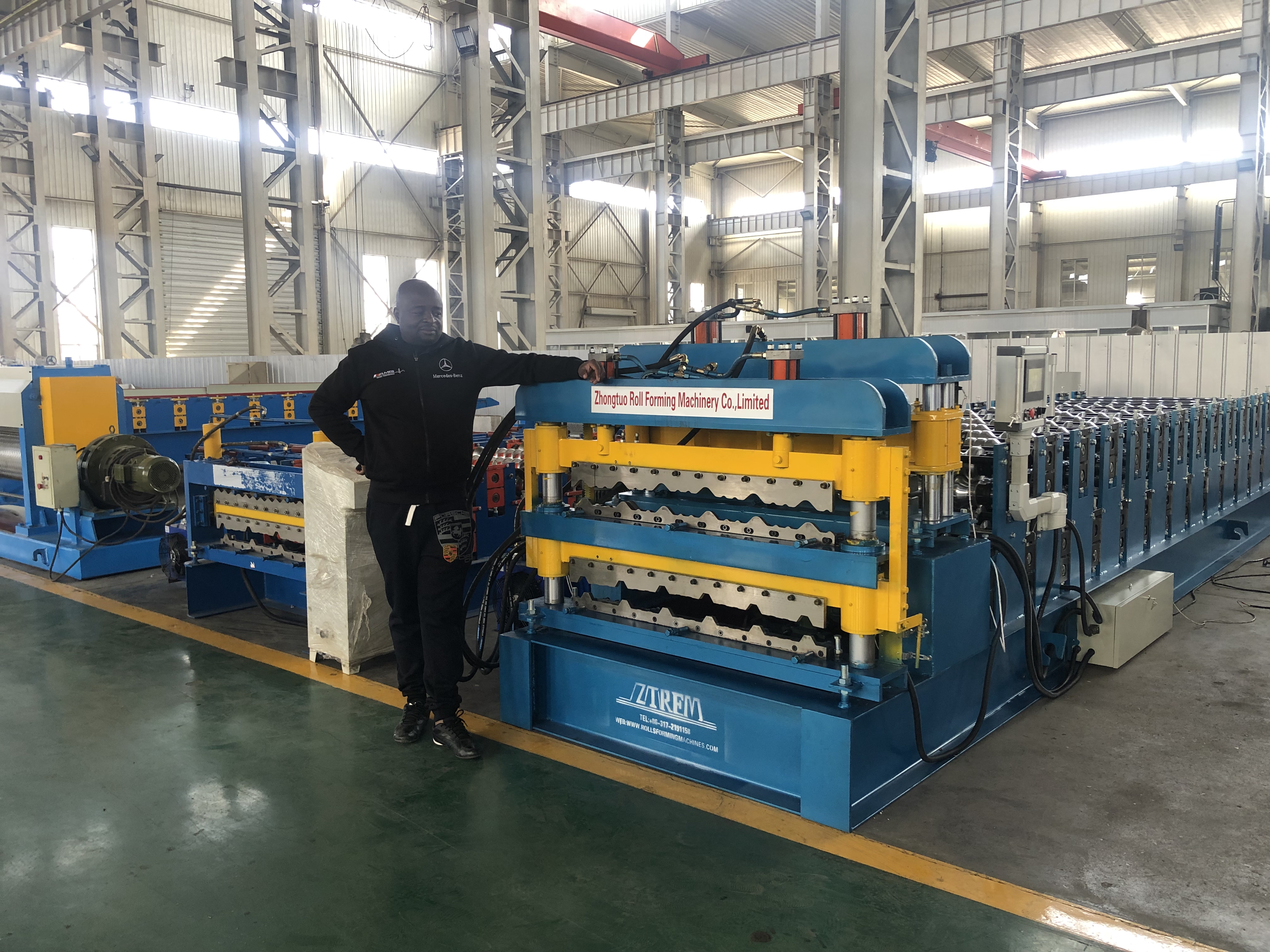

Here we see the double layer machine on the picture, this machine can produce the glazed tile sheet and trapezoidal profile sheet.

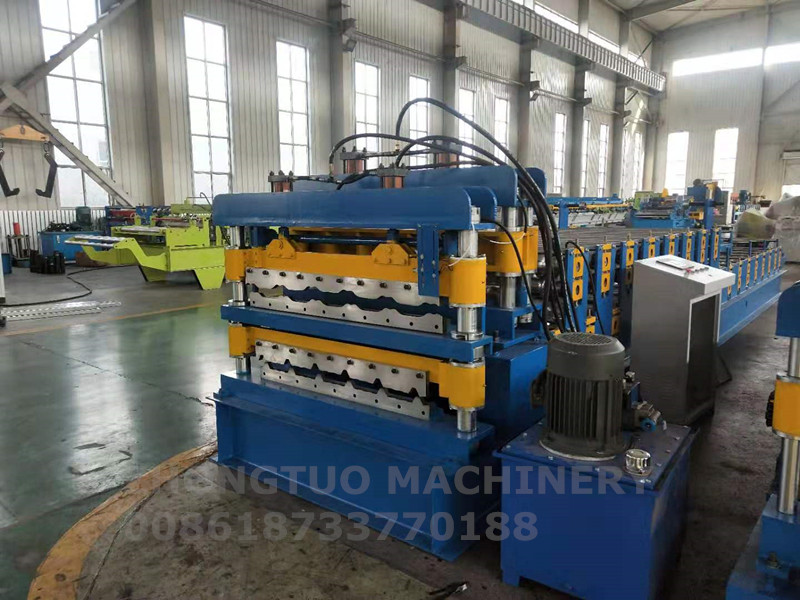

We adopt the hydraulic pillar design concept for the cutting system and step press system.
The advatange of the concept is that the pillar type frame can balance the hydraulic power and make the cutting incison more neat.


Double layer metal steel roof sheet roll forming machine Double layer metal steel roof sheet roll forming machine

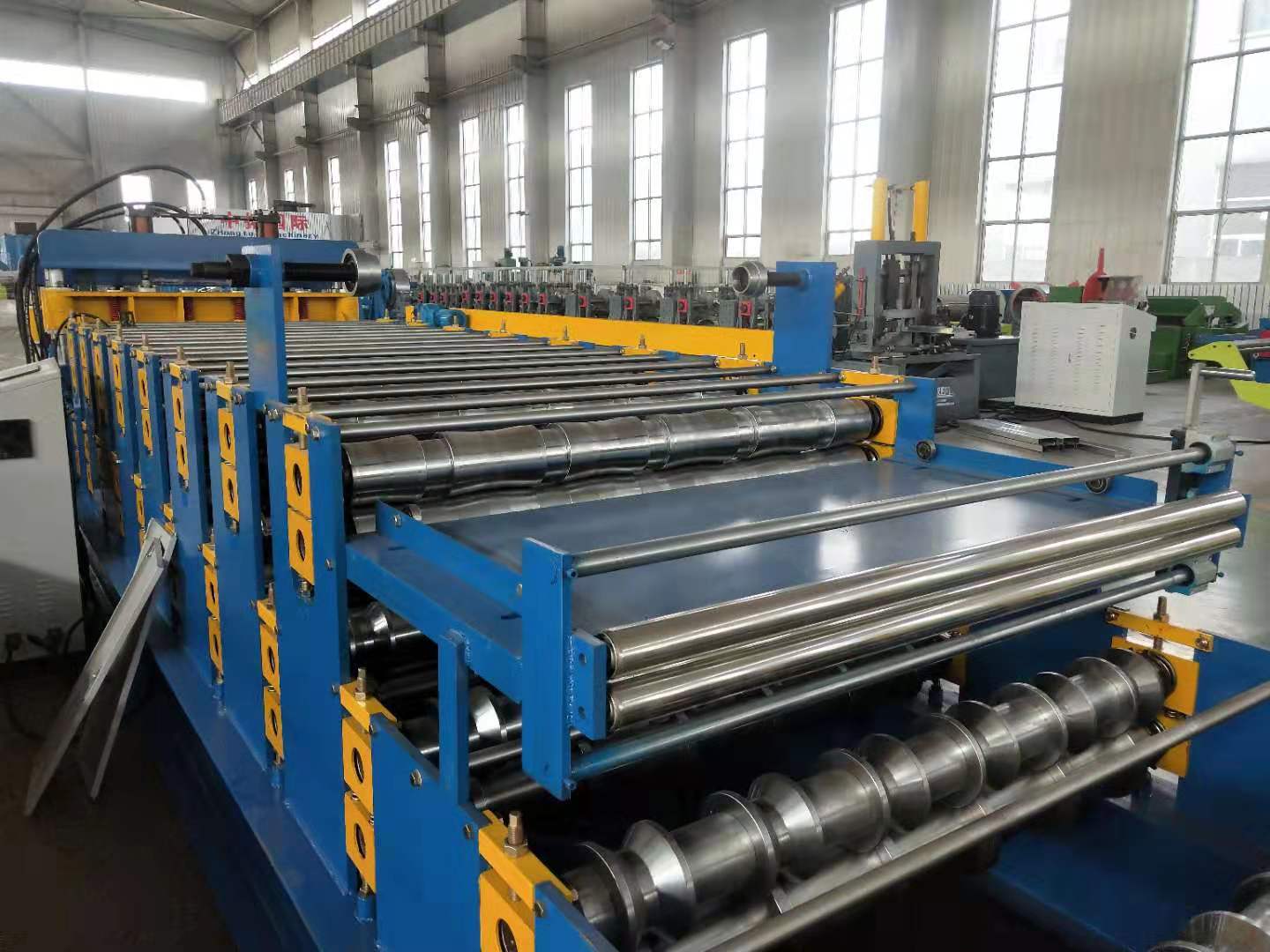

Now let's see the roll forming system, all the rollers, spacers and the pull rob are chromed treatment.
The chromed treatment can improve the hardness and anti corrosion or rusty
The encoder brand is Omron, it's a very famous brand.
It's so important for the cuttting length counting.

Double layer metal steel roof sheet roll forming machine Double layer metal steel roof sheet roll forming machine

Double layer metal steel roof sheet roll forming machine Double layer metal steel roof sheet roll forming machine

Considering the convenience of the operation, we adopt the vertical control station which will be fixed on the machine.
The worker can stand in front of the station and set up the orders on the control panel.

The elements of the double layer roll forming machine:
1. 5 tons manual decoiler two sets

2. hydraulic oil pump station one set

3. product receiving table one set, the table height is adjustable

4. control system

5. main forming machine one set with two layers

6. spare parts: relay, fuse, gear for chains, oil tube


The specification of the double layer roll forming machine:
1. Feeding width: 1220mm (or as required)

2. Effective width: depends on the profile drawing

3. Rolling station number: 18 stations

4. Driving motor power: 5.5kw

5. Hydraulic motor power:5.5kw

6. Control system brand: Delta or Siemens or Mitsubishi


7. Voltage: (415-440)V-50HZ-3Phase

8. Roller treatment: chromed

9. Shaft diameter: 80mm

10. Transmission: by chains

Service:
1. We have showroom in Mumbai of India, the after sale service will be free in lndia.
2. The customer will bear the accommodation for our technician if the work cannot  finish one day
Double layer metal steel roof sheet roll forming machine

contact:
contact person: June Wang
Whatsapp/wechat: 008615127778288


Double layer metal steel roof sheet roll forming machine



Previous:Double layer roof sheet roll forming machine
Next:Roof construction system aluminum ppgi zinc double layer gla
