Chile popular profile double layer m

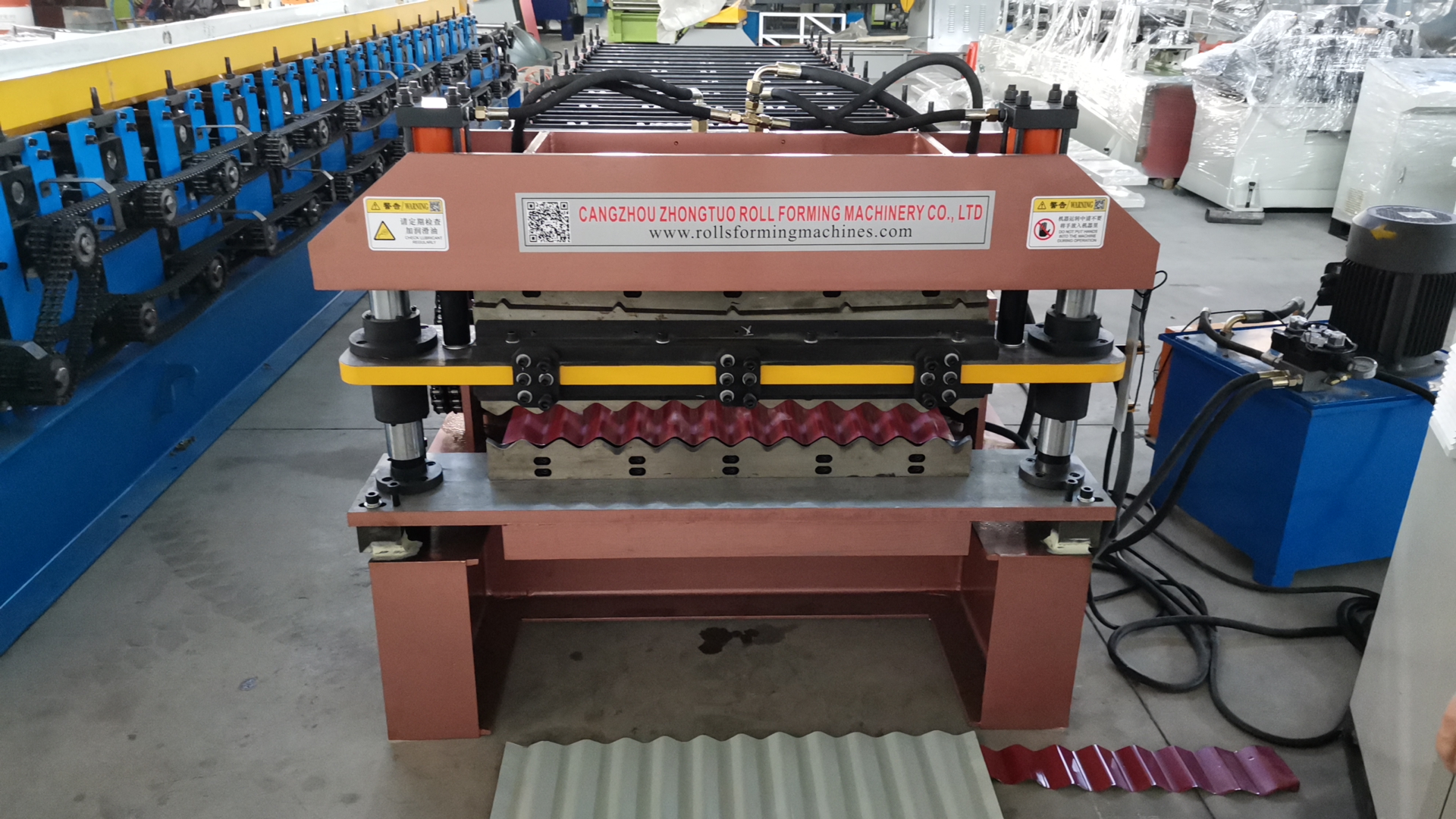

5v profile corrugated roof sheet double layer machine can produce 5 V profile and corrugated roof sheet.
Which the two profiles are quite popular in Chile market, especially for 5 V profile.
As you see, up layer produce 5 V profile, donw layer produce corrugated profile.
The two layers can not working together, because they use one set hydraulic oil pump station.
But the advantage is double layer roof sheet machine can save much space and freight.
The machine details can be customized according to your request, for example voltage, electric parts brand,colour.
5V profile corrugated roof sheet double layer machine work flow:
Uncoiling---Feeding the material into machine---Roll forming---Hydraulic cutting---Product received table
Chile popular profile drawing:
5V profile, this profile have 5 waves, the effective width is 840 mm, feeding width is 940 mm.
Corrugated roof sheet, effective width is 760 mm, feeding width is 1000 mm.
Technical parameters:
| Main motor power | 5.5 KW |
| Roller material | 45# steel with chormed treatment. |
| Roller shaft material | 45# steel with quenched treatment. |
| Work speed | 8-15 m/min |
| Length of the part | 7500*1650*1500mm |
| Structure | Middle plate welded frame structure |
| Frame | 350 H steel with diagonal bracing |
| Transmission | By double chains drive methord |
| control method | PLC control system |
| PLC | Delta Chinese good brand for good using |
| Frequency | Delta Chinese good brand for good using |
| PLC control system function | Contrrol the speed, cutting length, cutting quantity |
| Hydraulic station | 4.5 KW with cooling fan system |
| Cutting method | Hydraulic cutting |
| Cutter material | GCr12 chromed and quenched for good hardness and using |
The machine need one 40ft container to loading, to save your freight,
we also can help you purchase some coils for you loading together with machine.
The loading photos like this
