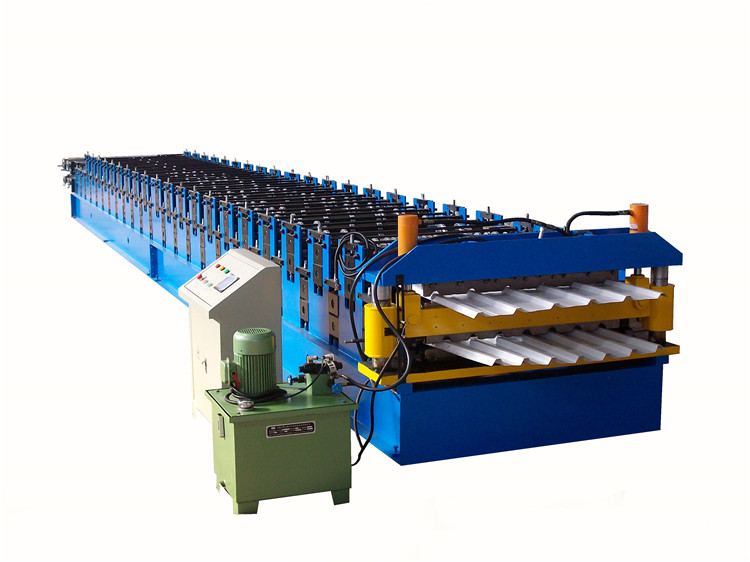

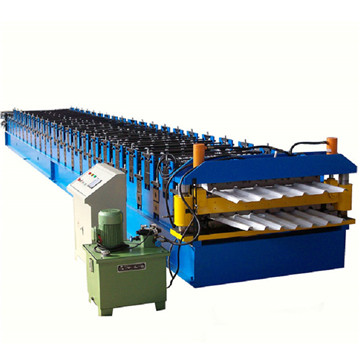

double layer metal roof tile machine

This double layer metal roof tile machine is for the demand of getting more types of sheets in limited space. Trapezoidal sheets ,corrugated sheets and glazed tile sheets, you can choose any two of them on one machine.
In order to discharge the double sheet, the machine has two layers. And the final cutting system can remove up and down to adapt the height of two layers.One roller stations installed on the bottom and the other roller stations for another sheet installed on the top. Change between up and down can get two kinds of sheet. The producing line has one PLC control system. Only one layer stops working,then the other layer begins.
This machine adopts middle plate structure, chain driving and hydraulic cutting method.It is the most popular one among customers.
Machine could be designed in many methods:
machine frame: middle plate structure and memorial arch structure
Driving: chain, gear, and gearbox
Cutting power: hydraulic cutting and electric cutting

Double Layer Roll Forming Machine

double layer metal roof tile machine
