metal steel downspout rolling forming machine

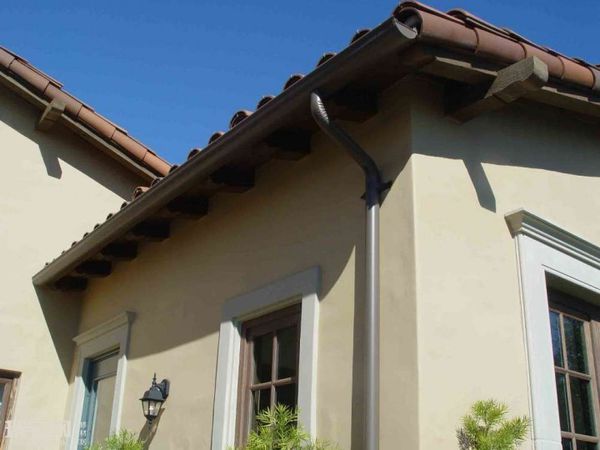

The main function of the roof downpipe is to concentrate the rainwater on the roof to a place,
and then use the pipes and pipe holes to timely discharge the rainwater to the downpipe.
The function of the roof drain pipe is to prevent the rainwater from accumulating on the roof
after the water pipe is blocked, which causes the roof to be overloaded and affects the structural safety.
At the same time, it also reduces the probability that the roof will increase the leakage due to the accumulation of water.
so the main use of downspout is to Collect roof rainwater and concentrate it on the rainwater pipes laid below the ground

1. the material of downspout
A. Metal pipe (such as cast iron pipe, color aluminum pipe, copper pipe, etc.)
B. plastic pipe (such as PVC pipe, etc.)

The downspout forming machine of ours only can make the metal pipes, such as the round pipe and square pipe.
Here we can recommend the regular size of downspout, and please noted that one machine only can one size.

2. The regular size of downspout
Round pipe:
40mm、 50 mm、75 mm、90mm 、110mm 、150 mm、200 mm、250 mm、
315 mm、400 mm、500 mm

Square pipe:
80mm*55mm,80mm*63mm,80mm*100mm

metal steel downspout rolling forming machine metal steel downspout rolling forming machine

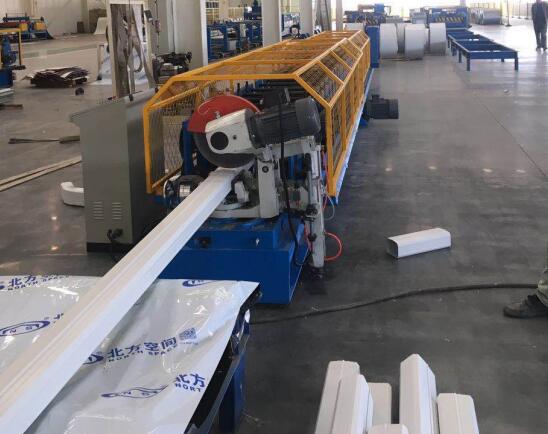

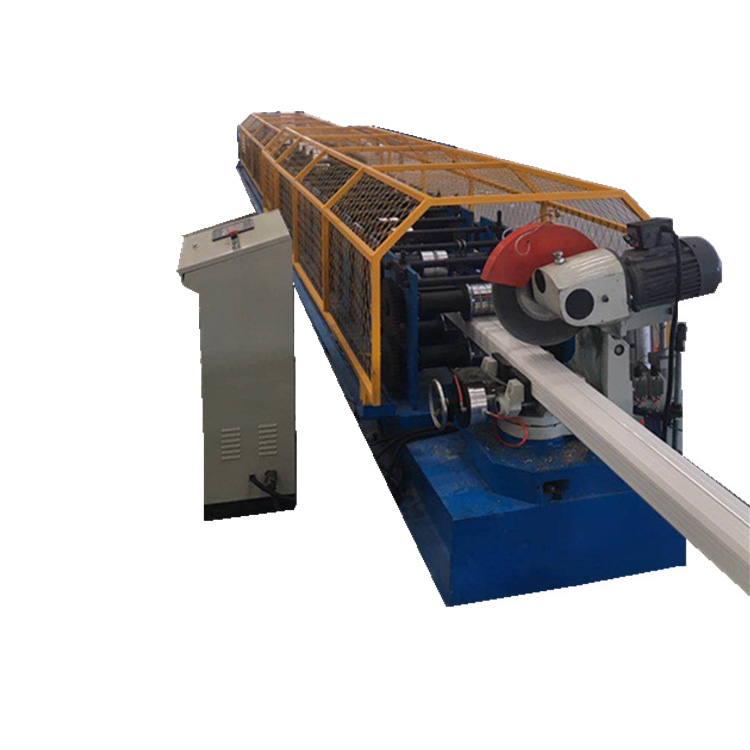

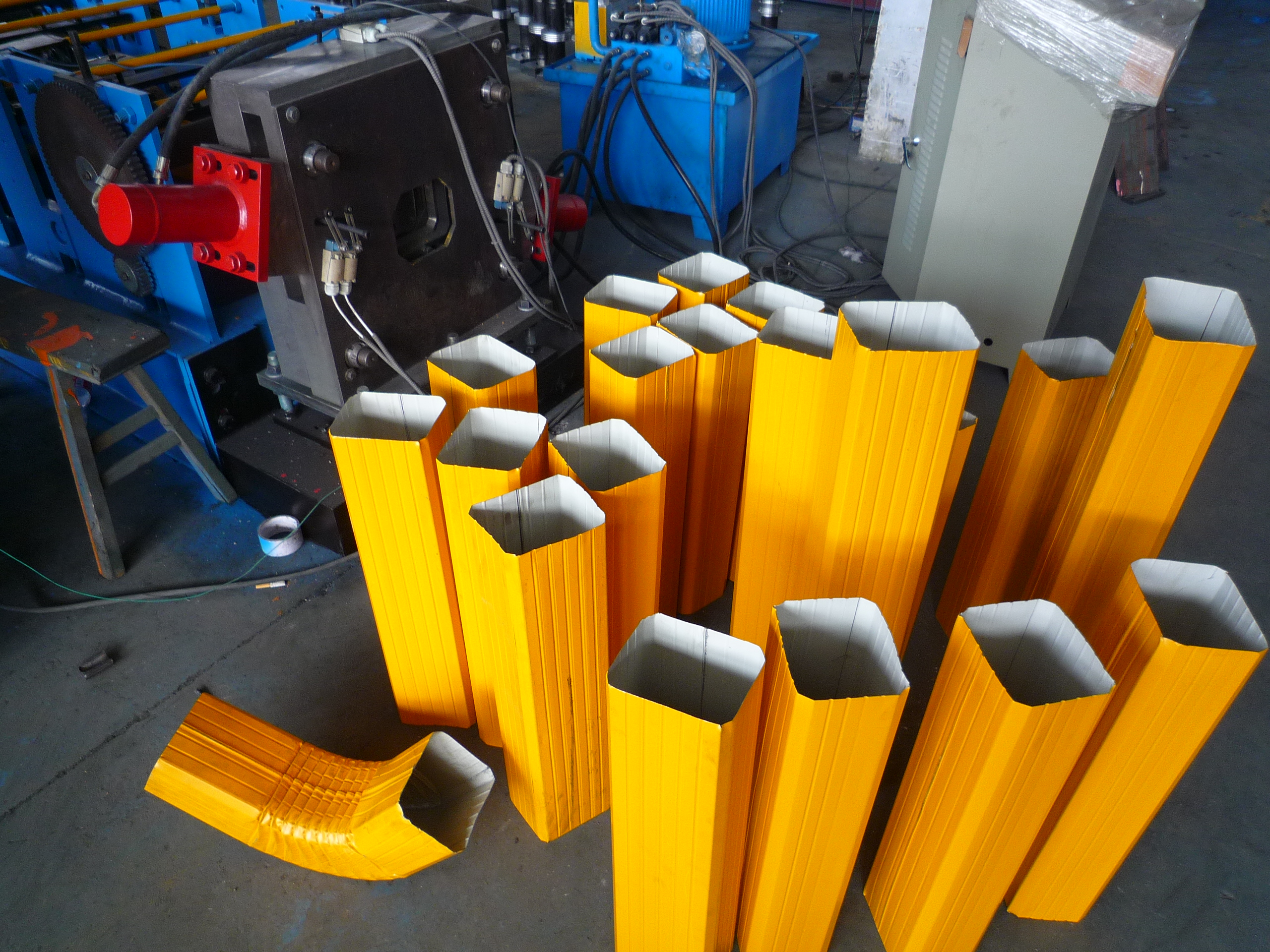

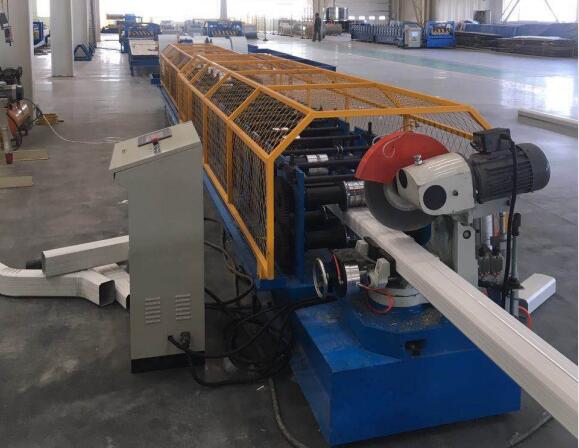

3. The picture of downspout forming machine
This machine can produce the square downspout and we adopt the flying saw cutting system duo to the shape.
The original material is flat and the machine can forming to the square shape, and the two edges will be seaming together.
The seaming work is also done in the forming system.
metal steel downspout rolling forming machine metal steel downspout rolling forming machine

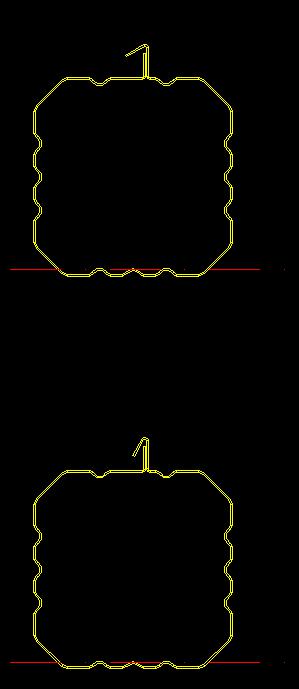

4. How to form the square downspout

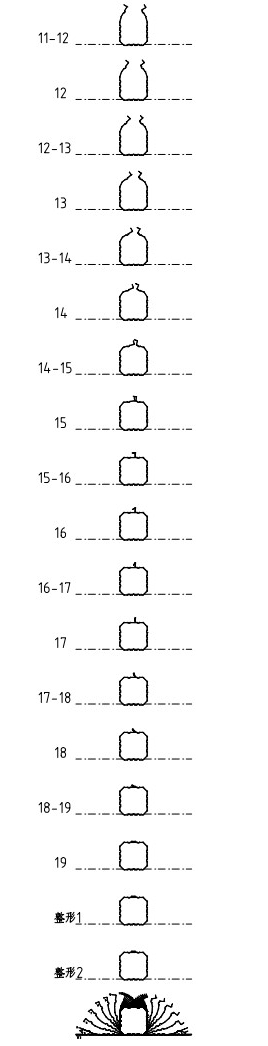

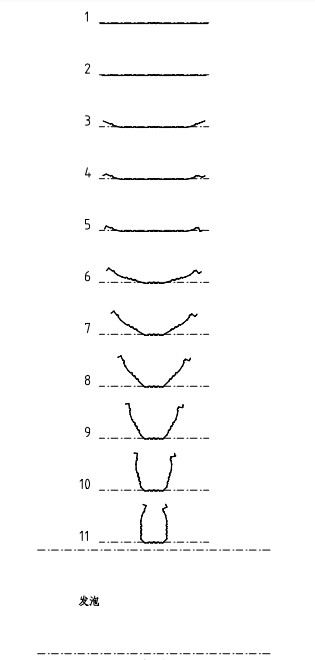

We have the drawing for downspout forming process, you can understand well and see clear how to make it.
Please see the drawing as below:
metal steel downspout rolling forming machinemetal steel downspout rolling forming machine

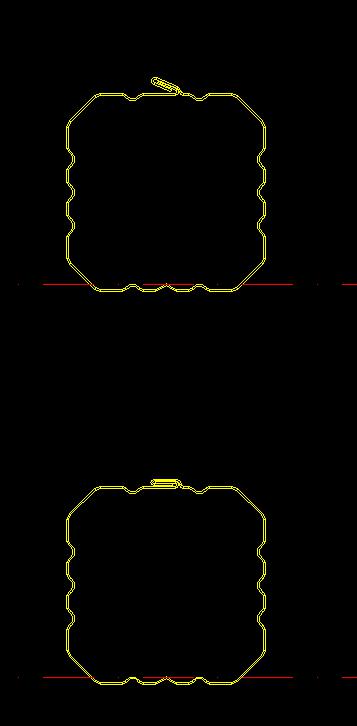

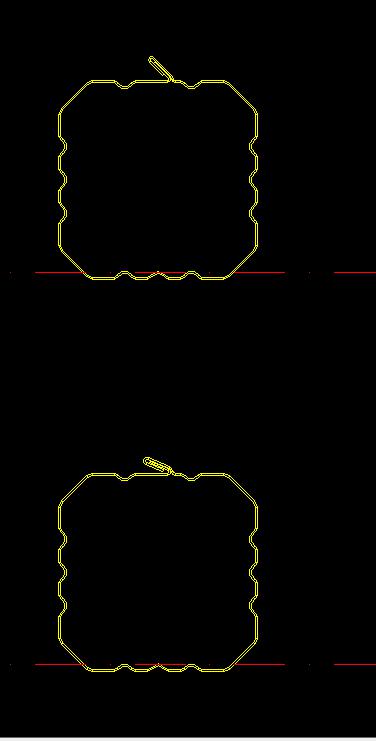

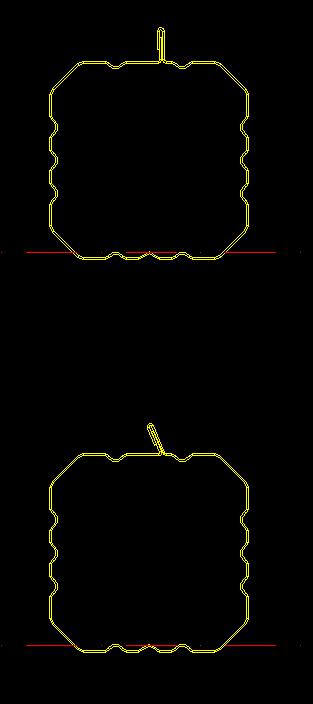

By the below drawings, you can see how to make the edge seaming on the machine.
metal steel downspout rolling forming machinemetal steel downspout rolling forming machinemetal steel downspout rolling forming machinemetal steel downspout rolling forming machine

No matter the round pipe or square pipe, it's empty inside. Normally, the roll forming rollers will be outside,
so how to ensure the pipe in a perfect shape as what we want?

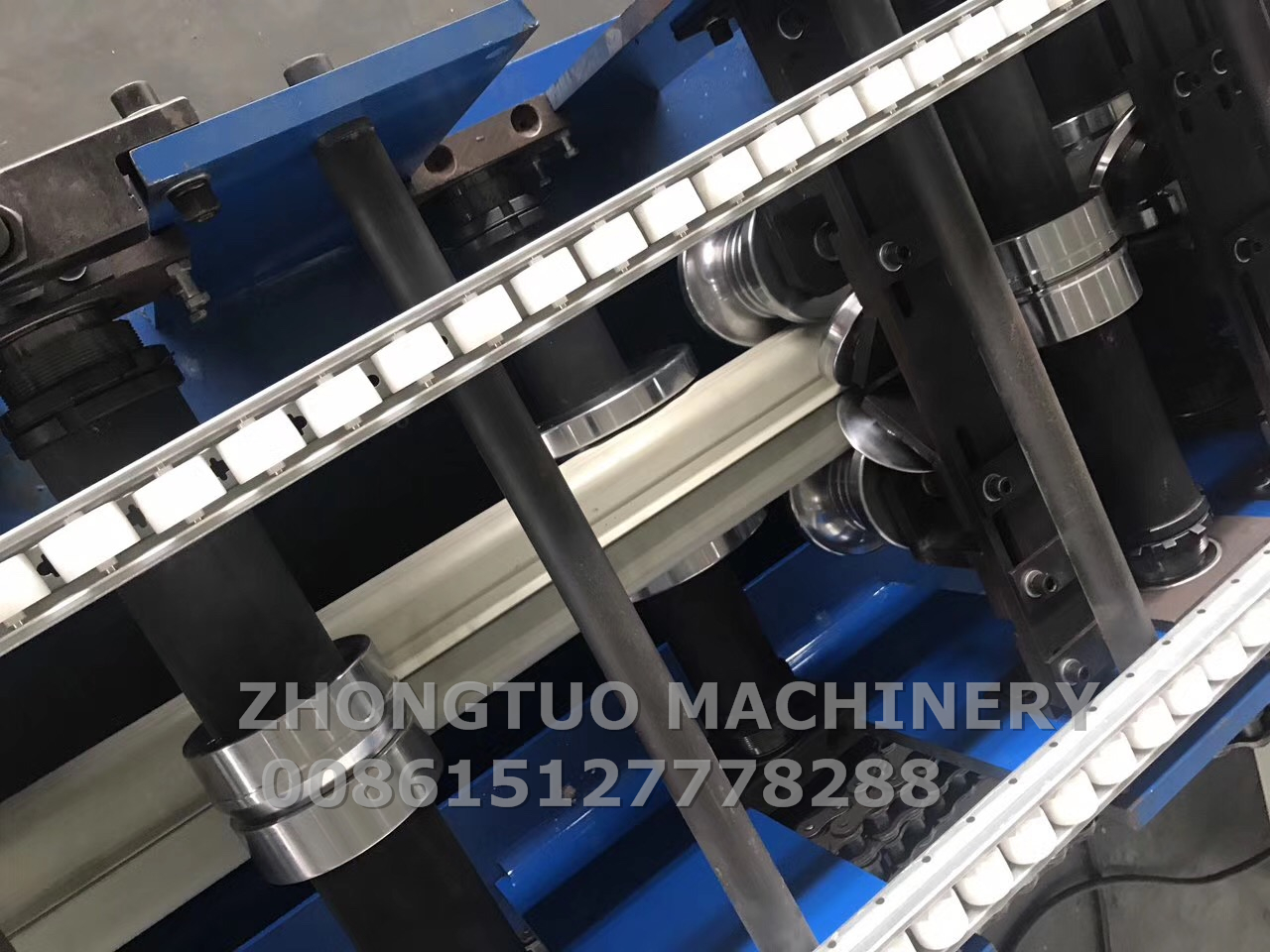

We have the solution like this: have one mandril inside the pipe when forming, and there are lot of auxiliary rollers on the mandril.
The auxiliary rollers can hold and carry the material inside, incase the forming rollers press much outside and make the pipe deformed.

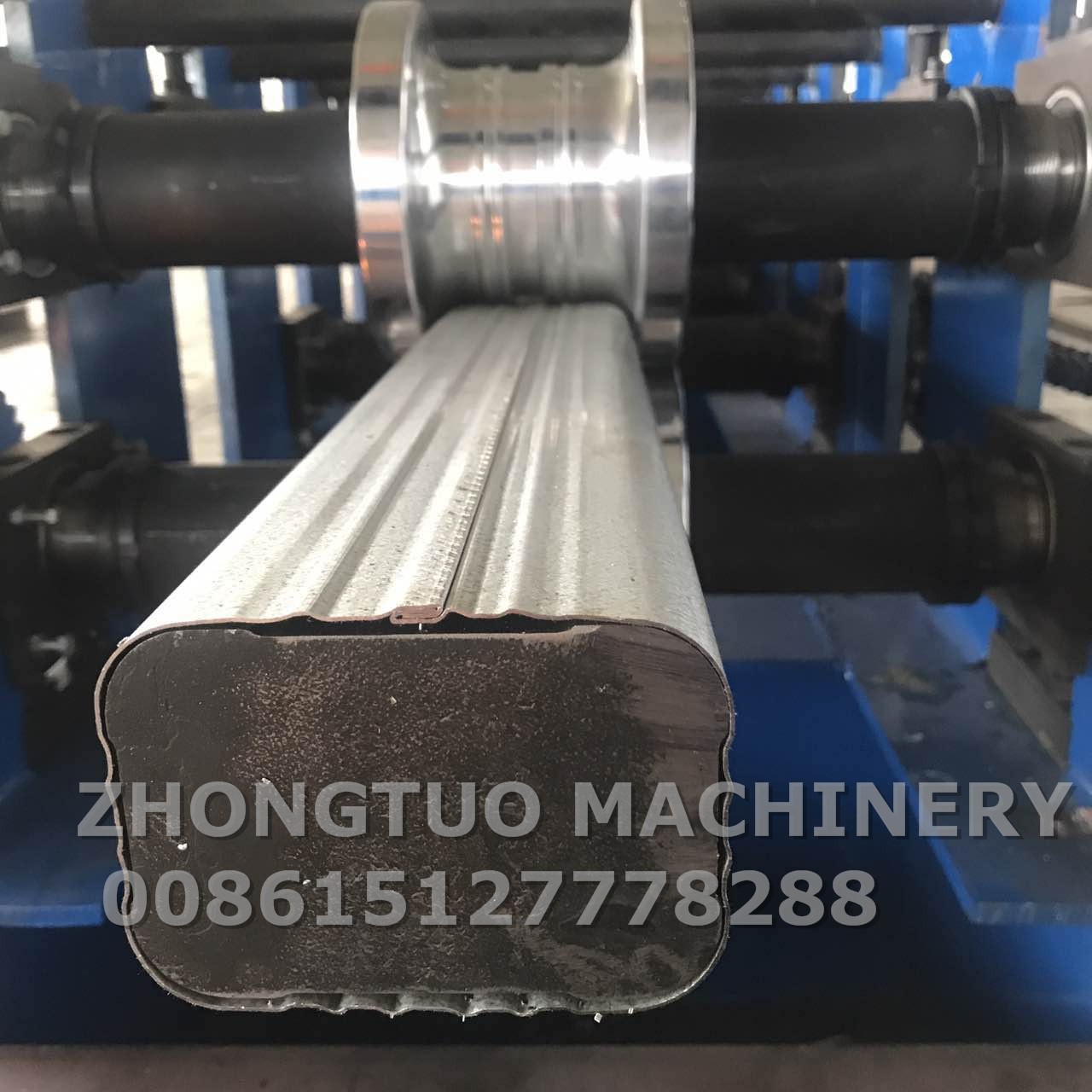

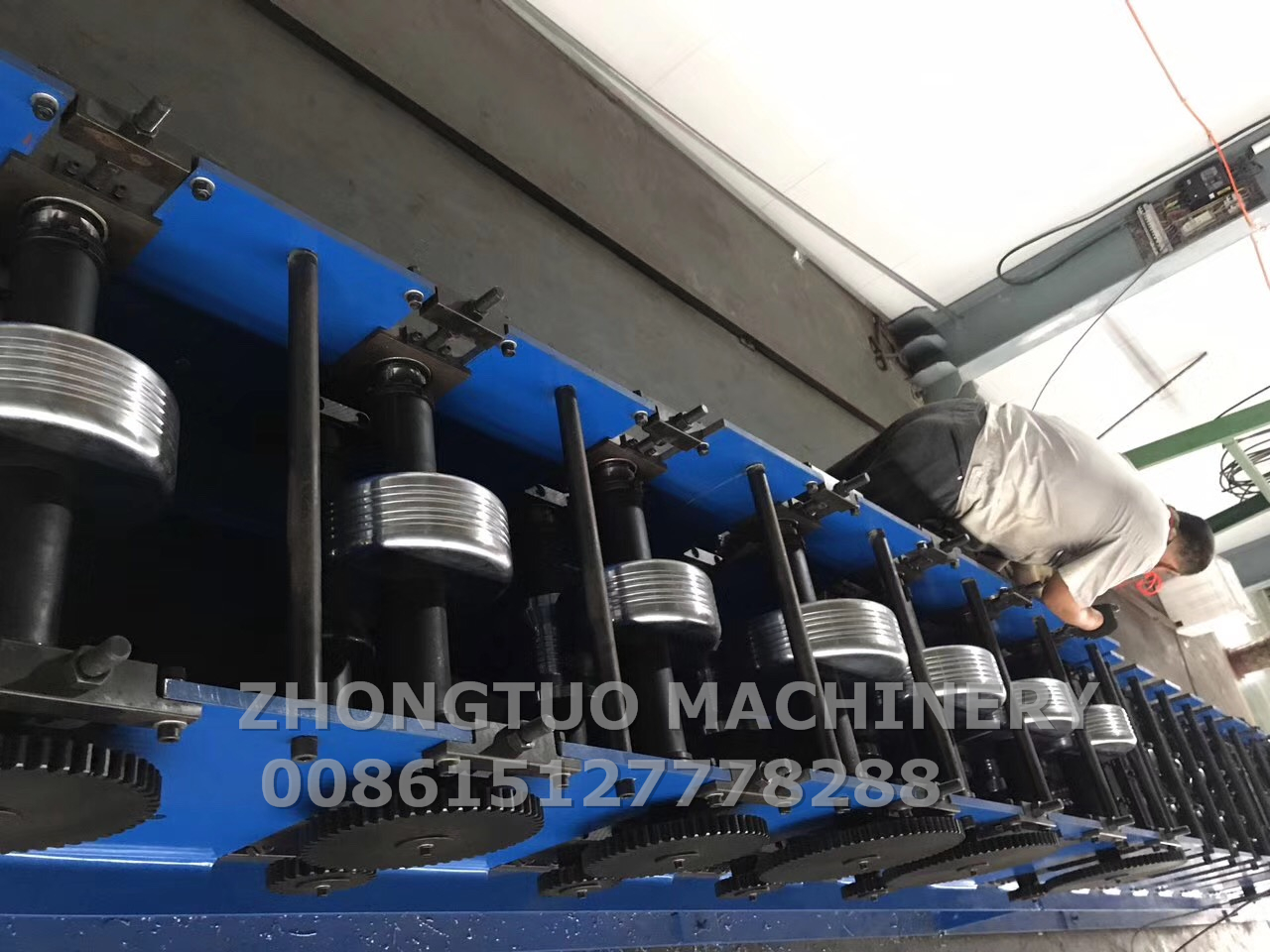

Please see the pictures of forming system:
metal steel downspout rolling forming machine metal steel downspout rolling forming machine

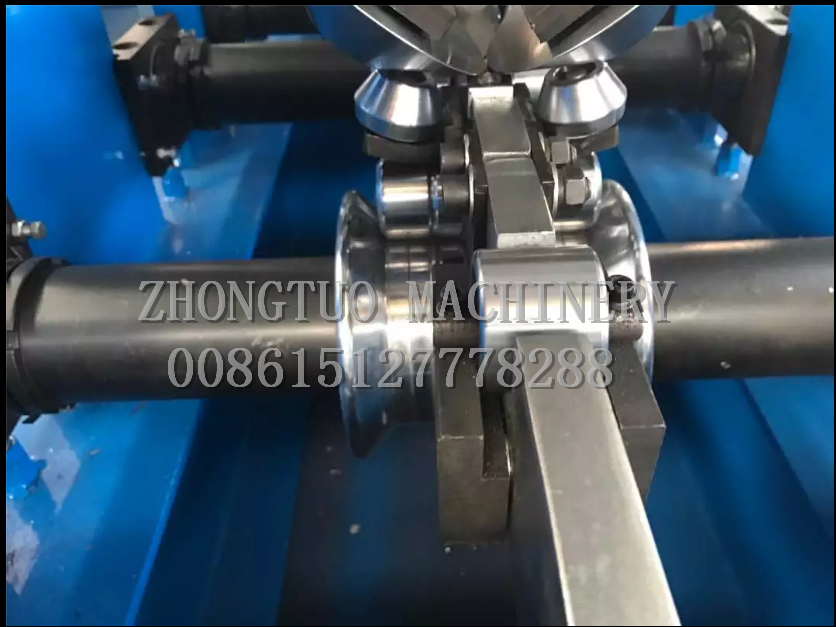

The mandril with auxiliary rollers:
metal steel downspout rolling forming machine metal steel downspout rolling forming machine

5. Drainage system of house
Actually, the drainage system includes different type products, the downspout is just a part of drainage system.
Another product which is name gutter, it's also made by the roll forming machine.

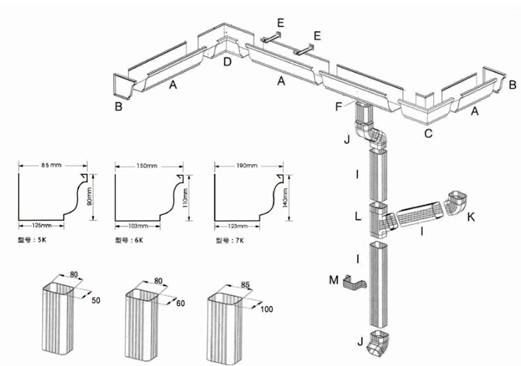

We can show you the drainage system by drawing:
metal steel downspout rolling forming machine

6. Contact for more information regard the downspout forming machine
Contact person: July Ma
Contact number: 008618733770188
Email: cnzt010@zhongtuocn.com

metal steel downspout rolling forming machine

7. After sale service
A: Warranty: One year, if any part is damaged with the normal use, we will give you the new for free to replace the broken one. And we will provide the technical support for the whole life.

B: Training and service: we have shownroom in Mumbai and our technician is working there, So we can arrange the technician to customer’s factory once the buyer receive the machines.The buyer will arrange the transportation and accommodation for the technician, and daily salary is USD80 per person. Meanwhile, our technician will train the workers how to operate the machine and how to maintain the machine daily. Besides, need 2-3 workers to help our technician for installation and commissioning.

C: we will provide you the layout for installation in English, it will be much easier to prepare the space and install the machine according to the layout.
