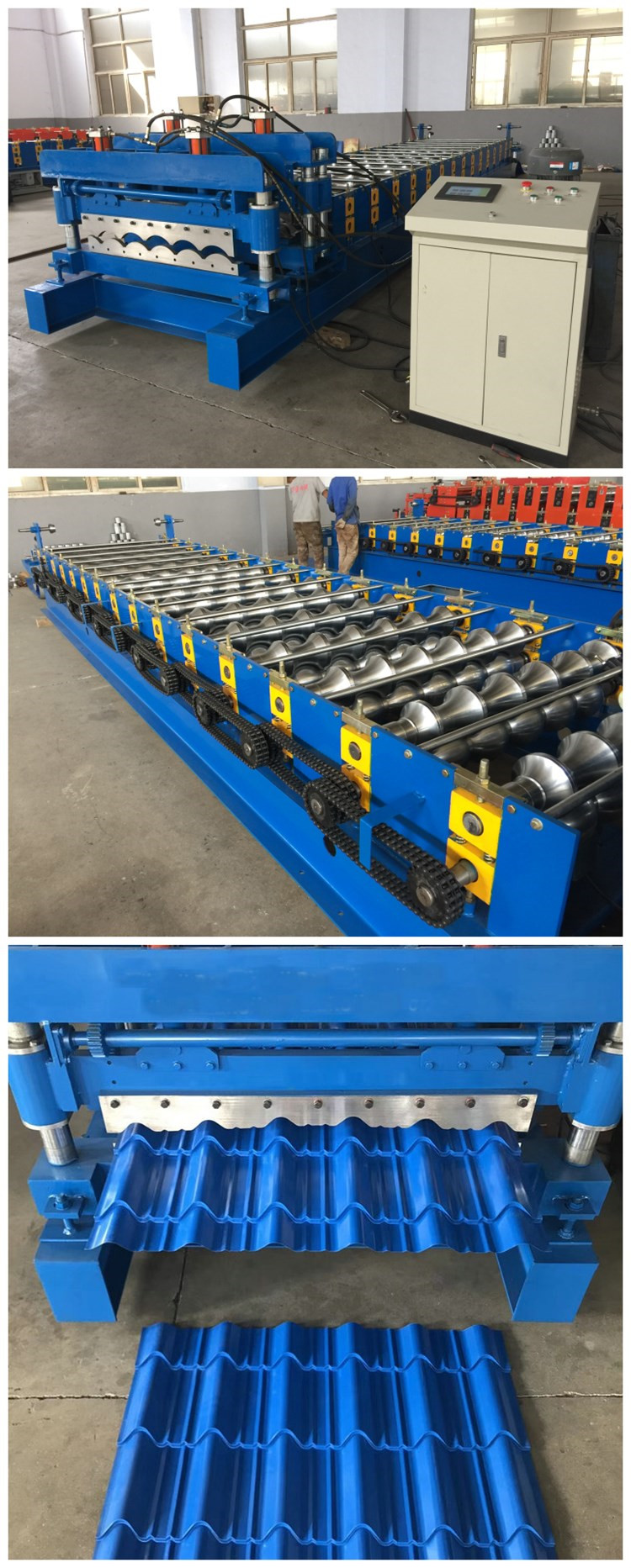

Description of glazed tile making machine:

As we know, glazed tile roof is widely used in large span factory building, warehouse, office buildings,stores and temporary housing. Our glazed tile making machine can produce any glazed tile acording to the customers requests. Glazed tile making machine allow you to do both glazed tile and normal roofing sheet. The stepisn used or not depends on your real using. For the glazed tile making machine speed is 3-5m/min. Promise to give 3D appearance, beautiful wave and easy to overlap.

Advantage of glazed tile making machine:

Glazed tile is beautiful and durable. Compared with other materials, it is fire safety, firmer, lighter and with high strength. Our glazed tile roll forming machine uses less power and saves energy consumption, which is beneficial to reduce the production cost. The fully automatic operation mode can reduce te labor force and reduce the labor intensity, improve the efficiency of labor.

Features of glazed tile making machine:

The structure of this glazed tile making machine is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.Compared with memorial arch structure, most customers choose this design. Because it is more cost-effective.
It adopts the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
The finished products are widely used in garden-like factories, tourist scenic spots, pavilions and pavilions, hotel villas, exhibition halls, resorts, resorts and so on. It has many advantages, such as beautiful scenery, Home and other architectural and outdoor decoration.


Technical Parameters:

Raw material: Galvanized steel coil or color coated steel coil
Material thickness: 0.3-0.8mm
Roll forming speed: 2-4m/min
Material of Roller: 45# steel with tempering
Shaft Material: 45# steel with tempering
Drive type: chain
Motor Power:  4 KW
Material of blades Cr12 quenched
Material of cutting dies:  Gcr12
Hydraulic power for cutting:  4KW
