Two waves Highway Guardrail Roll Forming Machine

brief introduction for guardrail roll forming machine

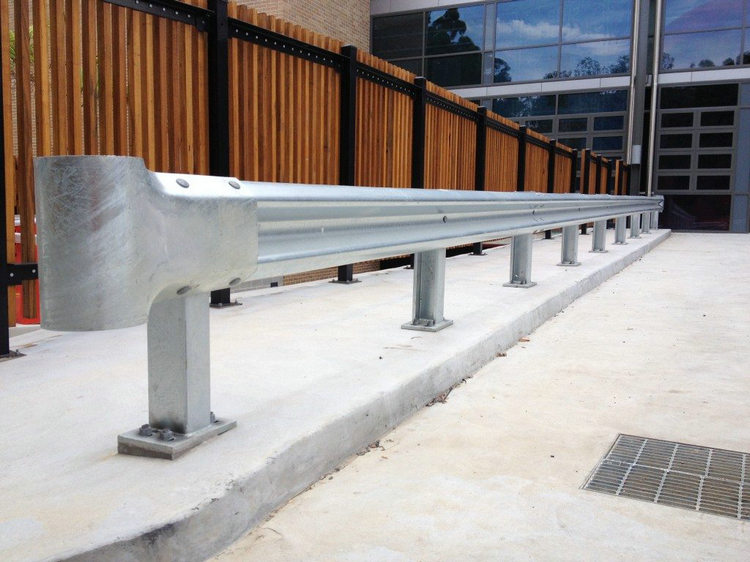

Two waves and three waves guardrail are standard profile drawing for guardrail roll forming machine. Steel guardrails provide a visual and physical barrier between traffic and work areas. It is used for protection against accidents due to lift trucks or other mobile equipment in dock areas, aisles, around special equipment, or offices.

This guardrail roll forming machine is especially used for producing the guardrails of road. The whole line adopts PLC controlling system and AV inverter speed adjustment, it can run full automatically. It`s the essential equipment in the steel structure industry and road transportation industry.

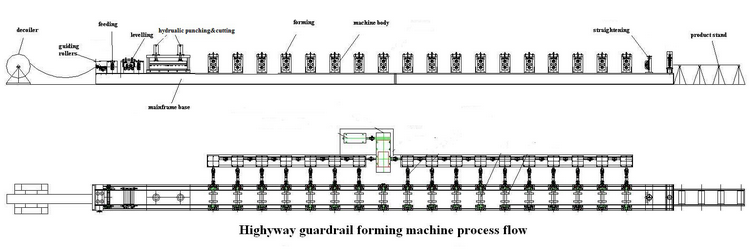

working flow of guardrail roll forming machine

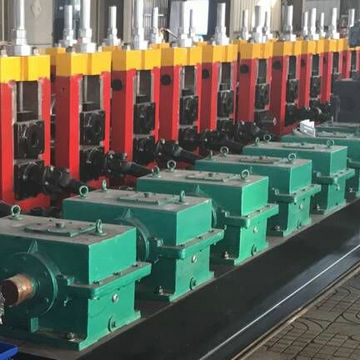

Guardrail Roll Forming Machine

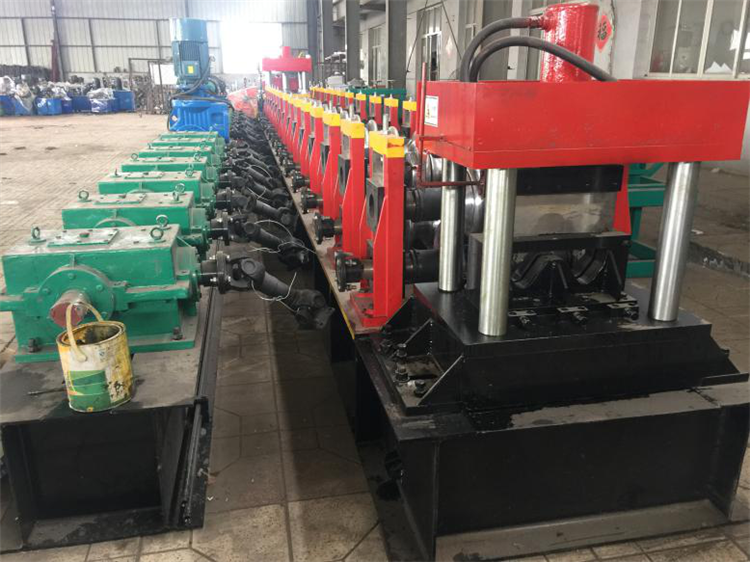

Components of highway guardrail roll forming machine

This guardrail roll forming machine is especially used for producing the guardrails of road. The whole line adopts Cast iron vertical structure ,gearbox driving and PLC controlling system and AV inverter speed adjustment, it can run full automatically. Good appearance with no burrs in steel body nor traces of rust or defects in painting.Good electrical and hydraulic cable organization Car painting make the machine more glossy.

Series	Details	Parameter
Material	Raw material	Steel
Material	Material thickness	2.5-3.5 mm
Roll forming machine	Guiding&leveling device	Placed on the machine by seller
		Shaft numbers:11pcs
		Shaft diameter:80mm
		Shaft material: 45# steel
		Drive power:5.5kw
	Rolling shaft material	45# STEEL
	Shaft diameter	90mm
	Roller material	GB-Cr15 with heat treatment
	Rolling station	15 stations
	Work speed	6-10m/min
	Machine frame	Cast iron vertical structure
	Machine body	400# H steel welded
	Bearing	Chinese famous brand Harbin
	Work power	22kw
	Transmission	By GEAR BOX
	Safety cover	available
	Appearance	Good appearance with no burrs in steel body nor traces of rust or defects in painting. Good electrical and hydraulic cable organization Car painting make the machine more glossy
Control system	Frequency brand	Delta from Taiwan
	PLC brand	Delta from Taiwan
	Screen type	Touch screen
	Screen language	English/Chinese/Arabic
	Pre-cut&punch command	Yes
	Profile length set-up	Yes
	Batch quantity program	Yes
Hydraulic system	Work type	Hydraulic
	Punch mode	Four pillar hydraulic powered punching system
	Driving method	By Cylinder
	Motor power	22kw
	Cutter/mold material	GB-Cr12
	Mold material	GB-Cr12
	Mold quantity	2 sets
	Punching frame	1 set
	Press power	80T
	Cutting length tolerance	±1.5mm
	Oil pump	Solenoid valves:3 sets
	Hole punch location	Please take the drawing for reference
