Azerbaijan popular adamante type 3D mold roof sheet roll forming machine

Design Idea：
High speed: 0-8 m/min with stable roll forming, pressing and cutting.
Special Design Cutting Device：As Azerbaijan customer’s requirement different with others,for the cutting device we made special flower cutting design and obtain a patent.

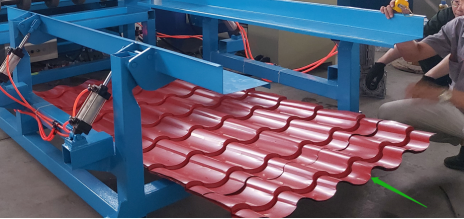

With this kind of design, the glazed tile will have more stereoscopic effect.

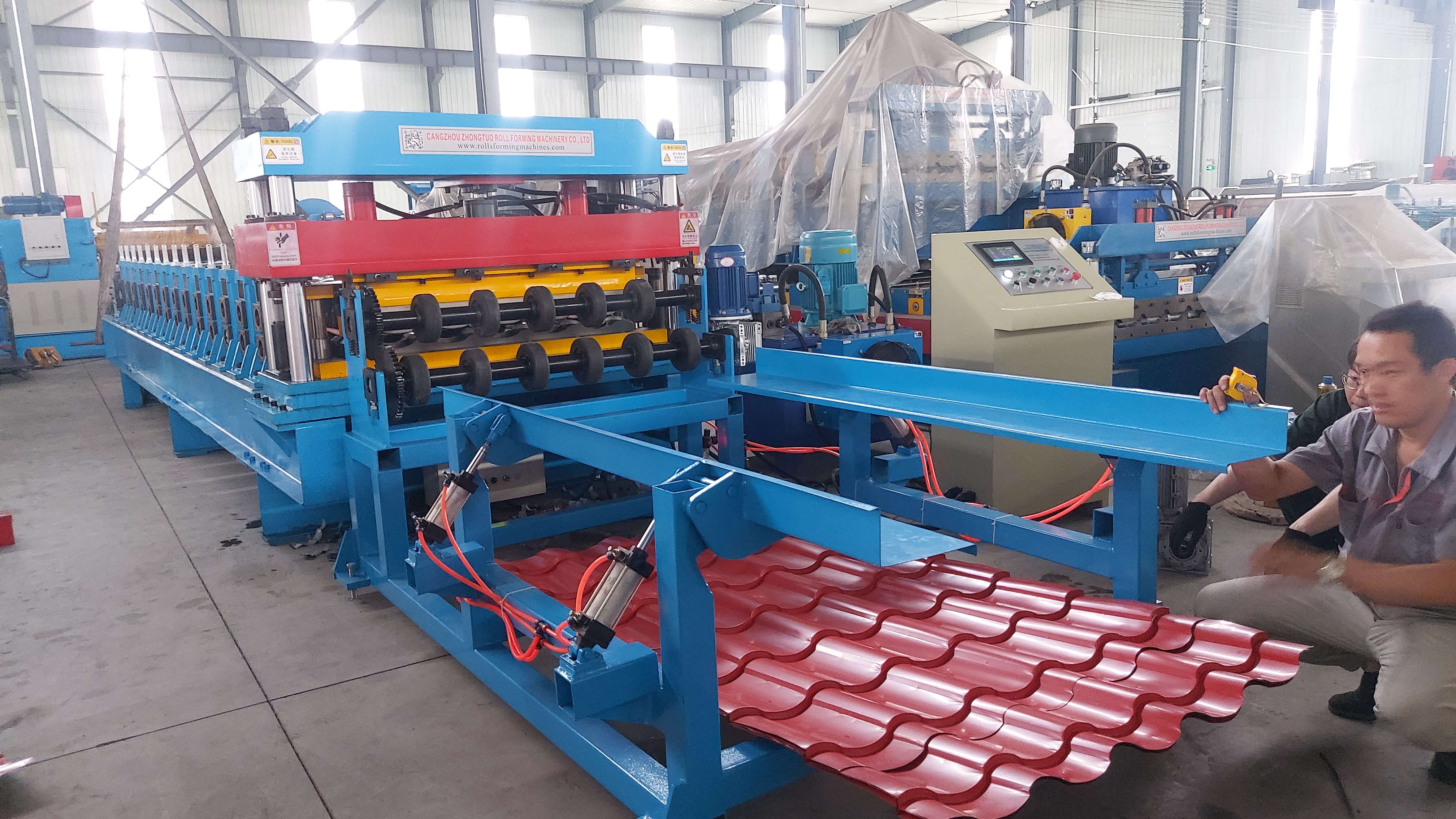

Azerbaijan popular adamante type roofing sheet making machine

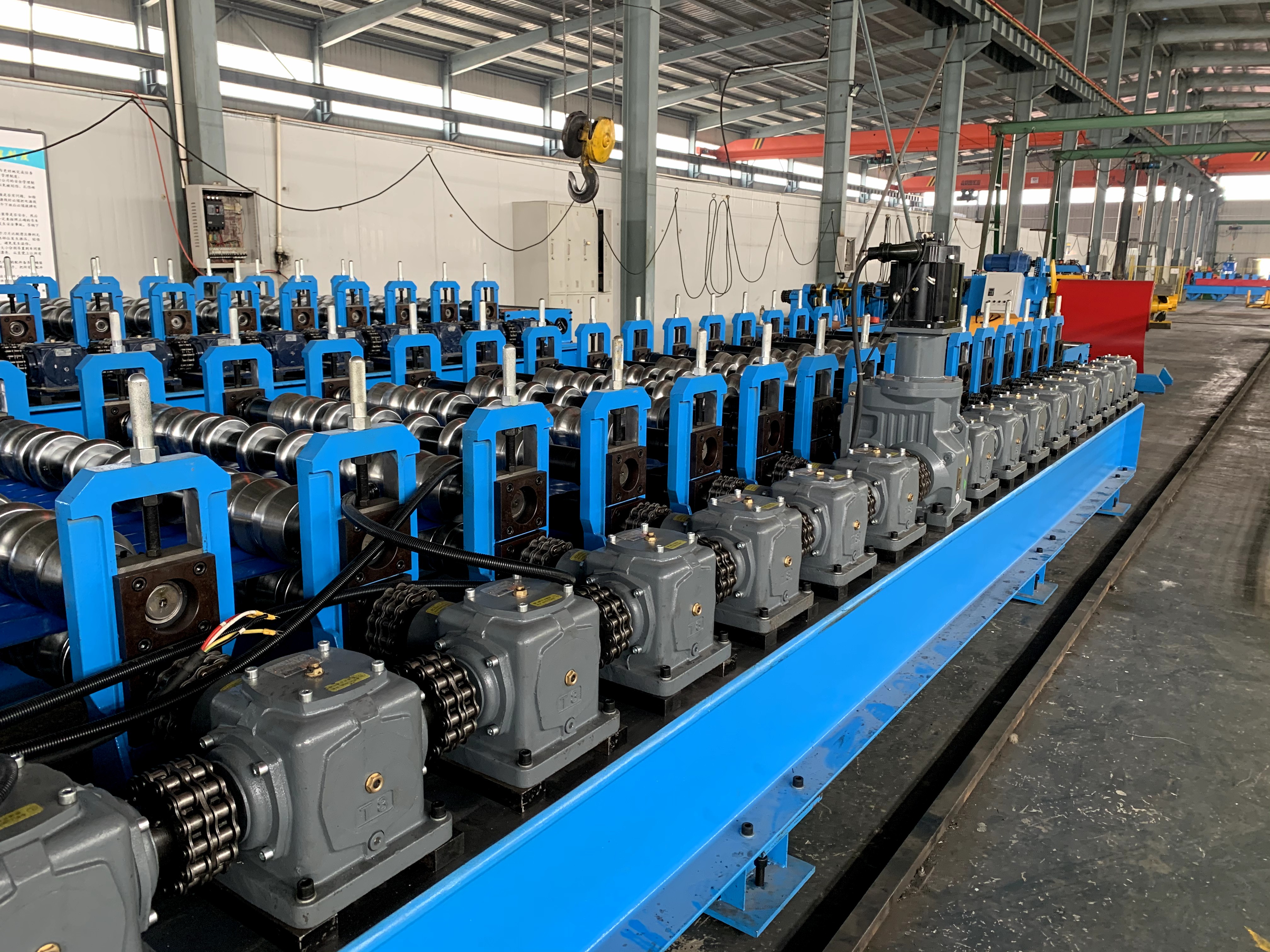

Stable Transmission: This roofing sheet machine we use the gearbox transmission and molding frame to make sure the working speed and stablity.
Azerbaijan popular adamante type roofing sheet making machine.

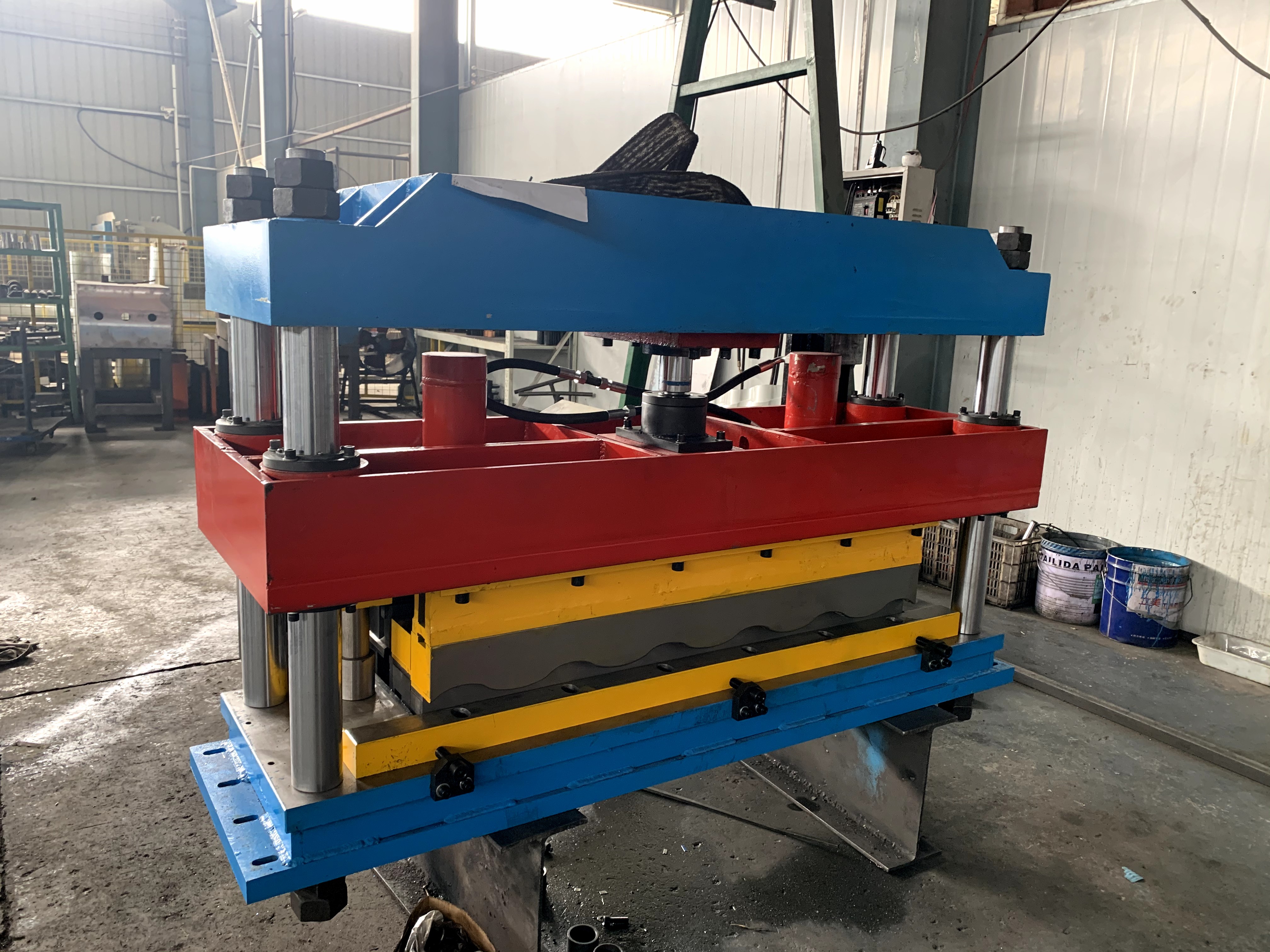

Special cutting and pressing system: The flower shearing type roofing sheet machine cutting system is different with normal design. Only the cutting system, weight is two tons.
Azerbaijan popular adamante type roofing sheet making machine

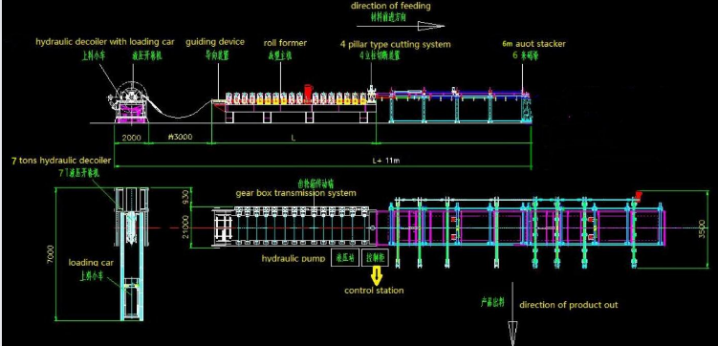

The machine working flow:
Decoiler-Feeding Material-Roll Forming-Cutting-Receiving The Product
Azerbaijan popular adamante type roofing sheet making machine

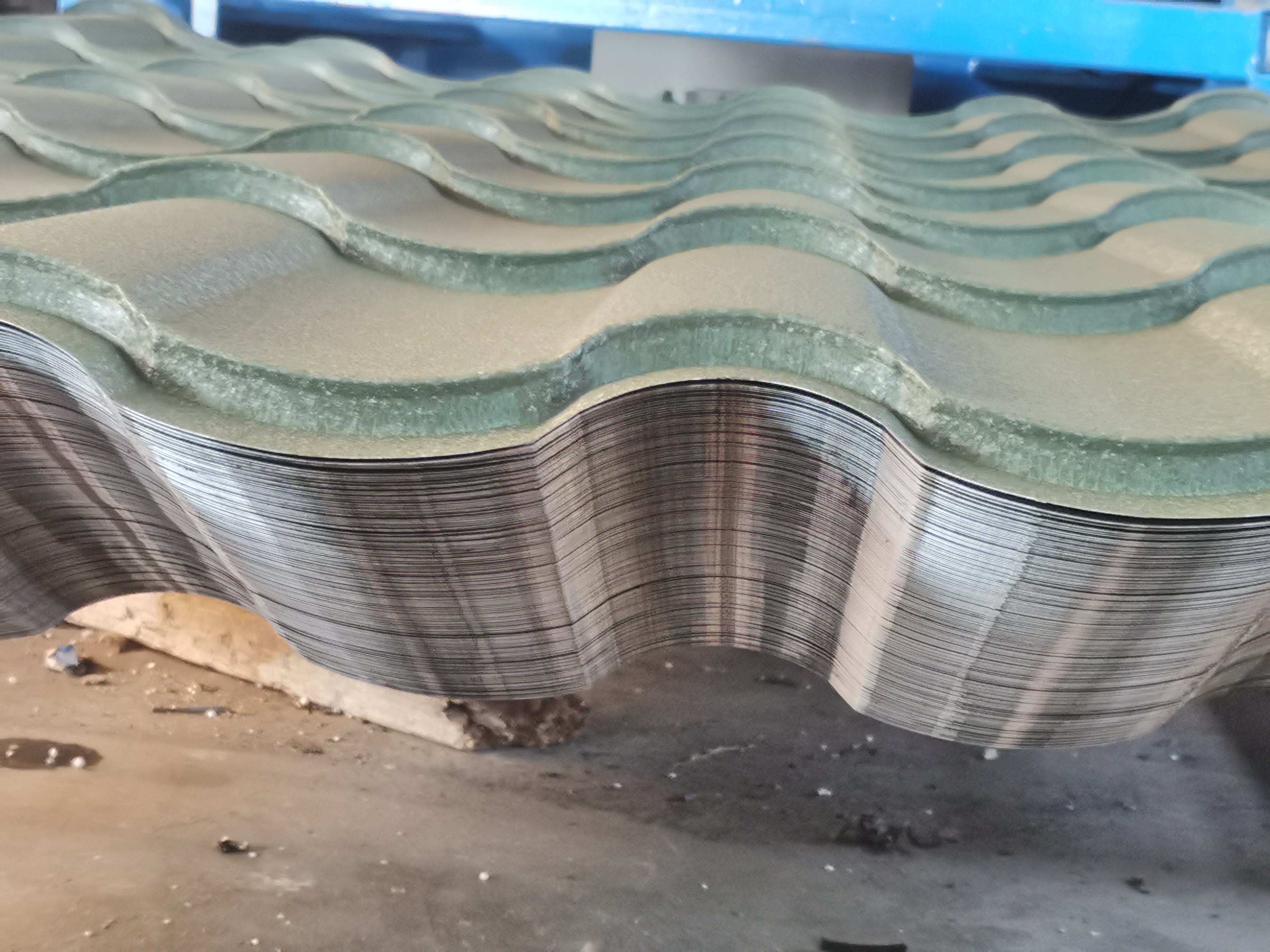

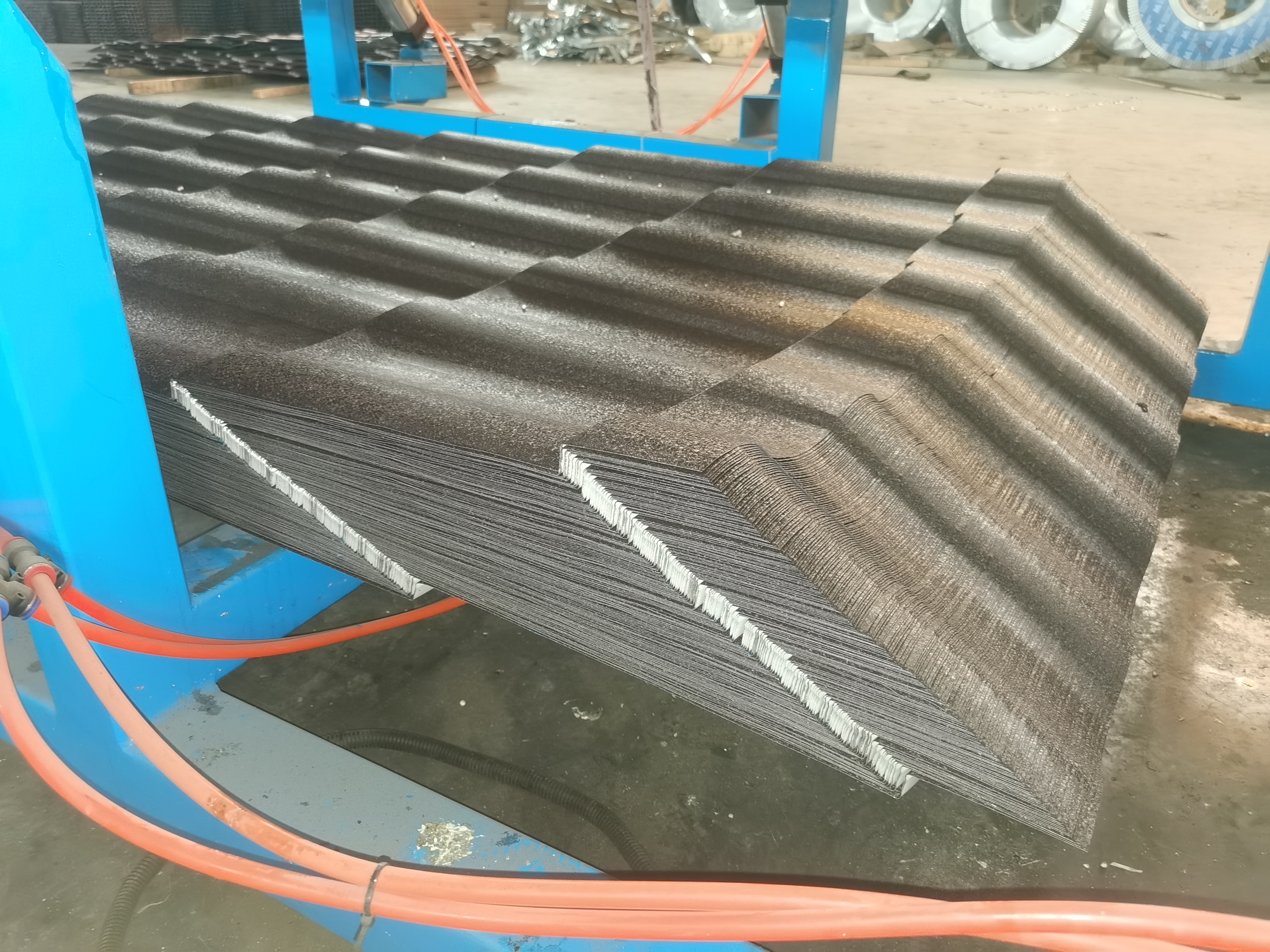

The adamante type glazed tile is very popular in Azerbaijan market, the thickness usually use 0.4-0.6 mm color coated galvanized steel coil.
This type glazed tile roof sheet very hot sale in Azerbaijan, normally material feeding width 1250 mm,and Product effective width 1000 mm.
As we sold many glazed tile machines to Azerbaijan,we have rich experience on it to confirm the finished product good and suit for market.

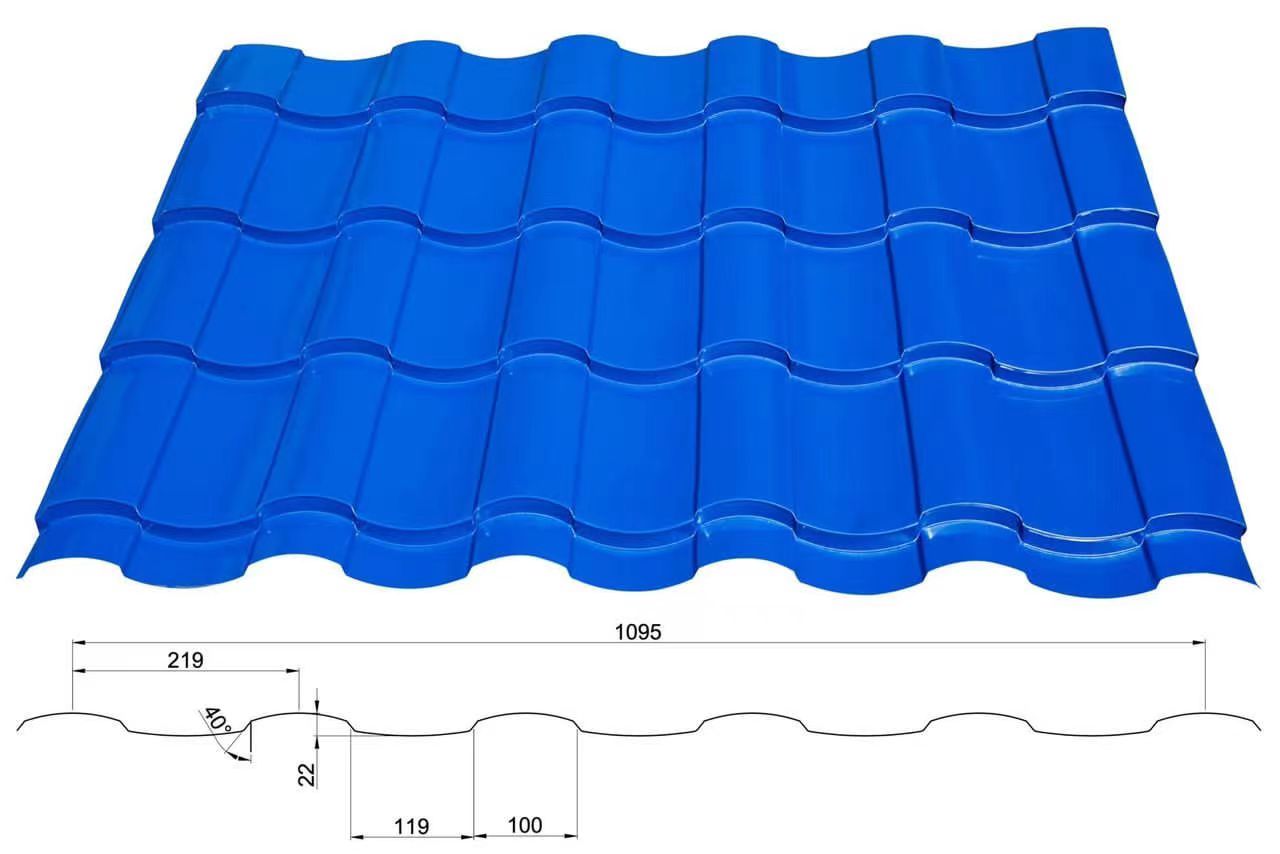

Below is the Azerbaijan local market standard profile drawing for your reference:

Azerbaijan popular adamante type roofing sheet making machine
