Glazed tile roll forming machine

1

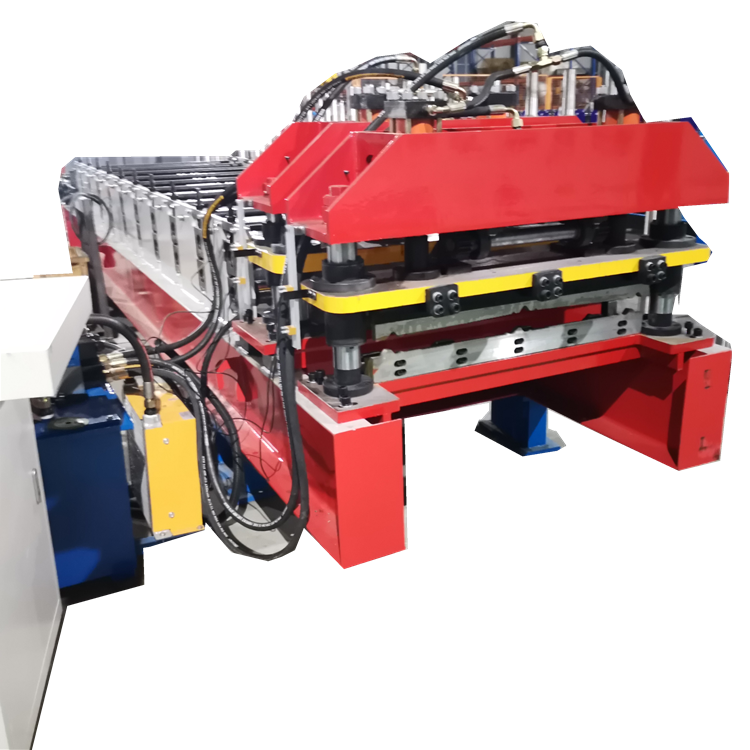

Indonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed roofing rolling forming tile making machineIndonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed roofing rolling forming tile making machine



  Indonesia popular step tile glazed rolling forming machine is designed to make the glazed tile in batch fully automatically which is quite popular in Indonesia.

  The step tile designs are huge in the market, we can not list all of them here. Here we take the one which is quite popular in Indonesia.

Indonesia popular step tile glazed roofing rolling forming tile making machine



  Why our glazed tile roofing sheet machine can benefit you?



  1. For the decoiler. If you need to use the hydraulic automatic one we can supply you.

  If you want to save the cost, we can supply the 5 Ton manual one using this type quality.

  It is designed by a big wheel. with manual brake, so operate more easily



  2. Guide feeding device with leveling and cutting.

  By the cutter, you can remove the untidy start or cut it at any length.

  1).With several support rollers, to feed the material more smoothly

  2).Equipped with 2 plastic bands in the middle of the platform and two pinch plates to feed the material,

prevent the material surface from being damaged, and feed the material more easily and quickly.

With hand wheels to adjust the feeding size, more conveniently.



  3. For the rollers: Advantage:

  For all of our rollers, spacers and shafts, we all mark numbers on it, it’s very convenient for you to maintenance the machine in the future.

  There is ball bearings inside the rollers, to make all the rollers run at same speed when machine is run.

  Because the rollers inside with ball bearings, our rollers is bigger than others, so work speed is faster.

  All rollers and spacers, we do 3mm thickness chrome coating, to increase hardness and anti-rust. Some factories maybe use 1-2mm chrome coating.



  4.For the Hydraulic oil pump station We designed with : with air-cooling system to prolong the service life.

  Include a set of hydraulic tank, a set of hydraulic oil pump, four hydraulic pipes.

  And two sets of electromagnetism valves Driving method : By pillar type Cylinder Hydraulic motor power 4.5kw;

  Cutter material: GB-Cr12 Cutting length tolerance : ±1mm/3m

  Cutting feature : Steady and safe working condition

  If you want to know more information, please contact us at any time.

Indonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed roofing rolling forming tile making machine



  Here the profile drawing for your reference.

Indonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed roofing rolling forming tile making machine



Indonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed rolling forming machine working flow:

Indonesia popular step tile glazed roofing rolling forming tile making machine

Technical parameters of Indonesia popular step tile glazed rolling forming machine:

Main motor power 5.5 KW
Roller material 45# steel with chormed treatment.
Roller shaft material 45# steel with quenched treatment.
Work speed 15-20 m/min
Length of the part 9500*1650*1500mm
Structure Middle plate welded frame structure
Frame 400 H steel with diagonal bracing
Drive mode By double chains drive methord
control method PLC control system
PLC  Delta Chinese good brand for good using
Hydraulic station 4.5kw with cooling fan system
Cutting method Hydraulic cutting
Cutter material GCr12 chromed and quenched for good hardness and using





Indonesia popular step tile glazed roofing rolling forming tile making machineIndonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed roofing rolling forming tile making machine

Indonesia popular step tile glazed roofing rolling forming tile making machine
