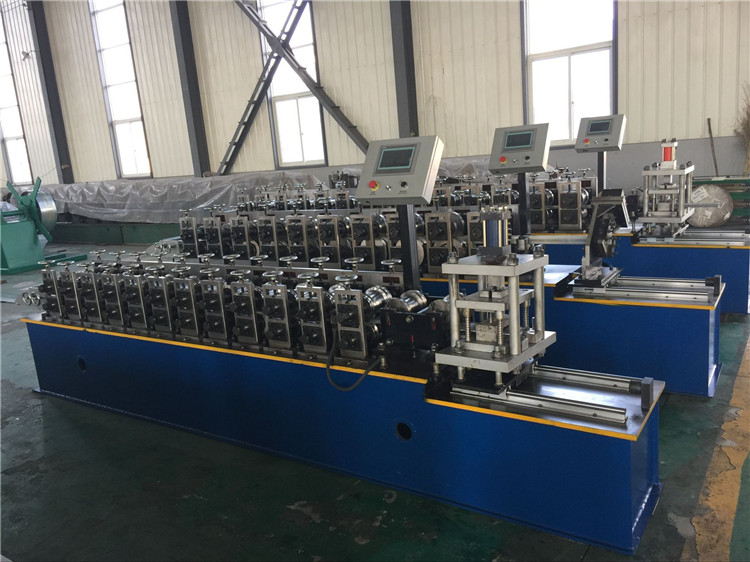

rolling door roll forming shutter machine

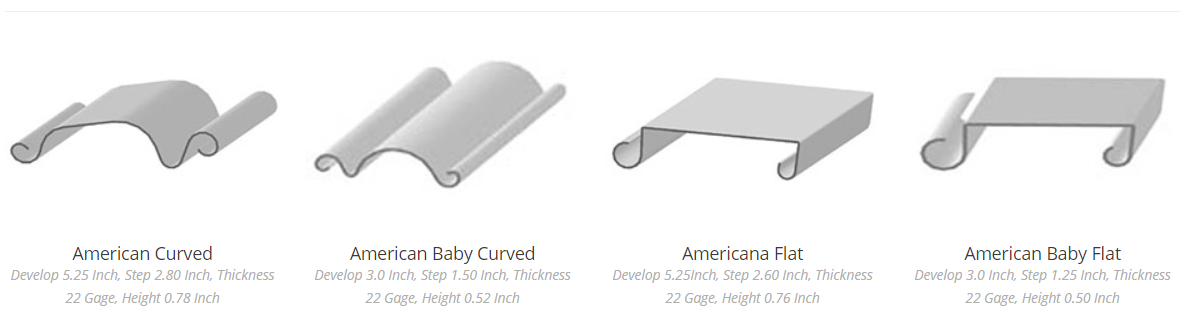

The rolling door roll forming shutter machine can producecurved ,flat, with holes rolling shutter slats.A rolling shutter or roller door is a type of door or window shutter consisting of many horizontal slats hinged together. A rolling shutter door is made up of several parts. Rolling shutters have many applications, including doors for vans, garages, kitchens, schools, prisons and warehouses.



Specifications of rolling door roll forming shutter machine

Decoiler

a. Coil inner diameter: 450-550mm

b. Coil max width: 300mm

c. Max carrying capacity: 3T

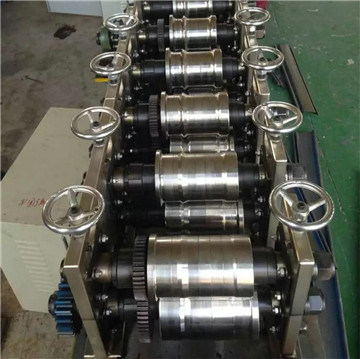

Roll forming machine

a. Number of forming steps: 12 stations

b. Shaft material: Gcr12MoV quenched

c. Roller material: Gcr12MoV quenched

d. Transport: by gear

e. Forming speed: 15-20m/min (normal speed)

f. Motor:4kw

Shearing system

a.The material of blade: Cr12Mov,Hardening HRC 58-62℃

b.length Tolerance:3m±1.0mm

C. Power supply: Hydraulic station

Hydraulic station

a. Hydraulic motor Power:3kw

b.Hydraulic oil: 46#

c.Hydraulic pressure : 12Mpa

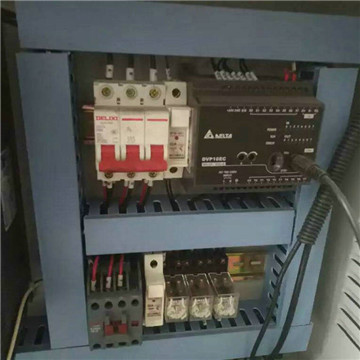

PLC station

PLC control system, we will take Delta .
