roller shutter door machine

 For the roller shutter door machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.7-1.4mm, the shape will be design by your demand.

For the roller shutter door machine, it has many parts:

1. Decoiler the coil.
2.Feeder to the punching holes machine(it can make the shutter door slide cover with holes).

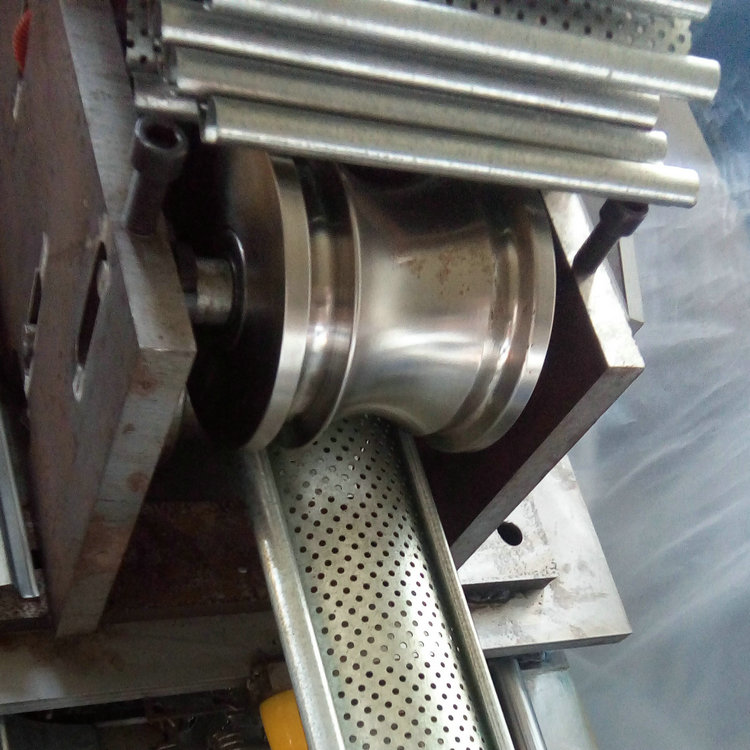

3.Roll forming part, for our mahcine, the forming speed will be 0-30m/min, it is asjustable.Generally we will make the Shutter door roll forming machine with gear drive, it will give machie a strong power to move.
4.Punching the lock holes. This part will together with cutting blade. When it cutting, the machine will punching the holes together.
5.Cutting part. We have two types of cutter for you choose,one is fly saw,another is hydraulic cutter.

The product we can do :

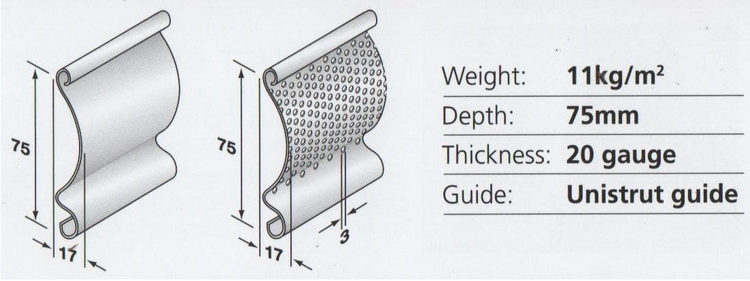

As a manufacturers,we can make the High Quality shutter door panel making machine  by customer`s demand, with a profile drawing and thickness, we can do design the machine quickly.Until now,we can do many kinds ofshutter door panel making machine,such as shutter door machine with perforation and holes,Australian-style shutter door and shutter door slat. And now, we start the new business about shutter door machine.Here is some profile drawings for you reference.
