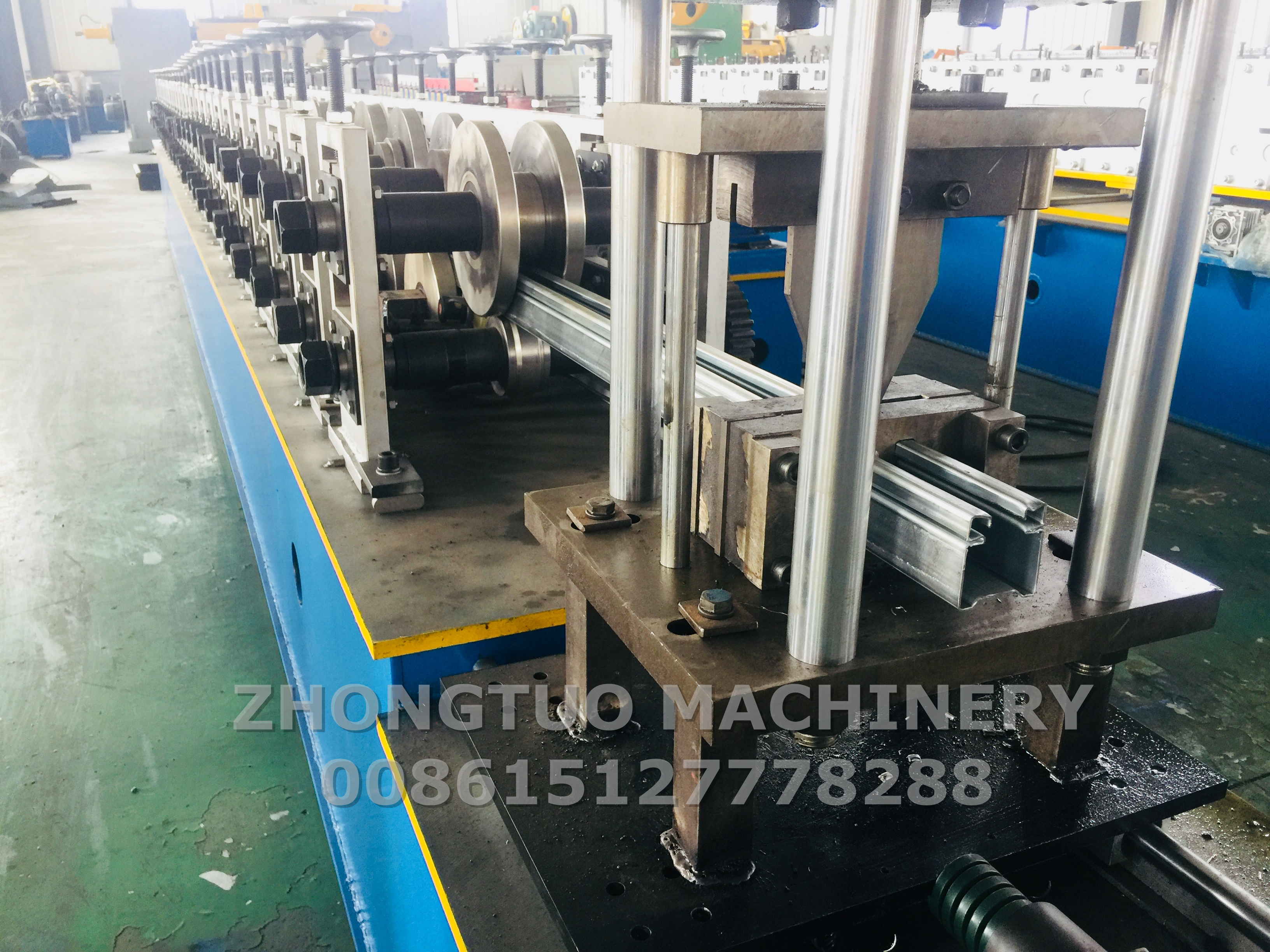

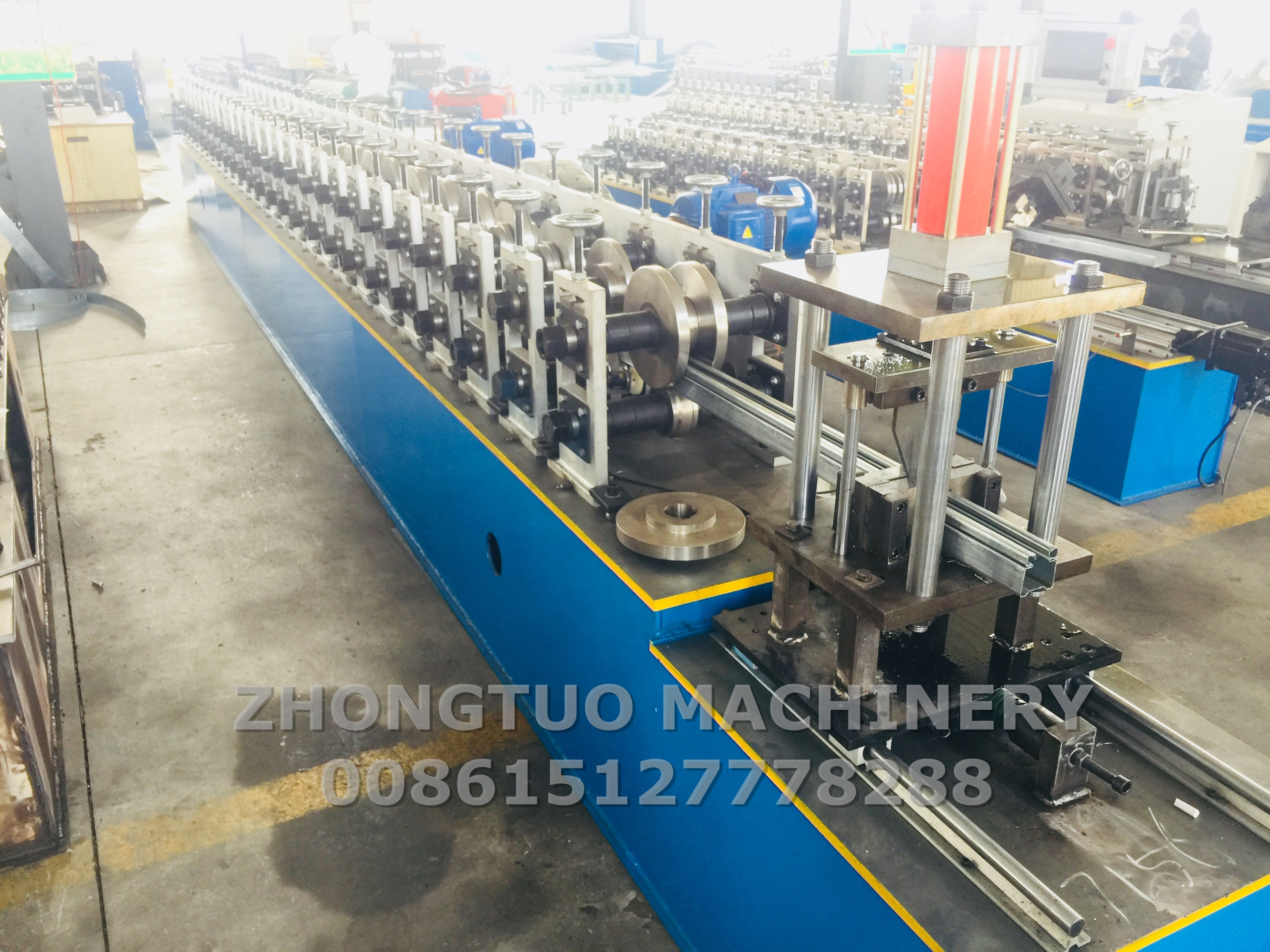

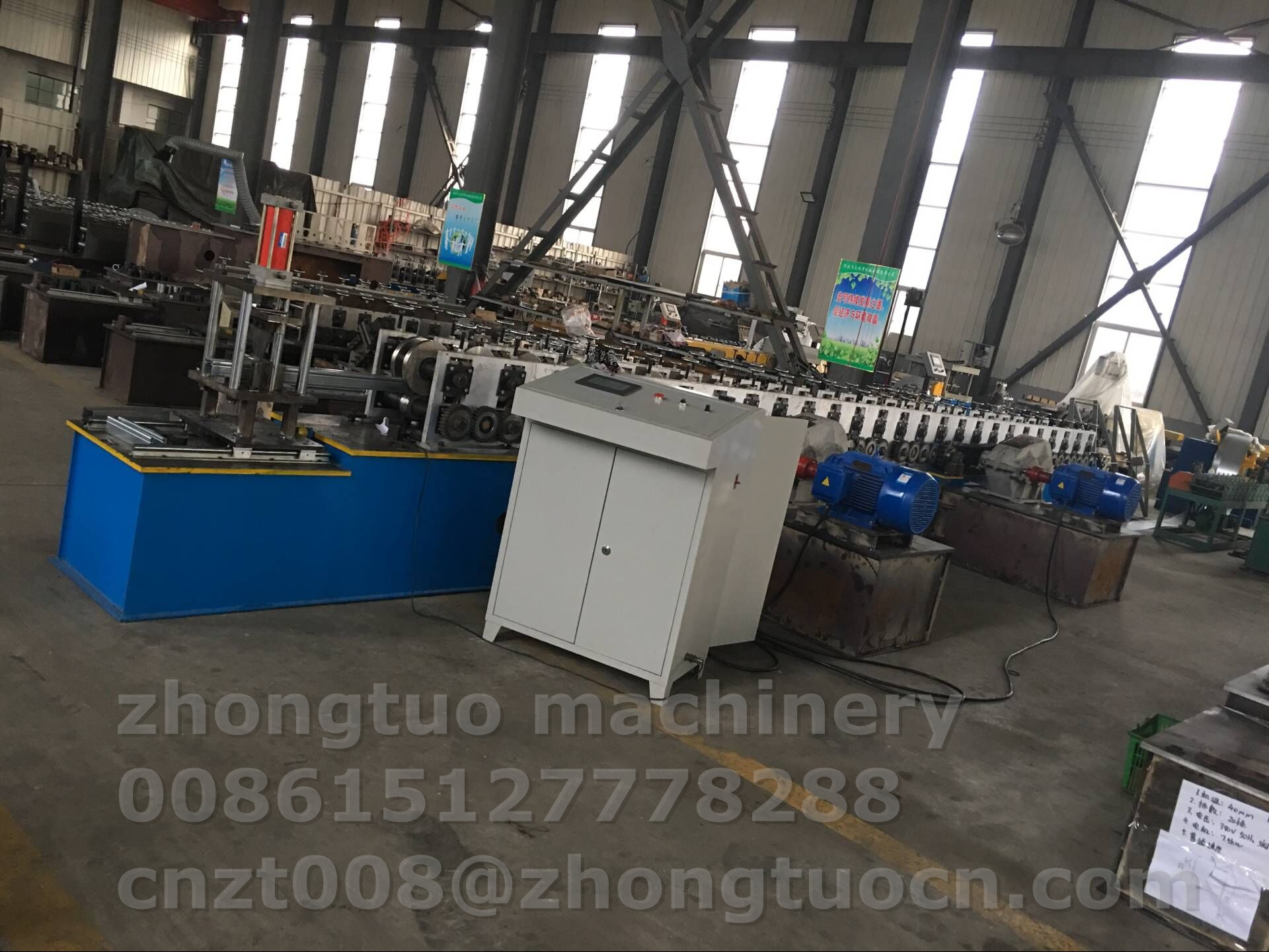

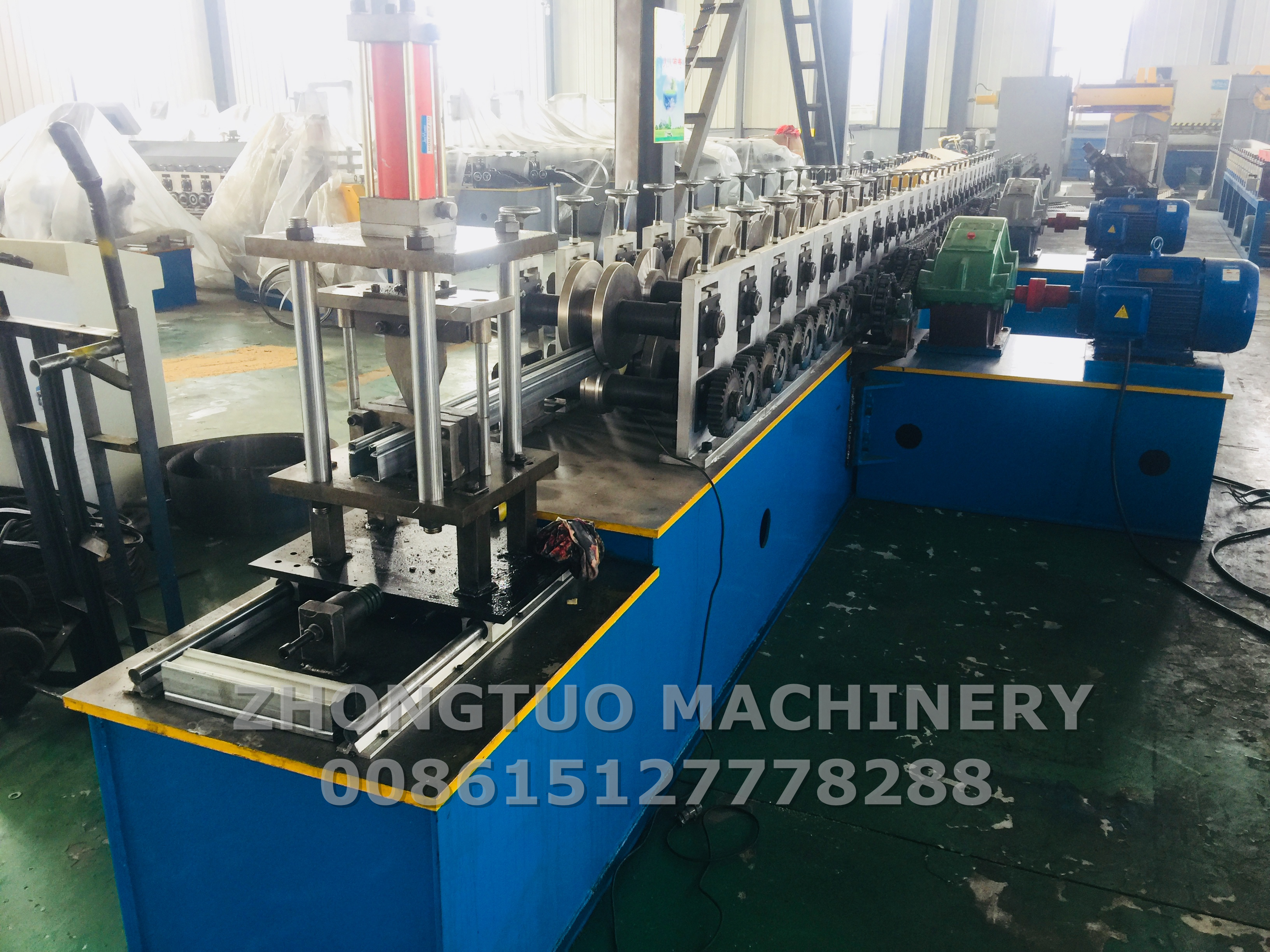

Door guide rail roll forming machine
It is also function same like U channel guardrail roll forming machine.
The function is for fixing the shutter door to the right direction
and then when make shutter door up and down, that will be quite easier.

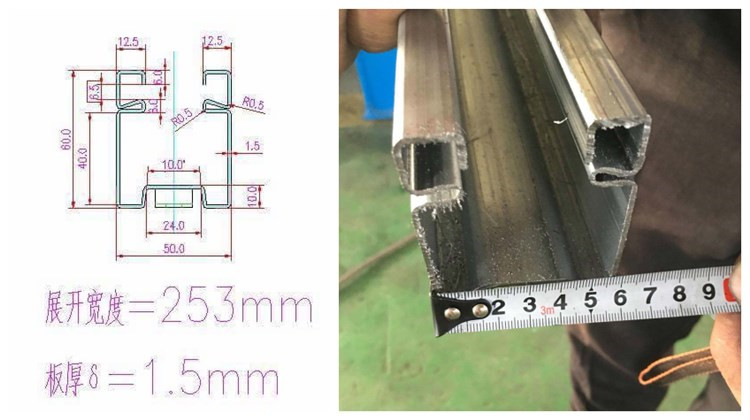

For the guardrail of shutter door, U channel is one type,
different area and countries have different ideas.
Here I will take one for your reference.It is most popular in Algeria.

Technical parameters of door guide rail roll forming machine

material	material : Galvanized steel Thickness: 1.5mm
manual Decoiler	Inner Diameter: 450-508mm Outer Diameter: max 1500mm Max Coil width: 400mm Capacity: 5T

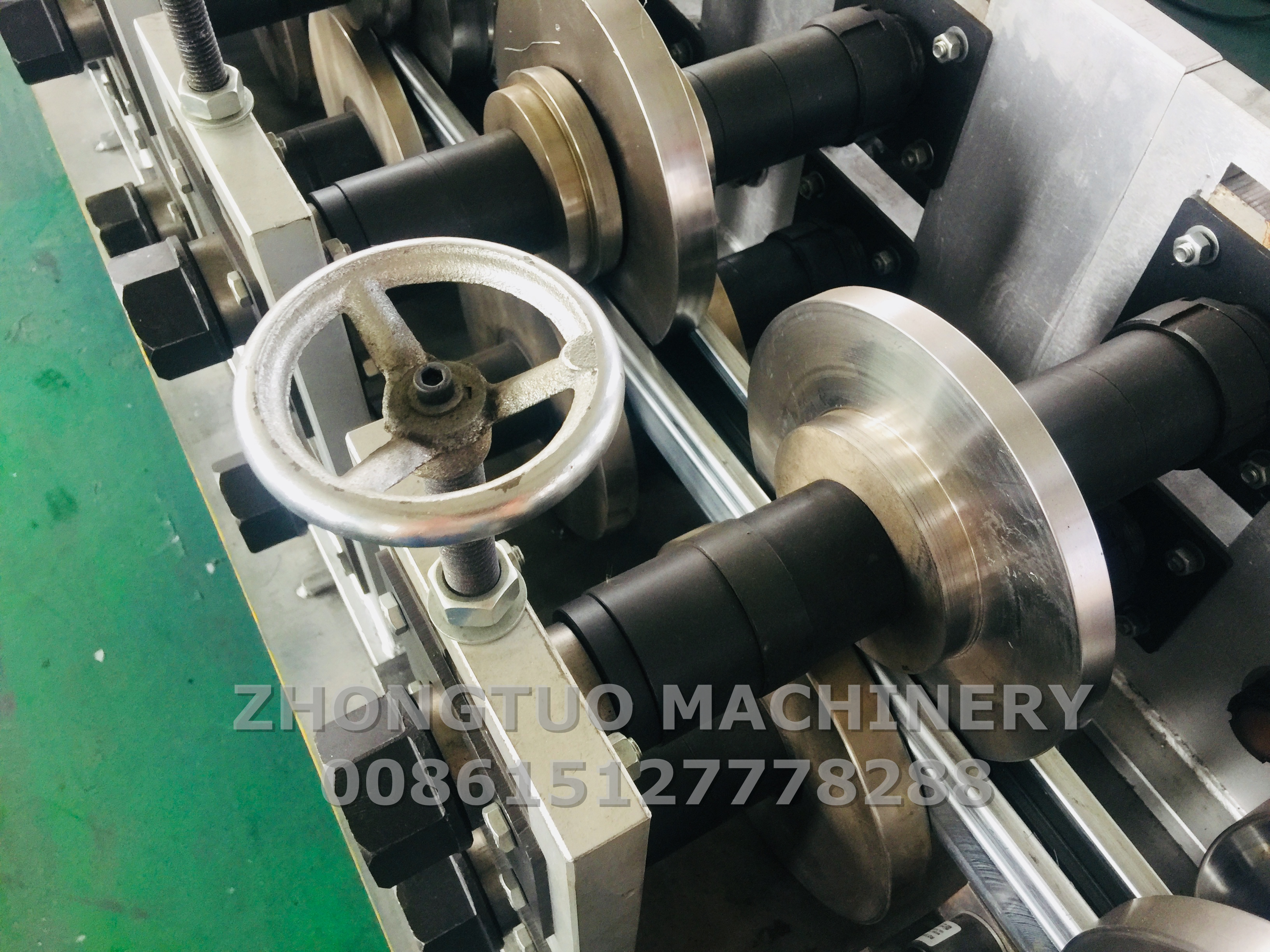

Roll forming system	Method for fixing roller: Memorial arch frame shaft material: #45 steel quenching and tempering treatment Outer shaft diameter: 60mm Wheel material: Quenching process of GCr15 bearing steel HRC58-60 Forming Speed: 10-15m/min Roller stations: 26 stations The main motor power: 7.5kw X 2 sets
cutting system	Function:It adopts the hydraulic drive and automatic location to decide the dimension and cut the target length. Material of blades: Gcr12 quenched Stroke switch: non-contact photoelectric switch
Hydraulic station	Hydraulic oil: 46# Hydraulic power: 5.5kw
Control Device	Control: By PLC PLC language: As required Touch screen: Delta Function: Automatic length and quantity measurement
Counter	Function: A counter measure length, pulse and the length is determined. OMRON encoder to measure the length.

Pls click to see the running video
