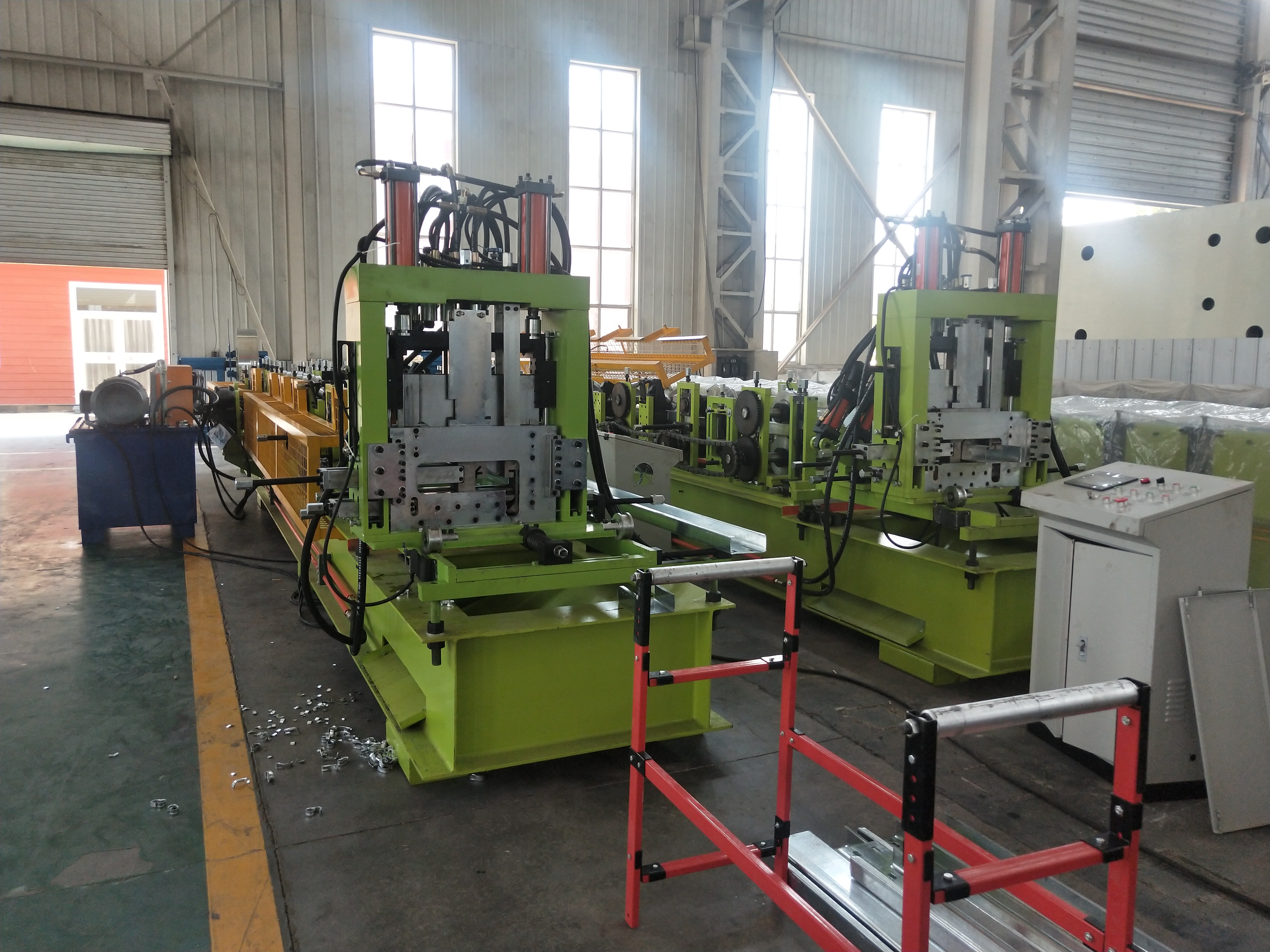

High speed auto C Z interchangeable purlin with punching  roll forming machine

The is a standard C/ Z interchangeable purlin roll forming machine.It is already be finished and debuged.We are preparded for your order for this machine.Once you decided to purchase, It can be shipping all the time after panment.

C/ Z purlin can be uesd for a roof cross beam when construct a house.

The C/ Z interchangeable purlin roll forming machine can make many size for C purlin and Z purlin. Main roll former can change the size and model by the electric type.

Profile drawing:

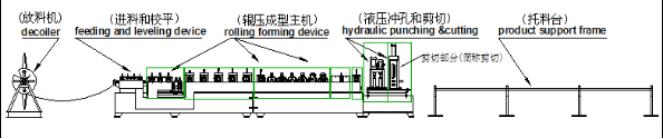

Working process:
Uncoiler→Feeding and leveling→Roll forming→Press rib→Straightening→Punching system→ cutting→ Products receiving



Technical parameter:



1.Product:

  raw material:Q195,Q235,HR steel,HR galvanized steel

  material thickness:1.5-3 mm

  specification:Width(C):80-300mm

                           Width(Z):120-300mm(The size can be adjust in this range)

    production cutting length:adjustable

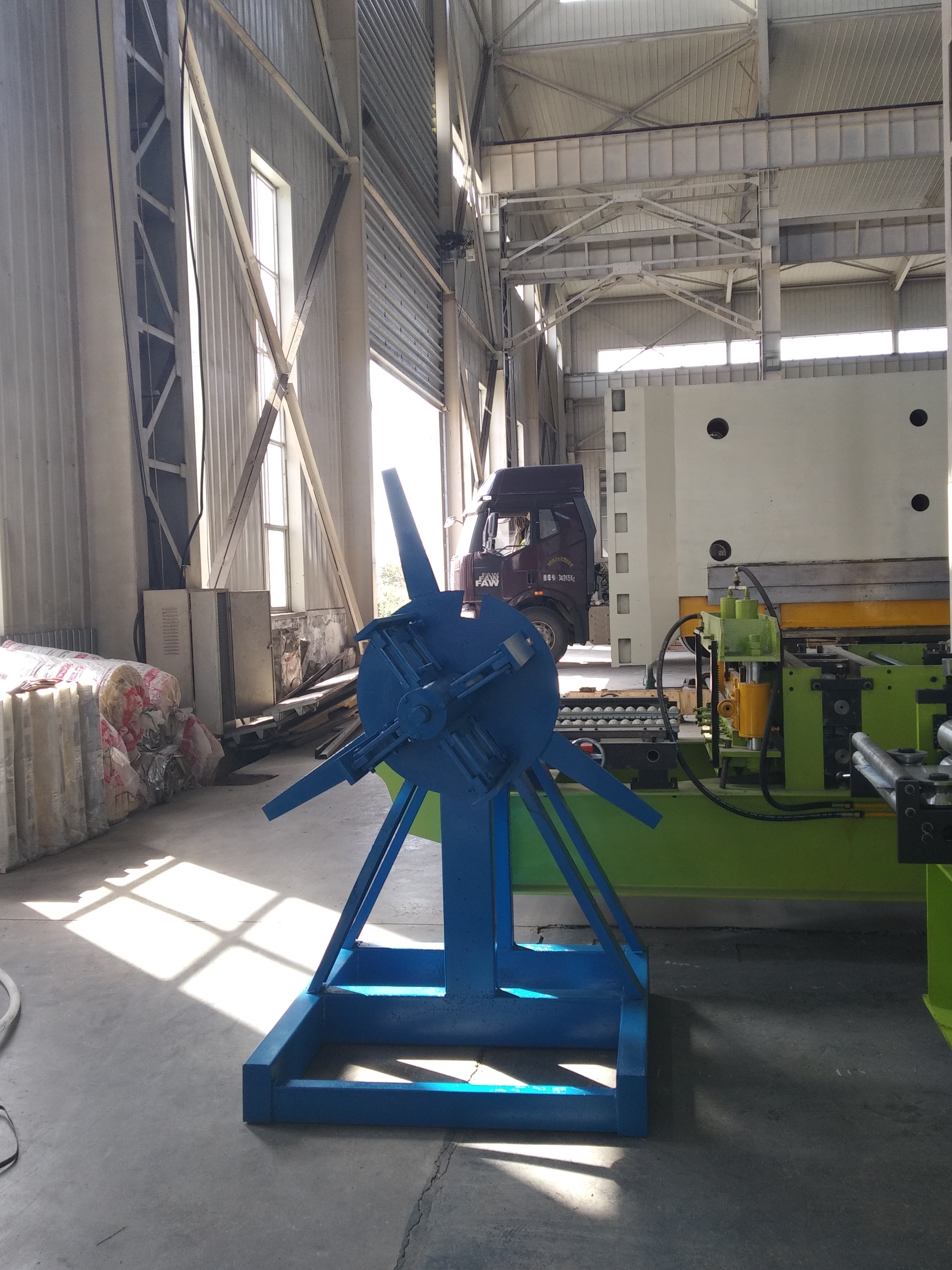

2.Decoiler:

   work type:passive type

   structure: steel channel for basic frame

   loading capapcity: 5 Tons

   coil inner diameter: 450-550 mm

3.Roll forming machine

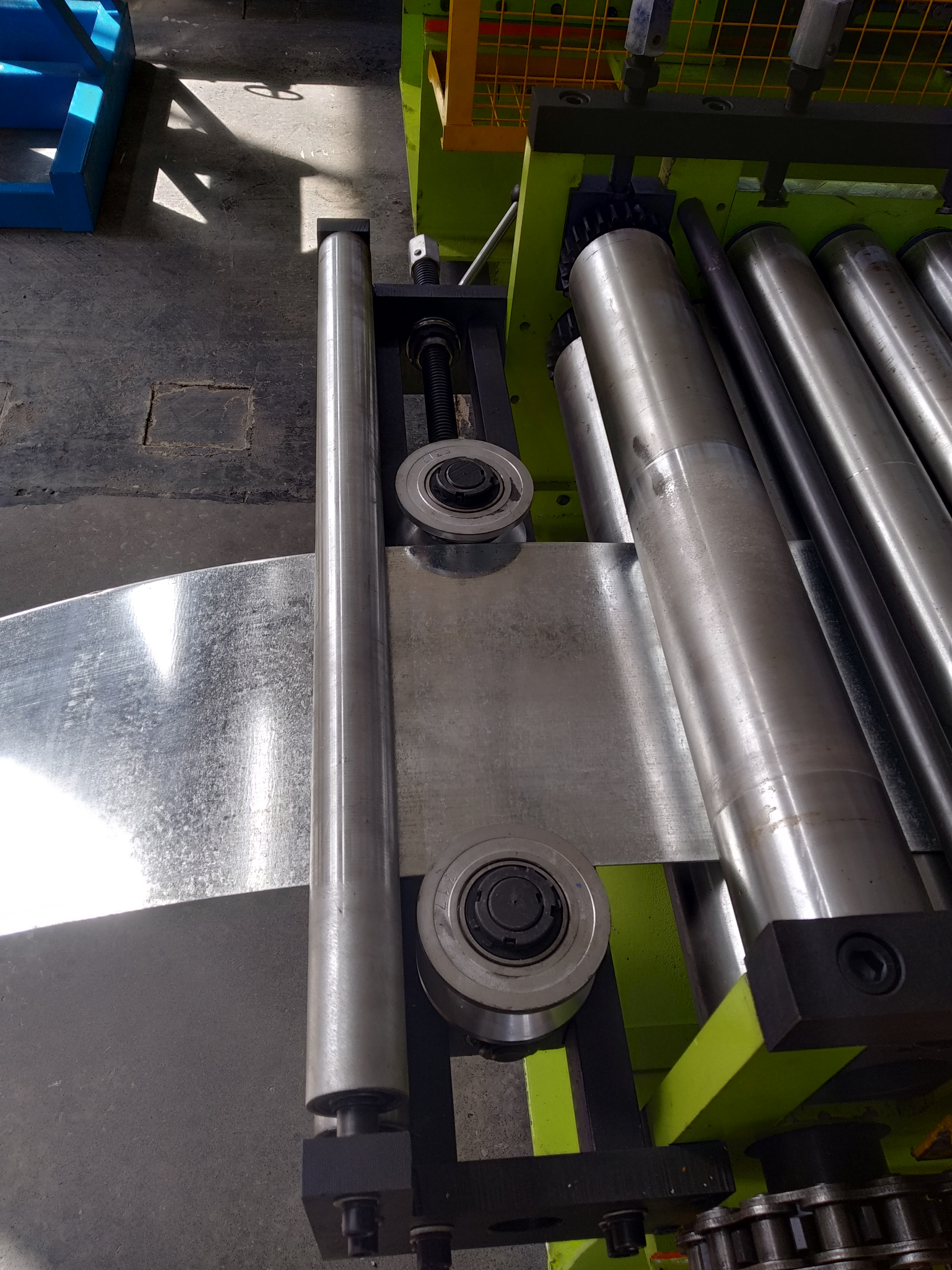

   feeding device:guiding roller and guiding shaft



 leveling device:

   upper:3 rollers

   below:4 rollers

   shaft material:45# steel

 .

  main roll former roller:

   stations:18 stations(one of station is to form side,can be adjust in 87-95ºC)

   13 stations are CZ interchangeable module.Only turn 180º to interchangeable and the size will be adjust by electric button.

    main roller material: GCr15

   auxiliary roller material:Cr12

 roller shaft:

   Motor drive roller shaft material: 40 Cr

   Other roller shaft material:45# steel

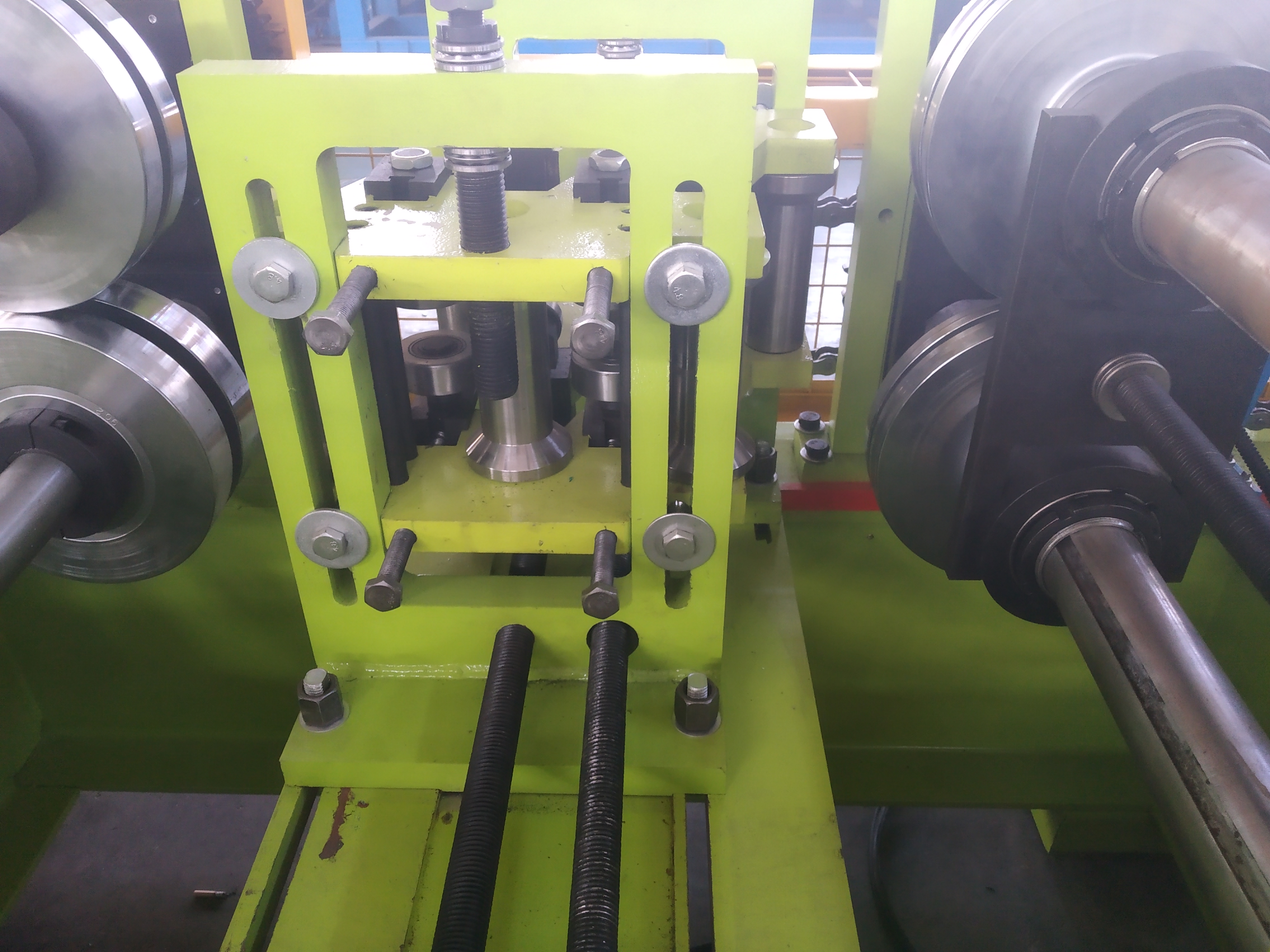

 press rib device

   when you don't want to press a rib, you can adjust the interval between the two rollers manually.



  straightening:



   there are two straightening unit,one of has ten rollers on the two shaft used for C/Z and another has four rollers on the two shaft.

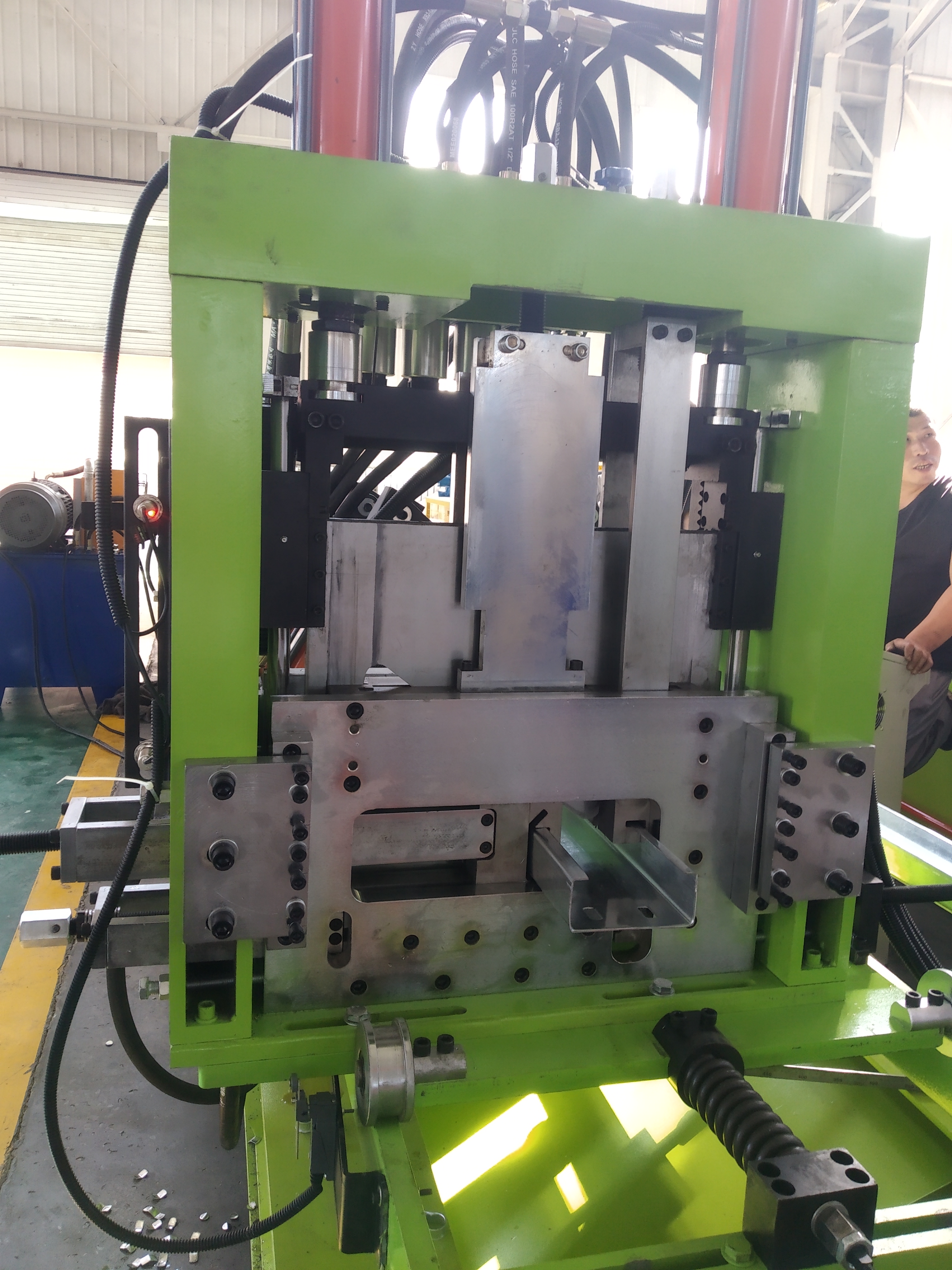

punching device:

    After forming,punching the single hole and double hole.

   Circle hole:Φ14mm andΦ16mm
   Ellipse hole:28×16mm and 28×14mm choose



  cutting system

     unlimited cutting,no needed to change cutter and change size manually.



     cutter material:Cr12



4.Hydraulic system:

   power:22 KW
   cubage:500 L

   cutting length tolerance: ±1mm/3m



5.Production collect table



   length:3 m per set
