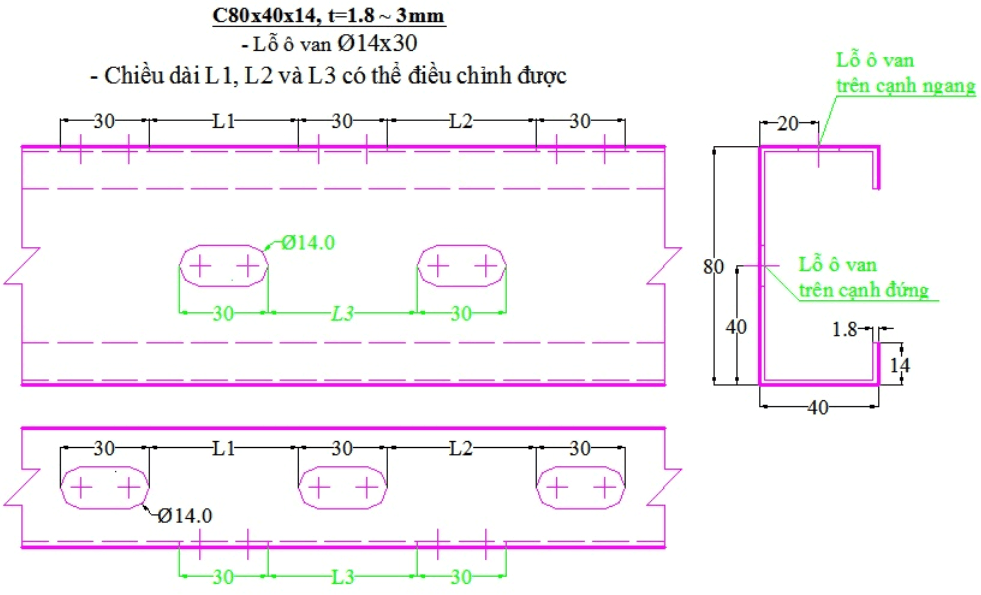

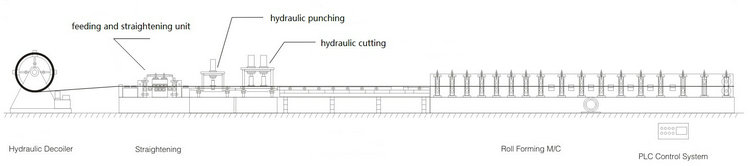

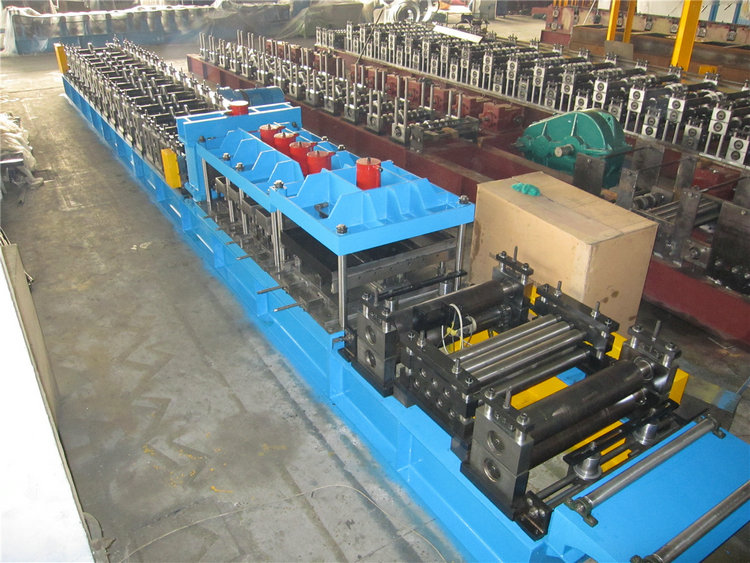

The C purlin roll forming machine can produce a variety of C purlins. The machine mainly consists of passive decoiler, leveling device, punching device, cutting device after forming, hydraulic station, computer control system and so on. C purlins can be used as the main force structure of large and medium industrial civil buildings.
The mold used for the C purlin roll forming machine requires an upper mold and six lower molds of the same size. The upper mold and the lower mold are installed first. The lower mold is directly mounted on the hexagonal wheel table, and the upper mold is installed on the bottom surface of the slide. Upper and place a pad of appropriate thickness to ensure that after the upper and lower molds close together, the gap around the four is even, and the distance between the upper and lower molds is equal to the thickness of the desired blank. Then the above model shall prevail. The workbench is indexed, and the rest of the five lower molds are installed. After all the upper and lower molds are installed, the car can be pressed.
The improvement process is completed in three steps:
1.The length measuring device and the hydraulic shearing device are added. When the pressing length reaches the set length, the hydraulic shearing device acts to automatically cut the profile.
