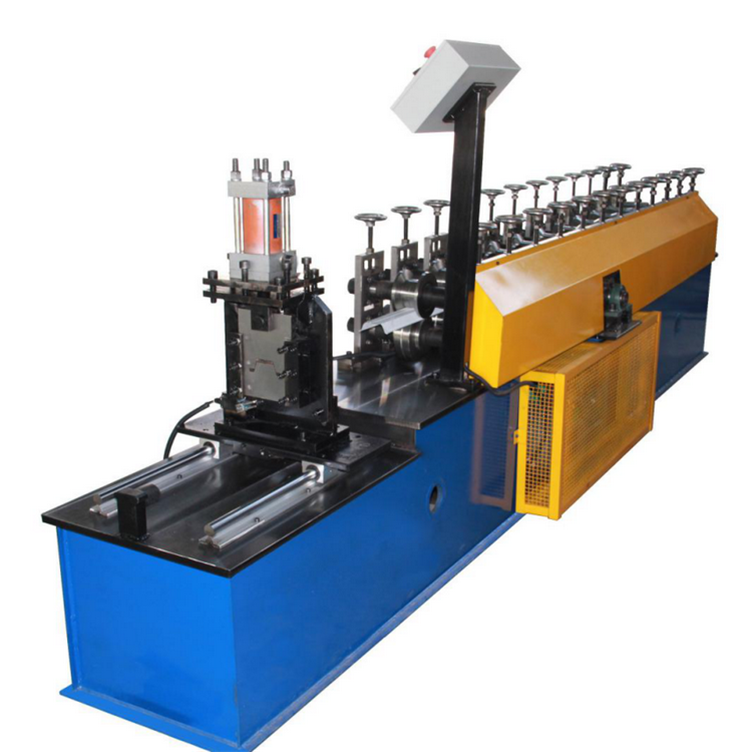

Furring Channel Roll Forming Machine
Features:

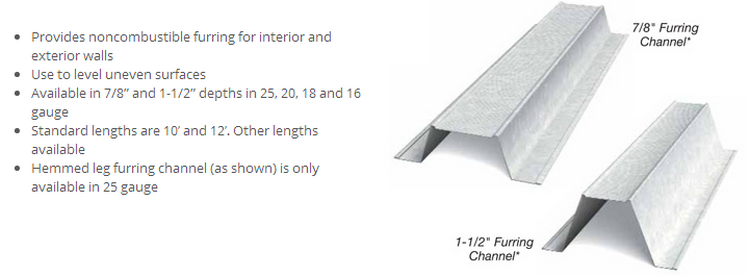

Furring channel roll forming machine is a high efficiency production line for various sizes of furring channels for Suspended ceiling system. Furring Channel (also known as "Hat" channel) is a cost-effective way to ensure even walls. Our simple-to-use Furring Channel installs easily with gypsum products to create level ceiling and wall systems. Protecting your interior and exterior framing members from uneven surfaces, flames, and moisture is a job best reserved for Furring Channel.
Other accessories include T grid, wall angle, C channel and U channel.
Technical parameters:
Shaft diameter: 40mm
Machine frame: Memorial arch
roller material : GCr12MoV quenching treatment 58-60°
shaft material:  45# steel with tempering
Work speed: 0-25m/min
Transport: By gear
Power of main machine: 4kw
Type of cutting and punching: Hydraulic
Cutting tolerance :±1mm
Blade and punching material GCr12MoV quenching treatment 58-60°
