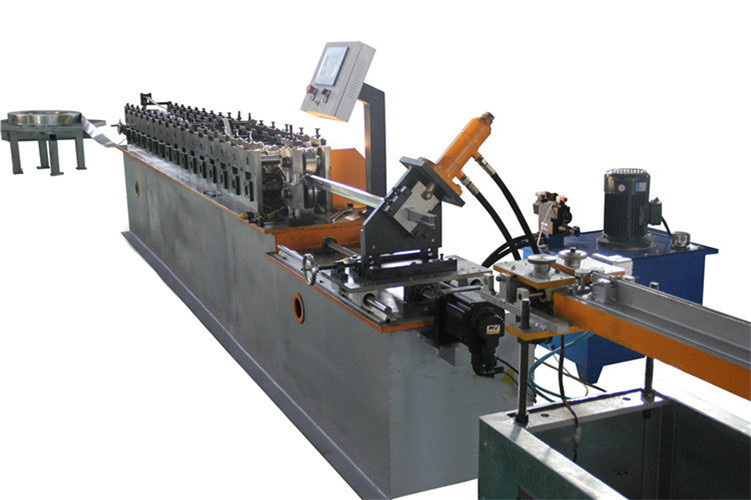

ceiling t grid roll forming machine

Features:
The suspended ceiling T grid roll forming machine is used to support the ceiling tile. Suspended ceiling system includes main tee, cross tee and wall angle. The T grid is a technical profile for supporting suspended ceiling panels (T-grid suspended ceiling), usually sized 60x60cm and 60x120cm. This highly technical system consists of three different profiles with length 600, 1200 (cross tees) and 3600mm (main runner).It is the economical framing suspension grid system used with ceiling tile, like metal board, gypsum tiles, and mineral fiber board.Mostly applied in the public buildings such as office, hospital, classroom, airport and so on.

Main T: Hydraulic automatic punching and cutting machine linked with main forming machine, punching and cutting automatically. Two heads and middle holes are punched and cut-off at the same time after forming. The dimensions of finished products are top-grade, and the product length and hole distance accurately. The products length: 3.6M(12feet). Imperial system or metric system is optional.
Cross T: Two heads and middle hole are punched and cut-off at the same time after forming. The dimensions of finished products are top-grade, and the product length and hole distance accurately. The products length: 0.6M (2feet) or 1.2M (4feet). Imperial system or metric system is optional.

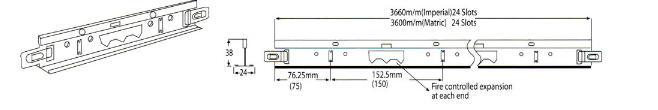

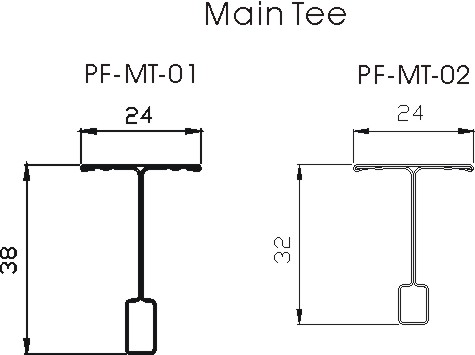

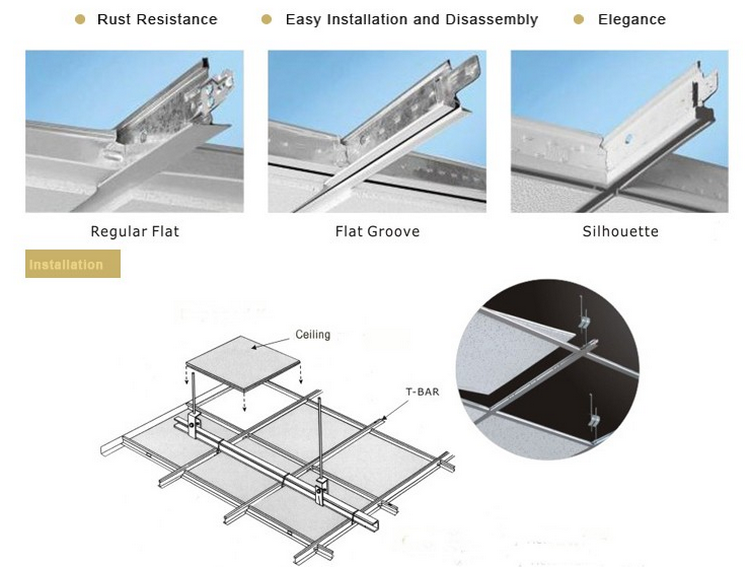

There are some drawings for reference

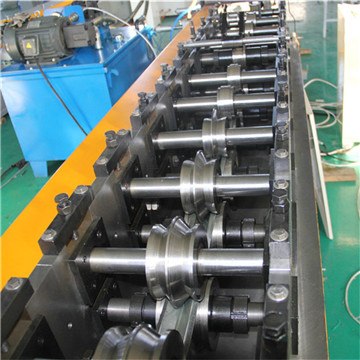

Some advantages of Ceiling t grid roll forming machine

●Full automatic production to make the T gird shape. For the finished ending making and punching hole, needs another punching machine.
●Hydraulic punching for anti slip holes and the company logo if you need.
●Hydraulic shearing and servo flying system.
●The product punching die and cutting off blade, we use SKD11 as material, long time to use.
●PLC control system, Human-Machine interface, portable and touch screen. The brand of PLC is Panasonic.

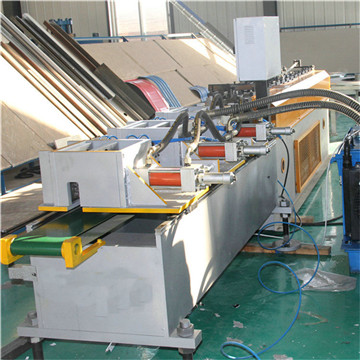

we offer fully automatic t grid roll forming machine and semi-automatic t grid roll forming machine. It depends on the product volume requirement.

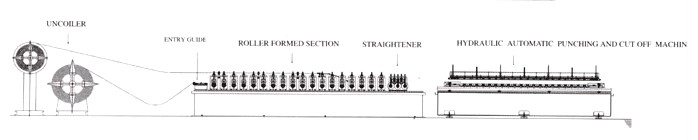

working flow of Ceiling t grid roll forming machine

Light Keel Roll Forming Machine

ceiling t grid roll forming machine
