guide rail roll forming machine
U Shape Guide Rail Roll Forming Machine can produce many types of roller shutter guide rails, usually C shape and U shape. The thickness is 0.8-2.0mm. It is an important part in shutter door system. Usually customers who buy roller shutter slats forming machine will also buy this U Shape Guide Rail Roll Forming Machine
the basic Information of guide rail roll forming machine
|
name |
guide rail roll forming machine |
|
Processing material |
galvanized plate, or aluminium plate |
|
Material thickness |
0.8---2.0 mm |
|
Material hardness |
550 mpa---350 mpa |
|
Material width |
200mm(according to the profile) |
|
Formed width |
101.6mm (according to the profile) |
|
Forming speed |
12m/min |
|
Working speed |
8m/min |
|
Voltage |
380V 50HZ 3Phase |
|
Roller fixer |
Guide column |
|
Frame |
400 H steel |
|
Drive mode |
chain |
|
Material of rollers |
45# steel, surface hard chromium plating. |
|
Material of shafts |
45# steel with tempering |
|
Diameter of shafts |
φ70mm |
|
Number of rollers |
20 rollers |
|
Main power |
5.5kw |
|
Hydraulic power |
3kw |

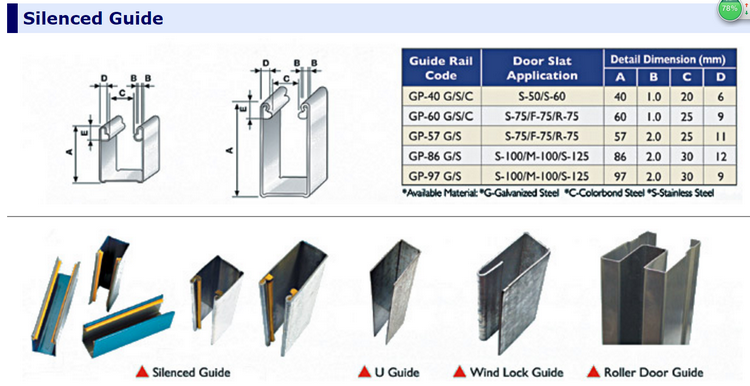

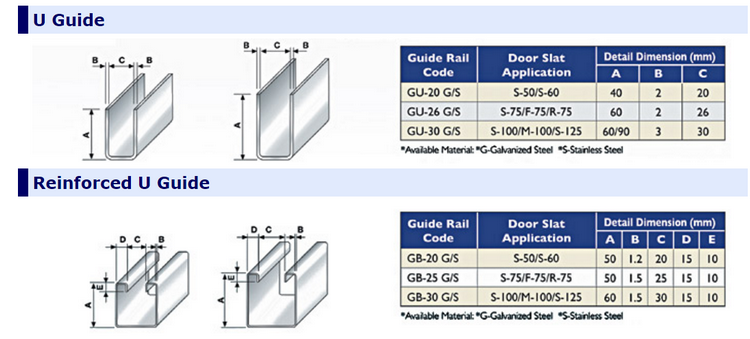

some other drawings of guide rail roll forming machine
