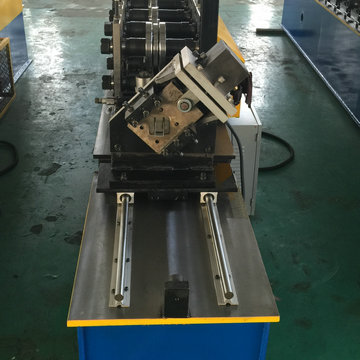

U Shape door guide rails roll forming machine

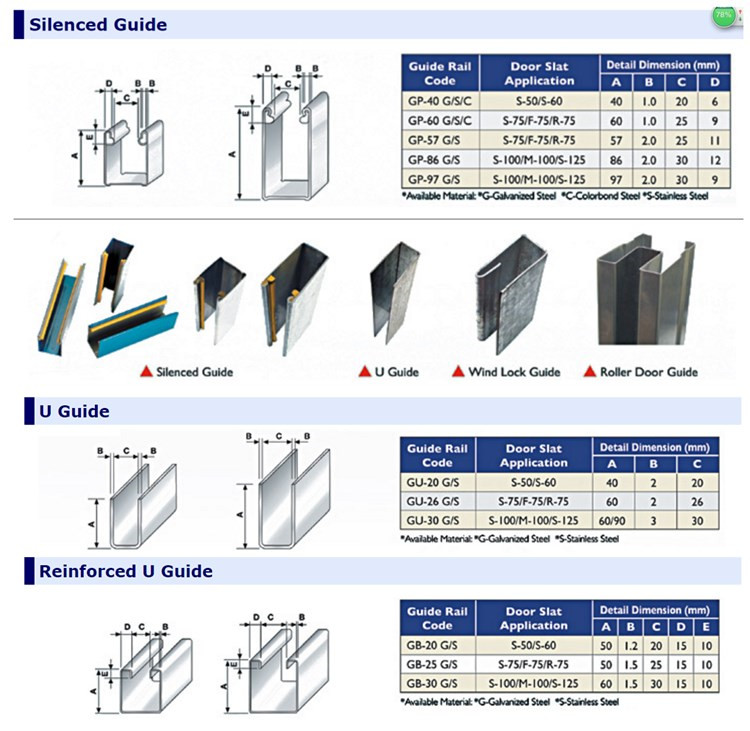

U Shape Guide Rail Roll Forming Machine can produce many types of roller shutter guide rails, usually C shape and U shape. The thickness is 0.8-2.0mm. It is an important part in shutter door system. Usually customers who buy roller shutter slats forming machine will also buy this U Shape Guide Rail Roll Forming Machine
Guide Rail Roll Forming Machine

the basic Information of guide rail roll forming machine

name	guide rail roll forming machine
Processing material	galvanized plate, or aluminium plate
Material thickness	0.8---2.0 mm
Material hardness	550 mpa---350 mpa
Material width	200mm(according to the profile)
Formed width	101.6mm (according to the profile)
Forming speed	12m/min
Working speed	8m/min
Voltage	380V 50HZ 3Phase
Roller fixer	Guide column
Frame	400 H steel
Drive mode	chain
Material of rollers	45# steel, surface hard chromium plating.
Material of shafts	45# steel with tempering
Diameter of shafts	φ70mm
Number of rollers	20 rollers
Main power	5.5kw
Hydraulic power	3kw

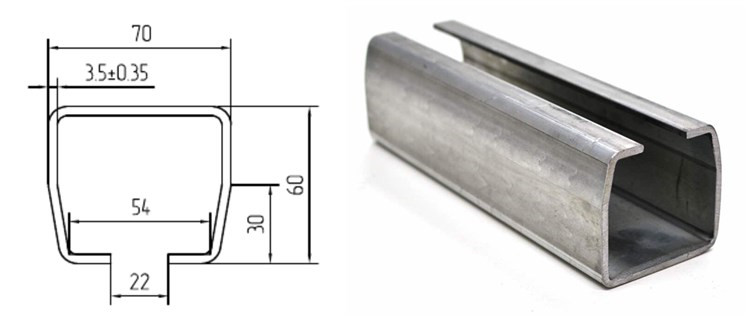

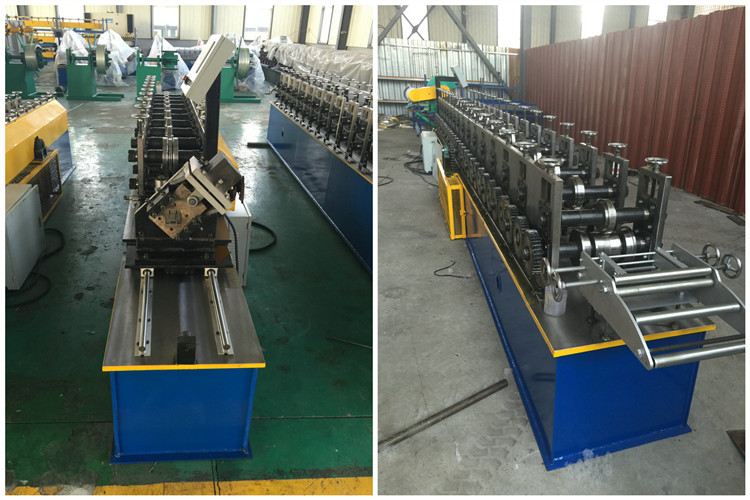

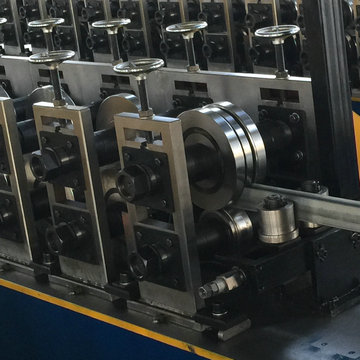

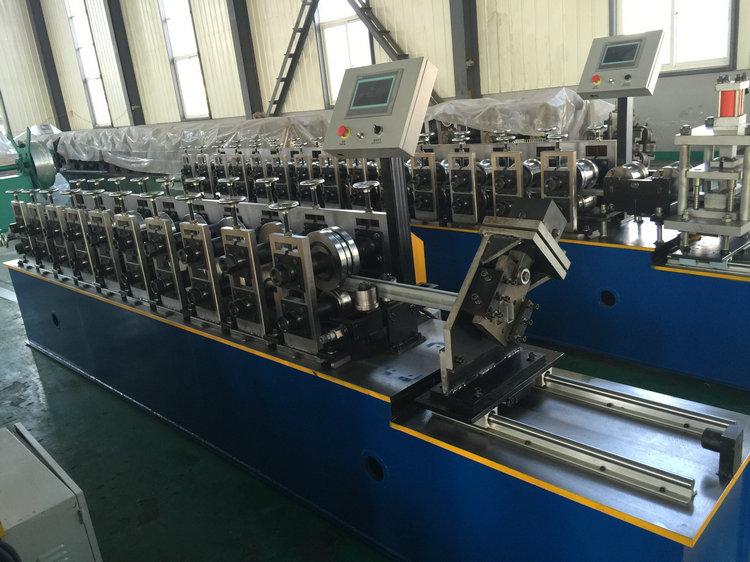

some other drawings of guide rail roll forming machine
