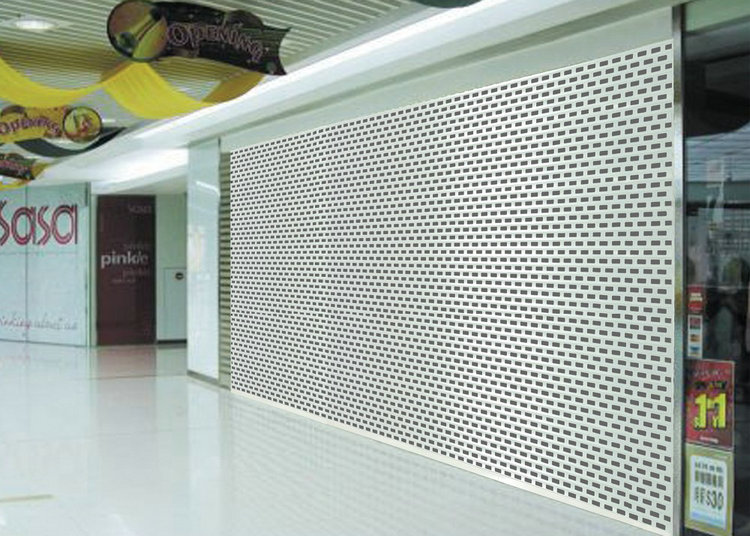

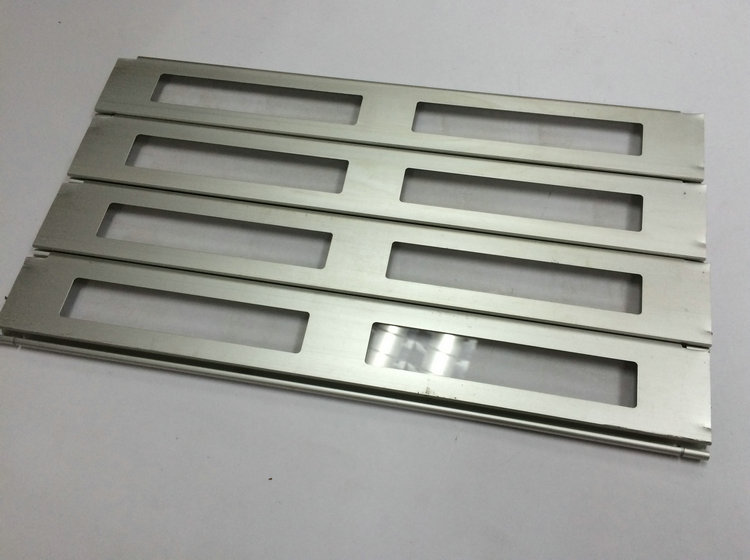

Fenestrated roller shutter slats roll forming machine is widely used in shopping centers.The fenestrated roller shutter slats come in a range of slat sizes including 50mm slat, 75mm slat or 100mm slat. It comes with a choice of solid, slotting or perforations depending on requirements.The fenestrated roller shutter slats enable clear through vision of merchandise and natural light transmission whilst providing high security and protection from the elements, vermin and dust.

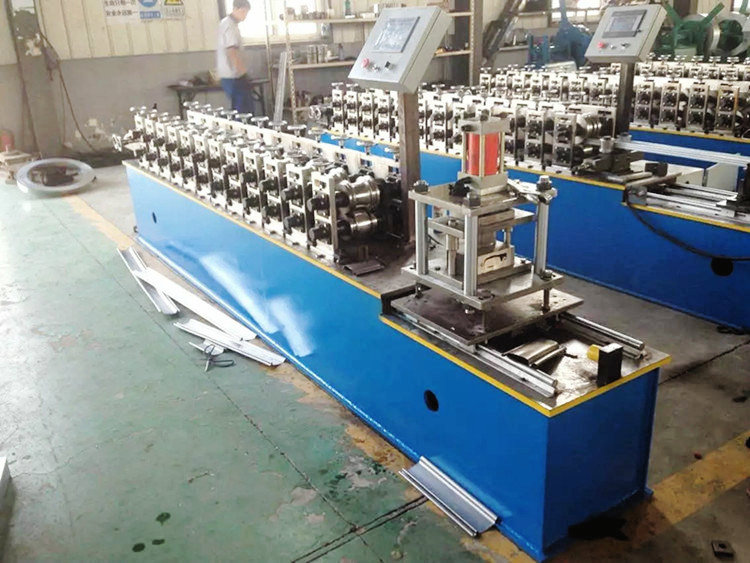

Production Line of roller shutter slats roll forming machine

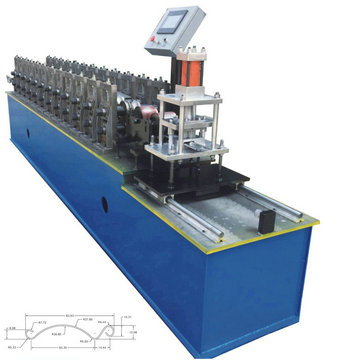

roller shutter slats roll forming machine

Specifications of roller shutter slats roll forming machine

The material of roller shutter slats roll forming machine can be colored sheet coil with thickness 0.8-1.2mm. It consisted of decoiler, main forming machine, hydraulic station PLC control and runout table. It adopts punching holes and cutting at the same time.

Decoiler	Passive uncoil pulled by roll forming system. a. Coil inner diameter: 450-550mm b. Coil max width: 300mm c. Max carrying capacity: 3000kg

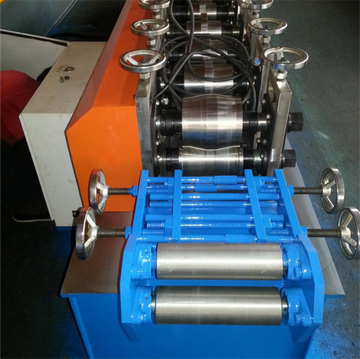

Roll forming machine	a. Number of forming steps: 12 stations b. Shaft material: 45# steel with quenched treatment, precision machined, The diameter: 50mm c. Roller material: bearing steel with quenched treatment d. Transport: by gear e. Forming speed: 15-20m/min f. Motor:4kw G. Voltage:380v, 50Hz,3 phase h. Structure:Memorial arch frame
Shearing and punching system	a.The material of blade: Cr12Mov, Hardening HRC 58-62℃ b.Length Tolerance:3m±1.0mm C. Power supply: Hydraulic station
Hydraulic station	a. Hydraulic motor Power:4kw b.Hydraulic oil: 46# c.Hydraulic pressure : 12Mpa
PLC station	PLC control system, we will take Delta . You can set the cutting length in the PLC.

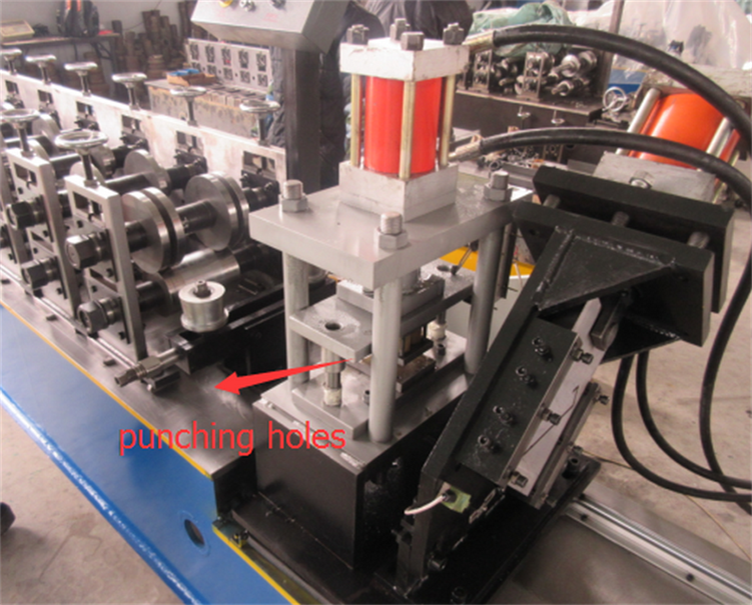

This punching device is flexible, when you don't need the holes, just remove the punch mould.
