Tile Making Corrugated Roll Forming

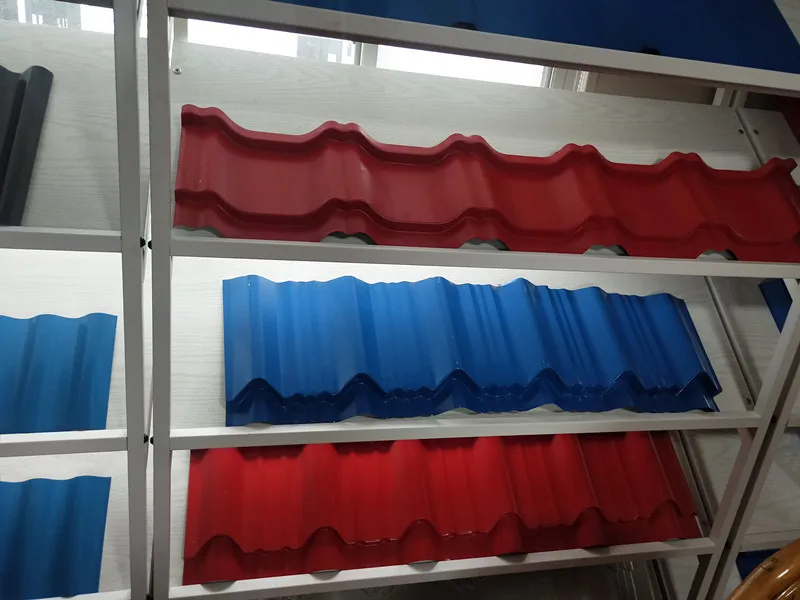

Roof wall panel metal sheet tile making corrugated roll forming machine is uesd for making GI or PPGI roof/ wall tile.The corrugated sheet is light weight, high strength, good wateproof, easy to install, can be widly use in villa roofs, tourists attractions and other budilings.
What's the dimension of the corrugated sheet?
The feeding width usually have 914mm / 1000mm / 1200mm / 1250mm / 1450mm kinds.
The output width depends on the profile drawing which is often provide by client or we can recommend for you.
We can take one model profile size for example:
The coil input width is 1200 mm and output width is 988mm.
The wave height is 18mm, wave distance is 76mm.
This drawing is done according to client's request, then we make the machine follow this drawing.
Packing list:
| Decoiler | 1 | Manual |
| Main roll former | 1 | |
| Cutting system | 1 | |
| PLC control system | 1 | |
| Hydraulic pump station | 1 | |
| Run out table | 1 | 3m length |
Main roll former
Main motor power: 5.5 KW
Roller material:45# steel with chormed treatment.
Roller shaft material: 45# steel with quenched treatment.
Work speed:8-12 m/min
Roller station:17-19 mm
Length of the part: 7500*1650*1500mm
Structure: Middle plate welded frame structure
Frame: 350 H steel with diagonal bracing
Drive mode: By chains drive methord
