Single Layer Roll Forming Machine
Single Layer Roll Forming Machine

roof profile roll forming machine

1

India standard roof profile roll forming machine

The roof profile roll forming machine is mainly to produce the roof profile sheet,
the roof profile sheet is one of the best-selling product in India.
The sheet is widely used for house, workshop, fence and other constructions.
There are three model types for roof profiles, and have big quantity request in India local market.

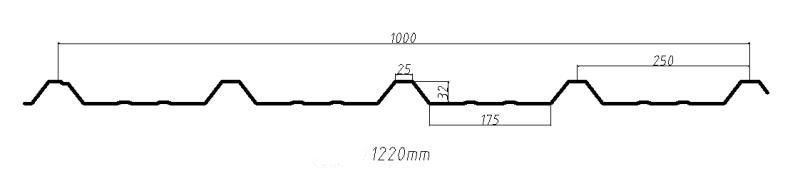

Here we shall see the profile size first and you will understand well that what does machine produce.


You can see bothe the two profiles with the groove on the wave.
The groove can prevent the water leak, and let the water volatilize easily.

To protect the sheet without rusty.

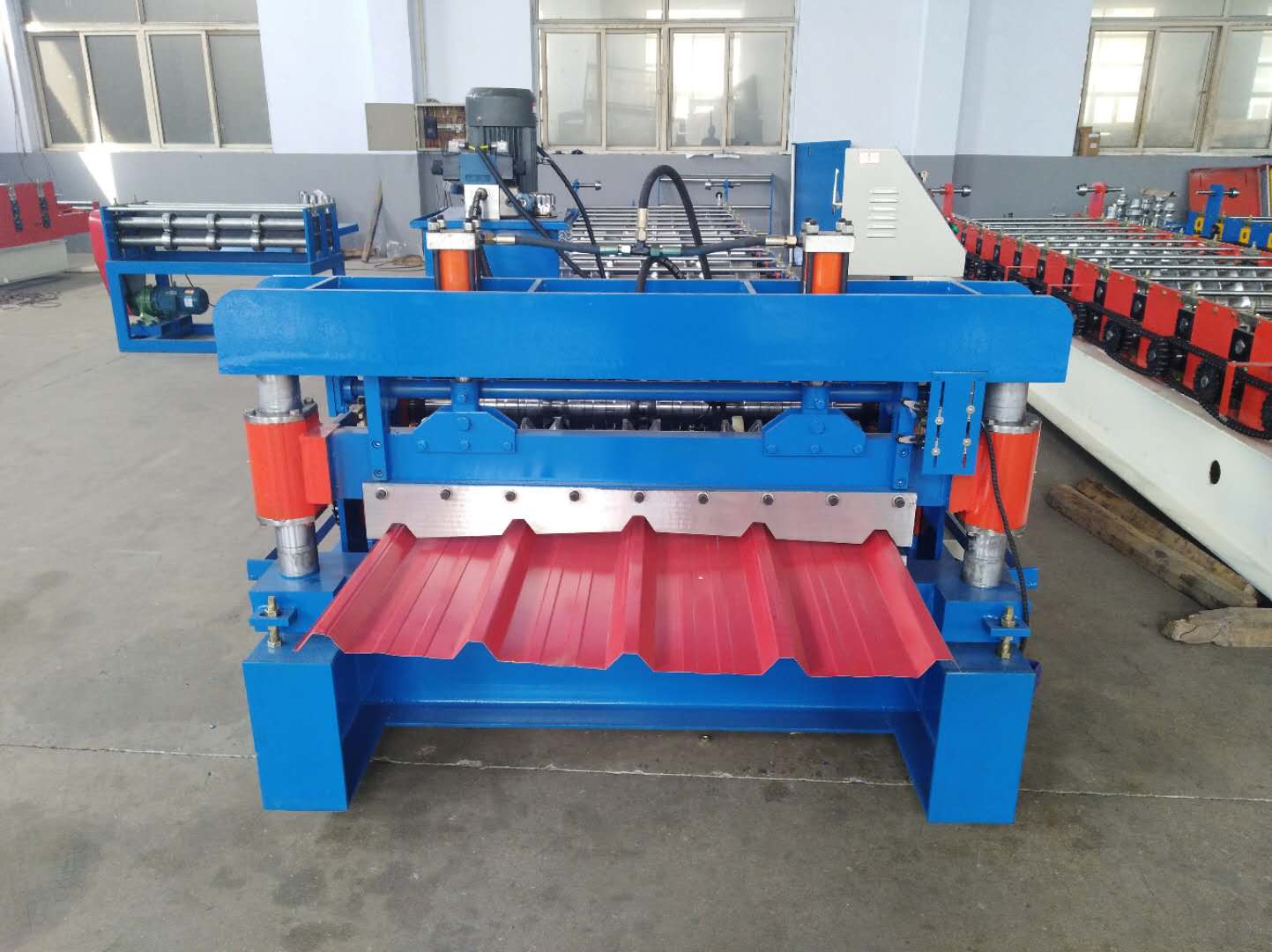

Here we see one of the roof profile roll forming machine picture first:




The machine testing running video as below:
https://youtu.be/gTElpRwRs1Y

The advantage of the roof profile roll forming machine:

1. we adopt the seamless pipe used for spacers.

2. Both roller and spacer are chromed treatment.

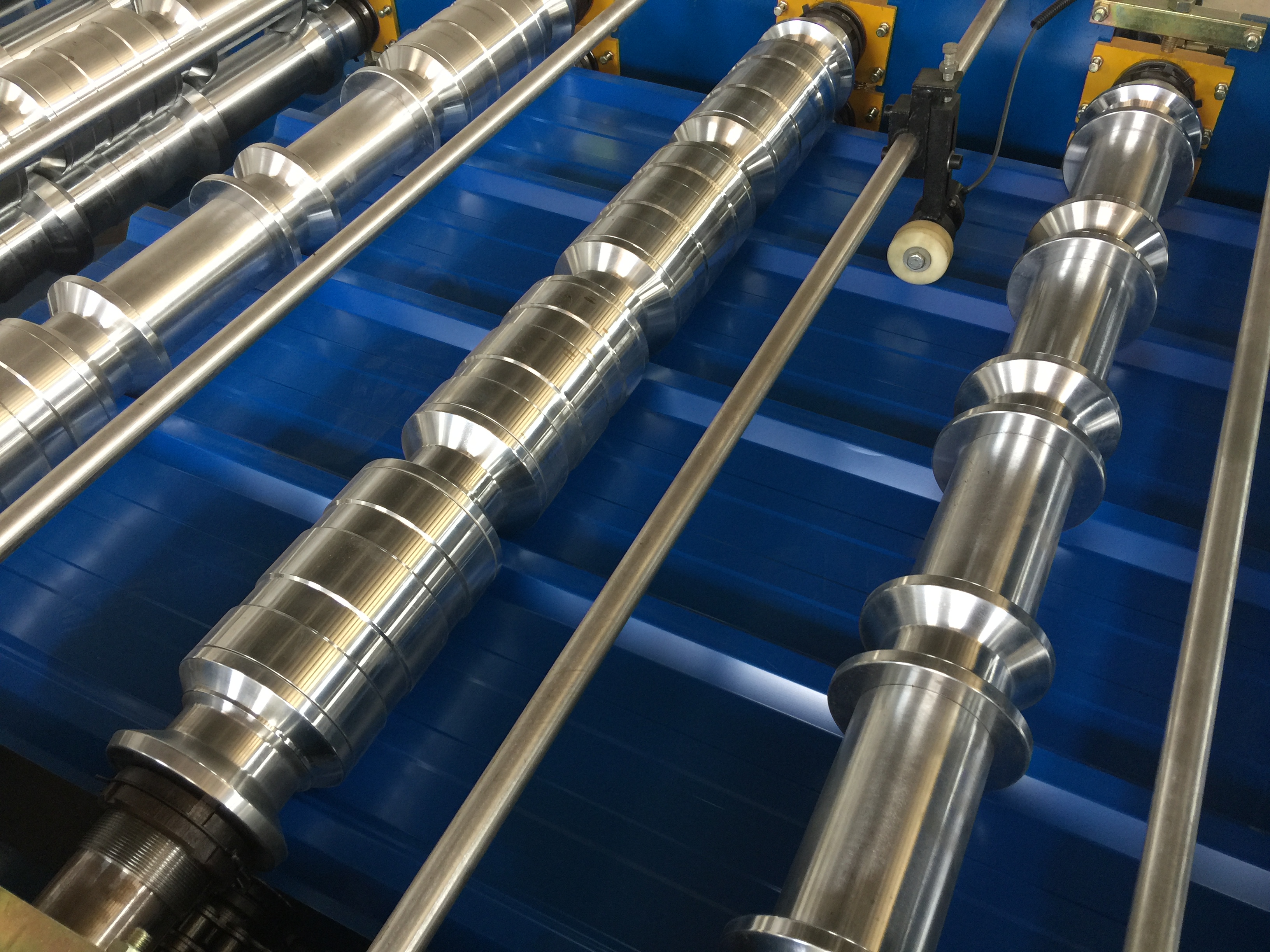

Please see the below pictures you will know how it is.

Chromed treatment can imporve the hardness and anti-corrision, the surface of the rollers are more smoothly to protect the painting on sheets.




For the control system of the roof profile machine, all are branded.
1. Delta PLC and frequency

2. Schneider low pressure electrical parts

3. Omron encoder

The specification of the roof profile machine
1. Feeding width: 1220mm

2. Effective width: 1000mm

3. Rolling station: 17stations

4. Shaft diameter: 80mm

5. Driving motor power: 5.5kw

6. Hydraulic motor power: 3kw

7. Roller treatment: chromed

8. Transmission: by chains

9. basic frame: with diagonal bracing inside

10. structure: carbon steel welded

11. work speed: 0-15m/min

12. Voltage: (415-440)V-50HZ-3Phase


Service:

1. We have showroom in Mumbai of India and the service will be free in local of India
2. The customer will arrange the transportation and accommodation for technician if the work can not finish one day.


Contact:

contact person: June Wang
whatsapp/wechat: 008615127778288
