metal roof tile making machine

Features:

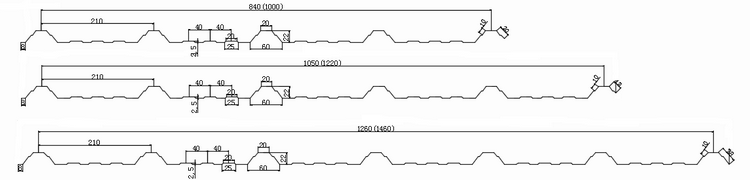

Our metal roof tile making machine can produce different shapes of metal roof tile within thickness 0.3-0.8mm,such as trapezoidal shape and corrugated shape. Metal roof tiles are the new substitutes for traditional clayey, concrete tiles because of low cost, short building period, re-cycle use, and elegant appearance.

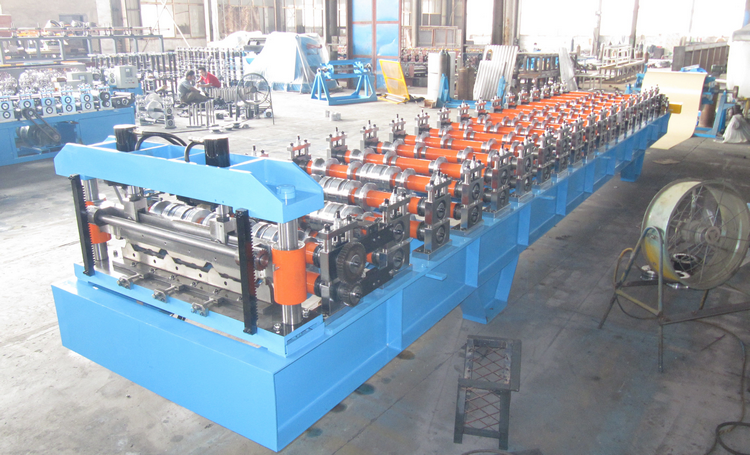

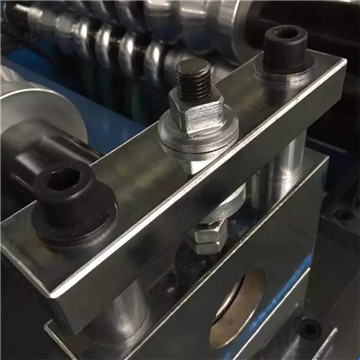

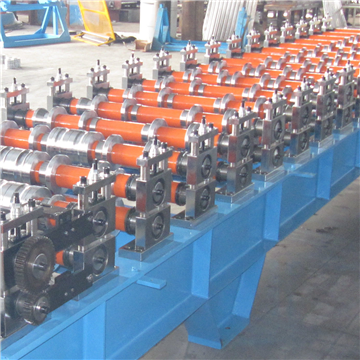

The complete metal roof tile making machine line includes decoiler, main forming machine, computer controlling system, hydraulic station and run out table. It adopts memorial arch structure and separated forming method.One station can only has several rollers,one station only forms one angle. Compared with whole forming method, it needs more forming stations, but the finished roof sheets are more beautiful. This machine can produce roof sheets with three widths. No need to change rollers, just adjust the feeding part.
If you want to produce more than one sheets on one machine, our double layer roll forming machine is a good option.

Technical Parameters:
