Heavy duty strut channel roll forming machine

The strut channel is the main part of the solar support frame, it's used for supporting the solar panel.
It's very popular in the new photovoltaic energy field.

My WhatsApp/ wechat: +8618733770188

E-mail: [email protected]

The model size for strut channel roll forming machine
For the strut channel, there are some model sizes in actual installation.

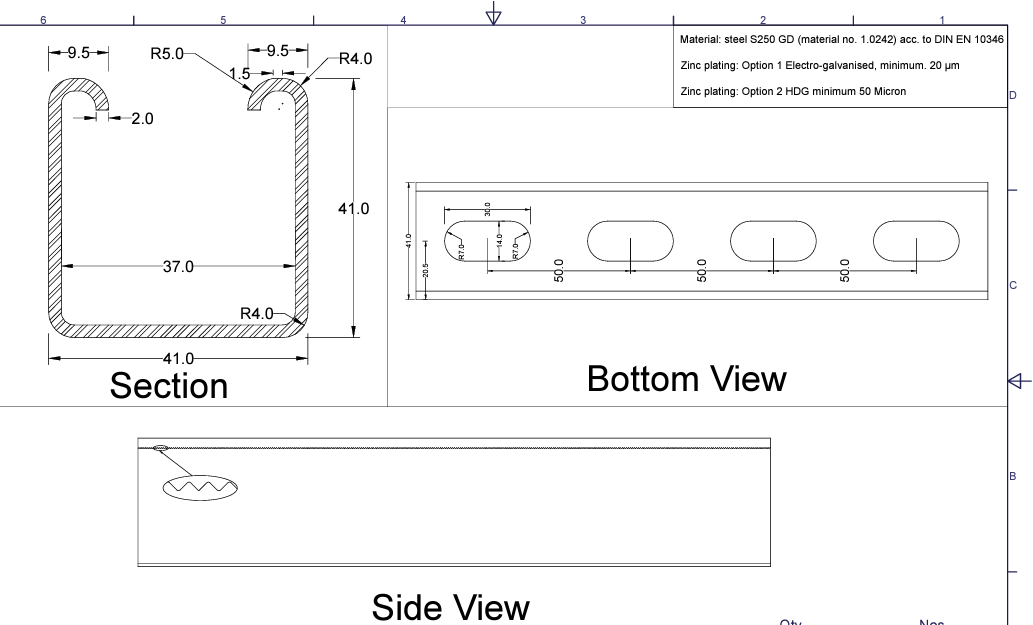

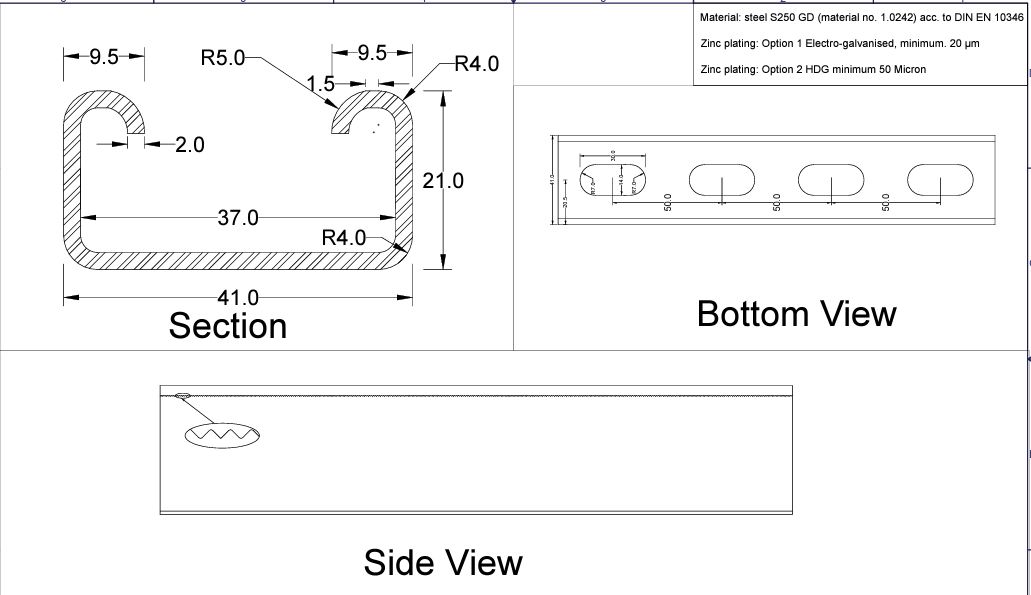

The most regular sizes are 41*21mm and 41*41mm

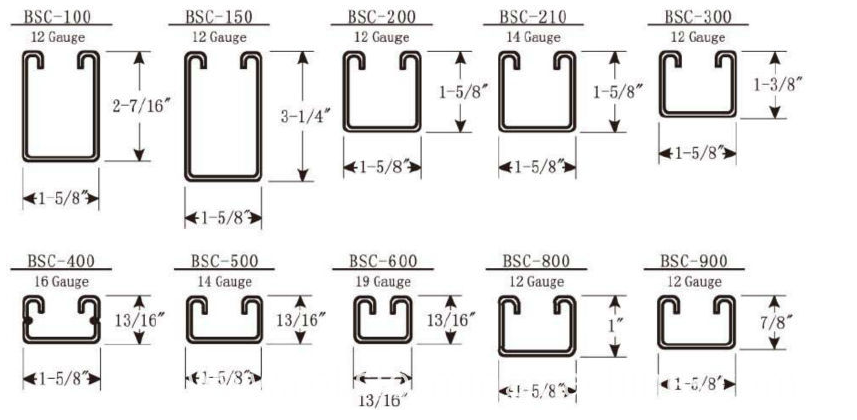

Besides, there are some other model size as below:

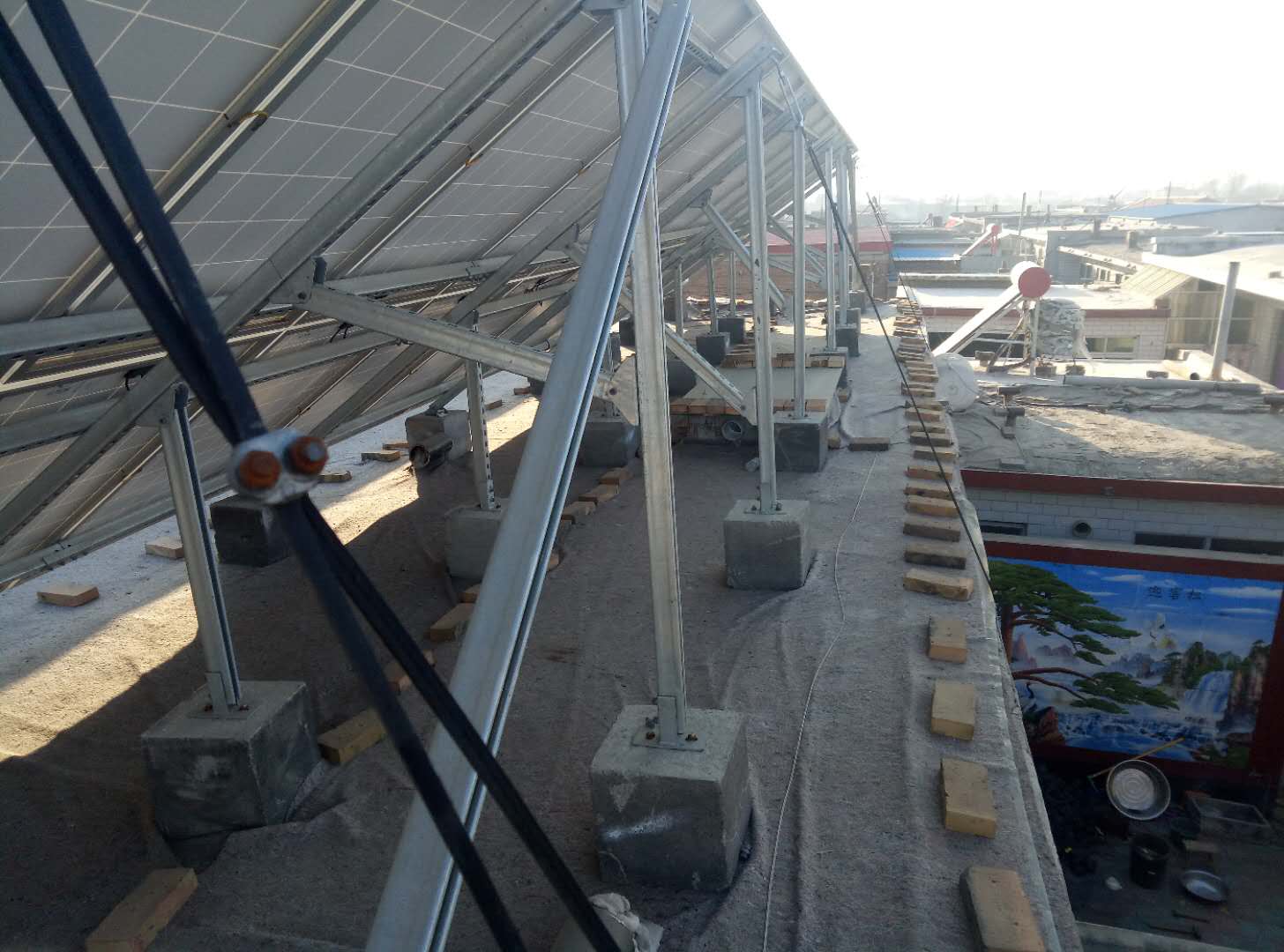

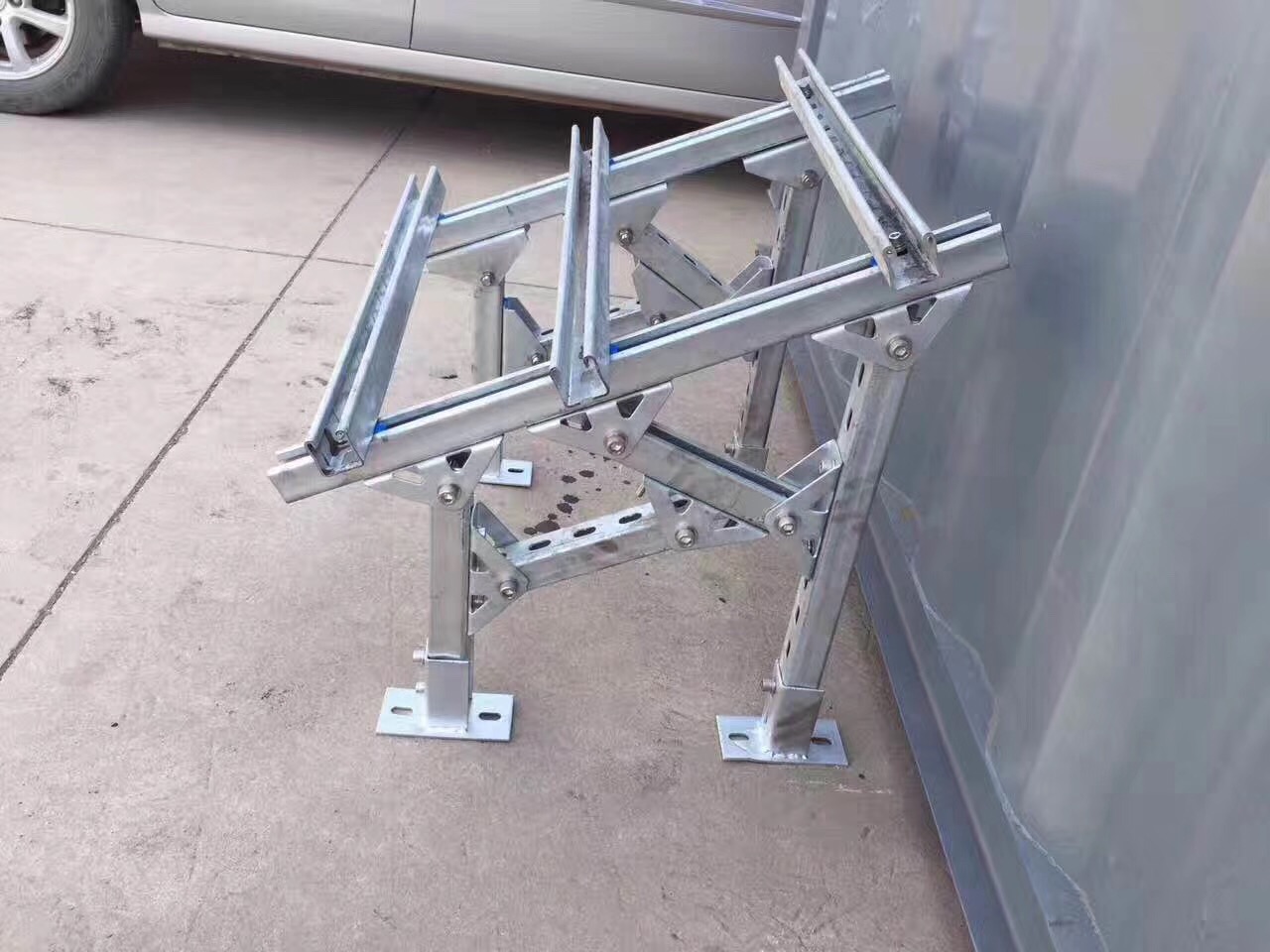

The usage of the strut channe

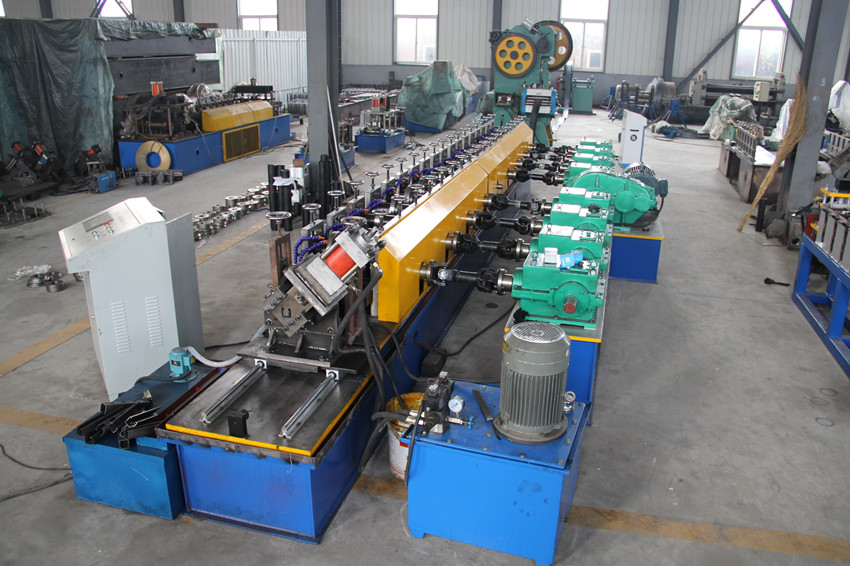

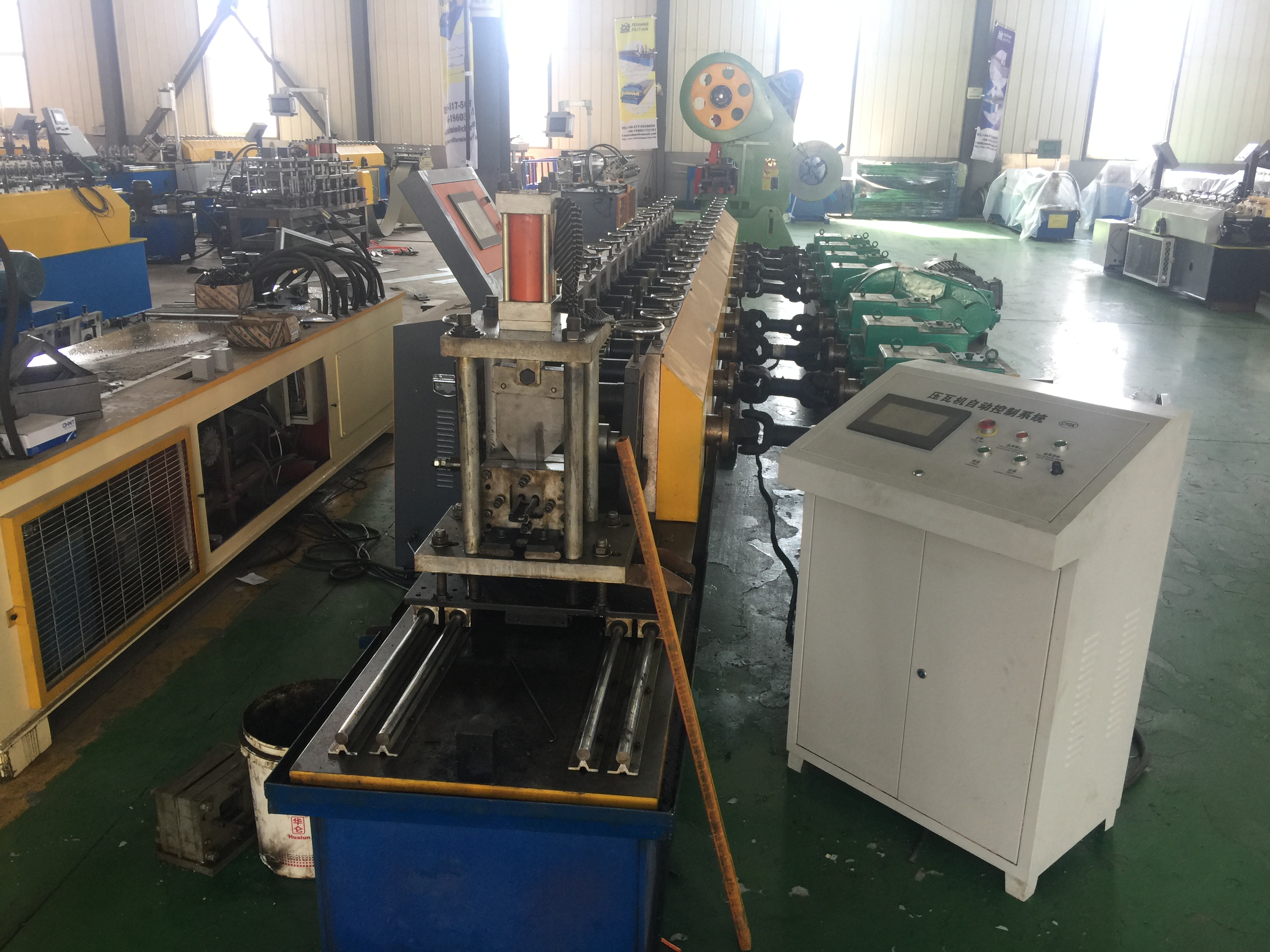

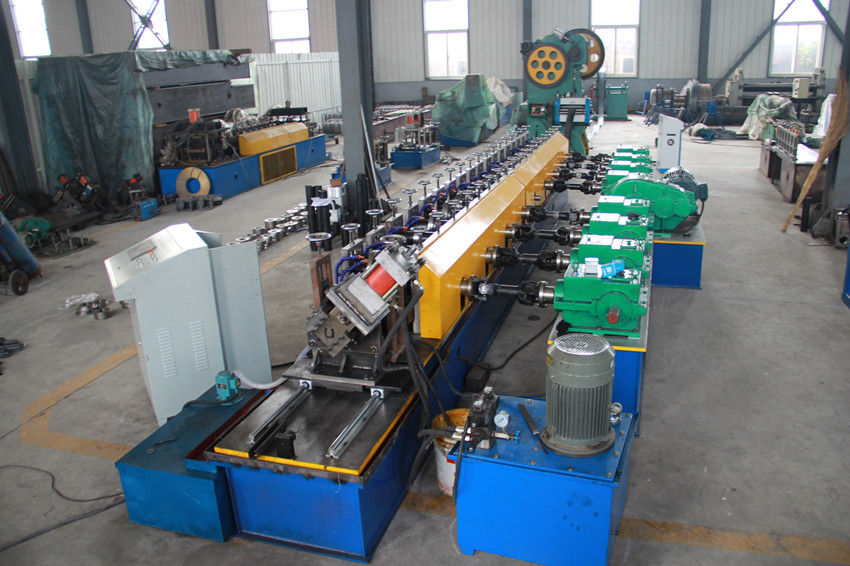

The roll forming machine for strut channel, please see the below picture
The feature of the strur channel roll forming machine:
1. The machine is adjustable to make different sizes
2. Gear box transmission is more powerful and long life time
3. The forming system is equipped with the water cooling system,
    it can ensure the machine working continuously
4. We adopt the vertical arch frame structure, it is more easy to change the sizes




The main elements of the solar panel strut channel frame roll forming machine
1. 3 ton manual vertical decoiler one set
2. feeding&leveling device one set
3. punching machine with mold one set
4. Roll forming system one set
5. Hydraulic cutting device with cutters
6. PLC control system
7. product receiving table one set

The specification of the strut channel roll forming machine

1. Raw material thickness: 1.5mm-2.5mm
2. Rolling stations: 21 stations
3. Shaft diameter size: 60mm
4. Shaft material: 40Cr tempering treatment
5. Forming speed: 15m/min
6. Driving motor power: 18.5kw
7. Hydraulic motor power: 7.5kw
8. Punching pressure: 80 tons

Our service:

1. We will provide you the service for free in India
2. Technical support for the whole life
3. We can give you the service within two days, our technicians are working in Mumbai of India
