High speed Metal Stud Track Roll Forming Machine

The high metal stud track roll forming machine mainly produce the C stud and U track product,
which can be used for ceiling system and partition system.
The machine is adjustable to make multi sizes, the hole punching is also available on the machine.

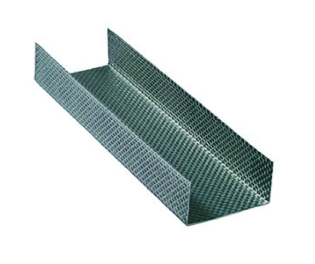

The product profile of stud and track

You can see that the product along with the knurling and ribs,
both the knurling and rib are made by the rollers embossing.
It's can improve the strength of the product and looks more pretty.


High speed Metal Stud Track Roll Forming Machine
High speed Metal Stud Track Roll Forming Machine

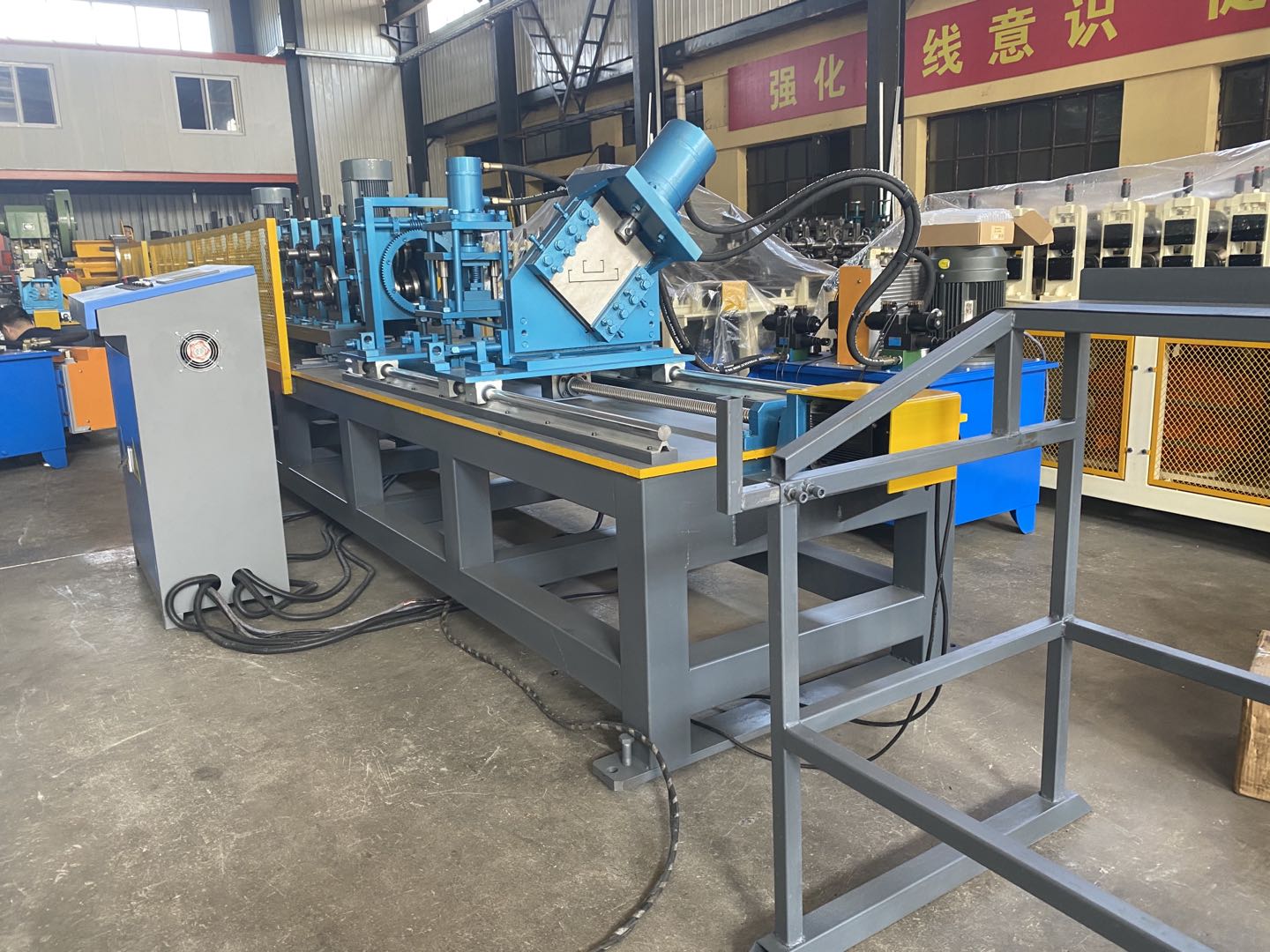

Now let's see the machine looking as below:

High speed Metal Stud Track Roll Forming Machine

The feature of stud and track roll formingmachine
1. Automatic size adjustment by PLC control

2. Flying cutting and punching on hydraulic system

3. The machine can run in a high speed, till 35m/min

4. We can equip one painting machine on the machine, to paint the date or other information.

The elements of the metal stud and track roll forming machine
1. 5 tons manual decoiler one set

2. adjustable roll forming system

3. hydraulic cutting and punching system

4. PLC control system

5. product receiving table one set

6. painting machine one set

The specification of the stud and track roll forming machine
1. product size: adjustable (according to customers' request)

2. material thickness: 0.4-0.6mm (according to customers' request)

3. Roller material: Cr12

4. Shaft material: 40Cr

5. Driving motor power: 7.5kw

6. Size adjust motor power: 3kw

7. Hydraulic motor power: 5.5kw

8. Control system: Delta brand

9. Motor brand: Siemens

10. Voltage: 380V-50HZ-3Phase or as your request.

Our service:
1. We can provide you the after sale service for free in India.
2. We can give you the service within one day if you make the call in the morning
3. Our office and showroom is located in Taloja Mumbai of India, you can see some model machines in our showroom.
